Description

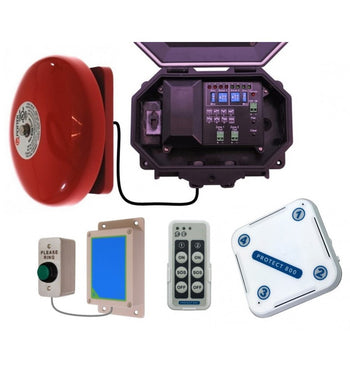

- Wireless Commercial Protect-800 Bell Kit comprising of a H/Duty Push Button, Battery Powered 800 metre Transmitter & unique Wireless Receiver (with fully adjustable output durations), a Loud Ringing Bell& an additional Chime Receiver. Ideal for all types of commercial applications.
- The duration of the Bell is fully adjustable and controlled using a special long range Remote Control. When Armed the Bell will trigger for the chosen duration when the Push Button has been pressed, you can also trigger the Bell at any time using the SOS Button on the Remote Control.
- The Internal Receiver will also chime (choice of 32 different chimes with volume control) ideal for placing into a different office or area.
Push Button:

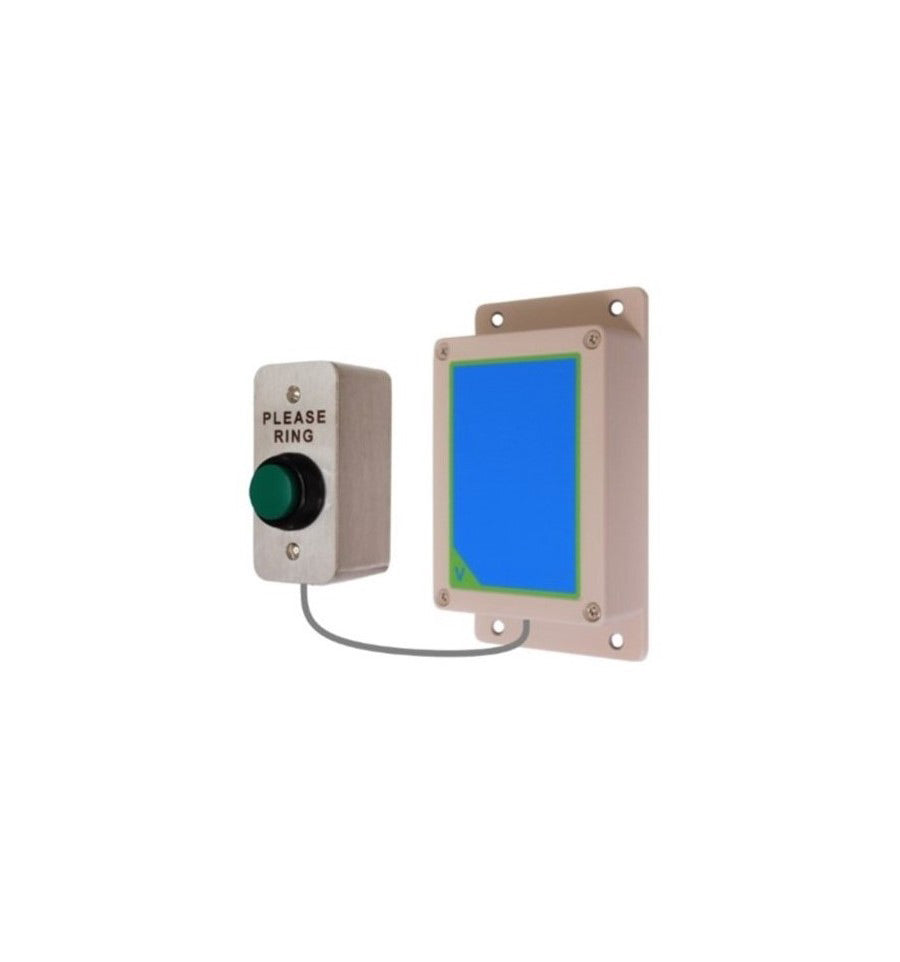

- The Heavy Duty Steel Push Button (with Please Ring embossed onto it) is connected to a Battery Powered Wireless Transmitter (which is located inside a plastic box) by 3 metres of Cable. This allows you to fit the Push Button into the most desirable location and the Transmitter into a safe location suitable for wireless Transmission.
- The Transmission range between the Transmitter & Wireless Receiver is an impressive 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.
- The Wireless Transmitters are powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications.
- Additional Push Buttons & Transmitters can be added to cover different entrances, please
How it Works:

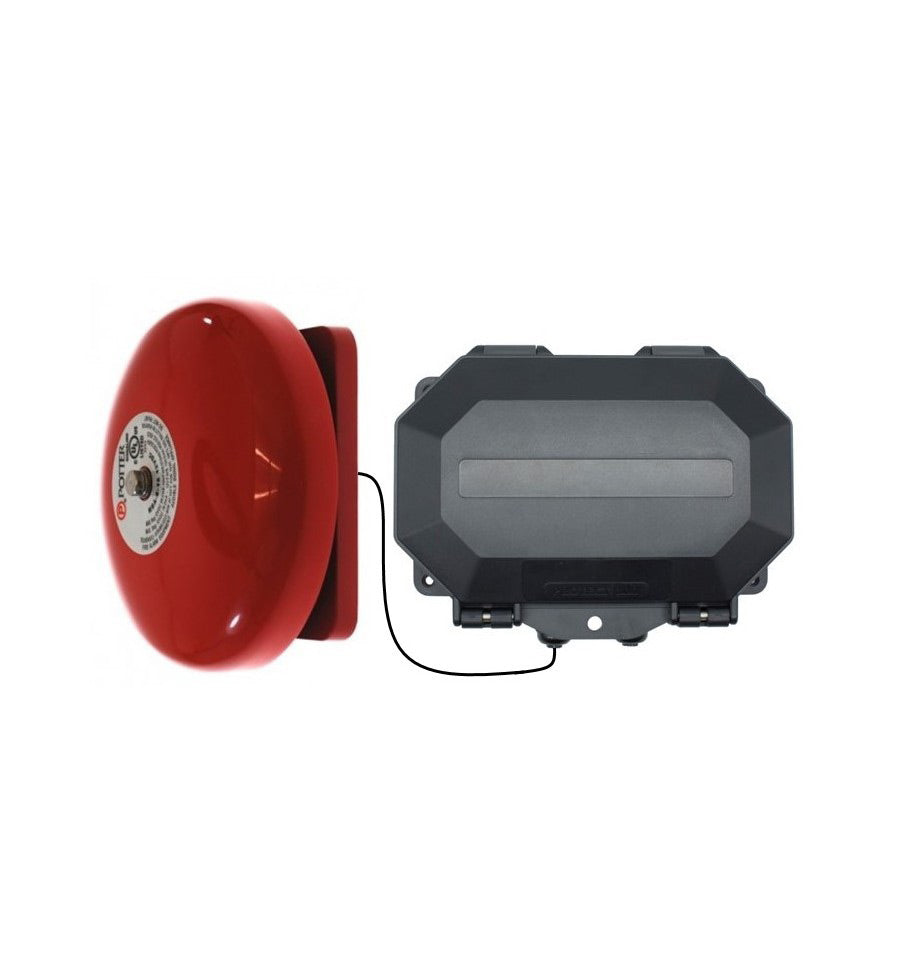

- When the H/D Push Button is pressed a Wireless signal is transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the Loud 85 Decibel Bell will activate for the chosen duration (this can be turned off by the owners or staff before the duration has elapsed by using a special long range (800 metre) remote control.
- The owner or staff could also trigger the Bell using the SOS Button on the Remote Control (supplied) in the event of a Medical or Security emergency, in these situations the Bell will stay latched ON until it is turned OFF using the special remote control which can be a useful additional Safety procedure (more remote controls can be added). It is also possible to connect a different sounding Siren on channel two for use in Medical or Security emergencies.

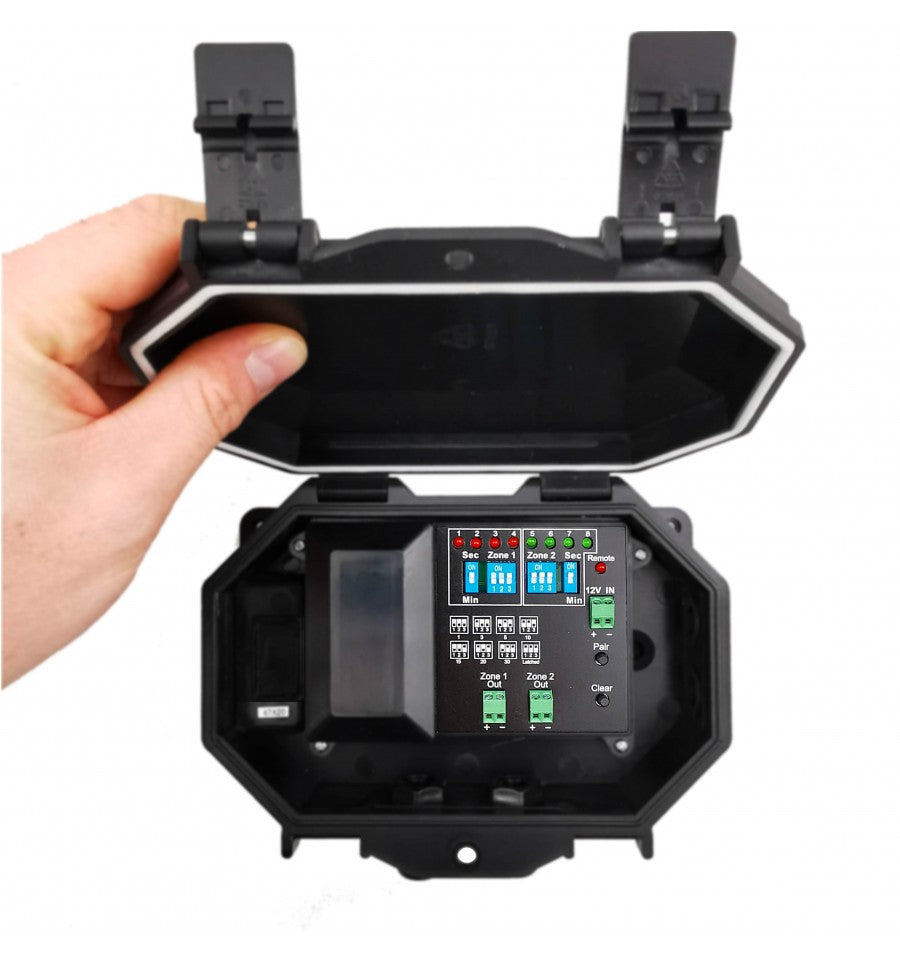

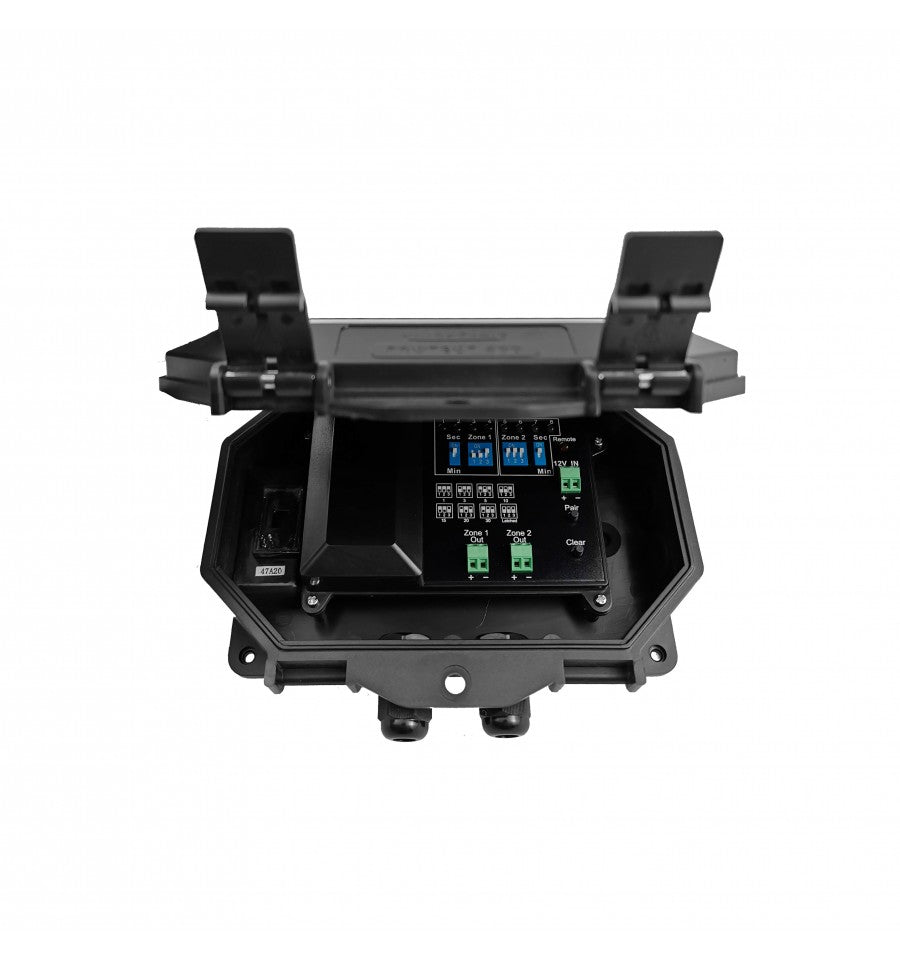

- The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.
Duration:
The duration of the Bell is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:
- 1 second or minute.
- 3 seconds or minutes.
- 10 seconds or minutes.
- 15 seconds or minutes.
- 20 seconds or minutes.
- 30 seconds or minutes.
- Latched ON (until disarmed using the remote control).

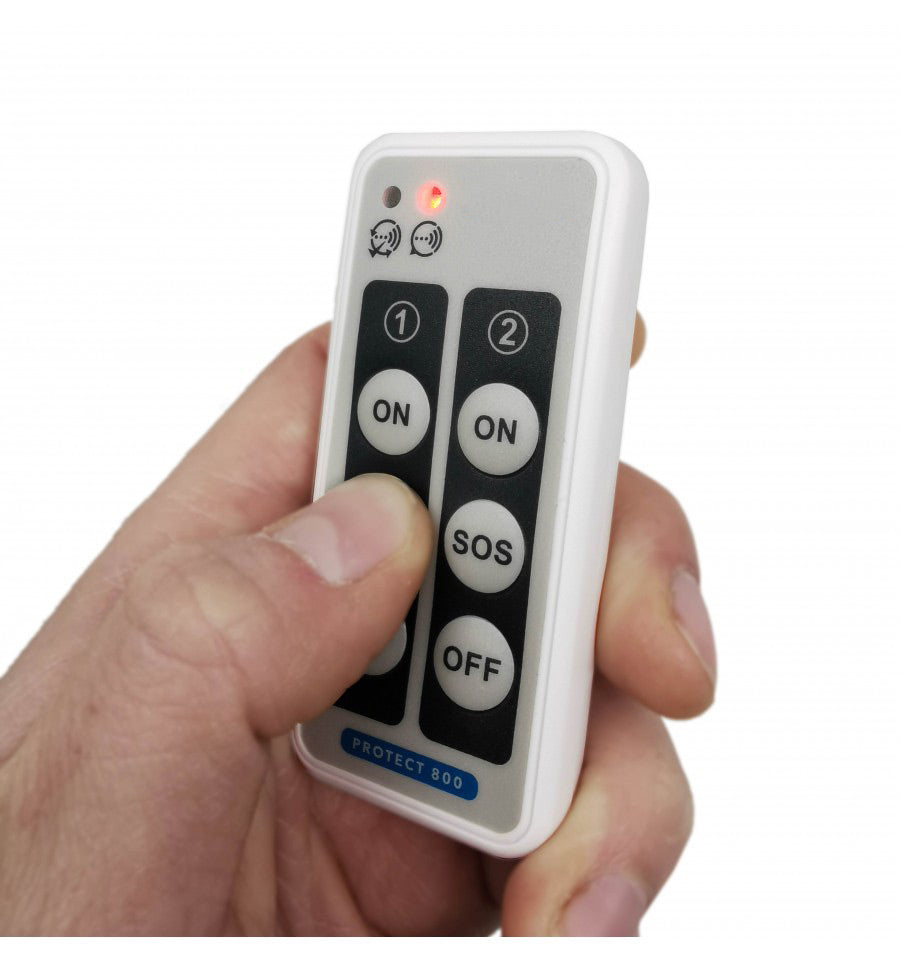

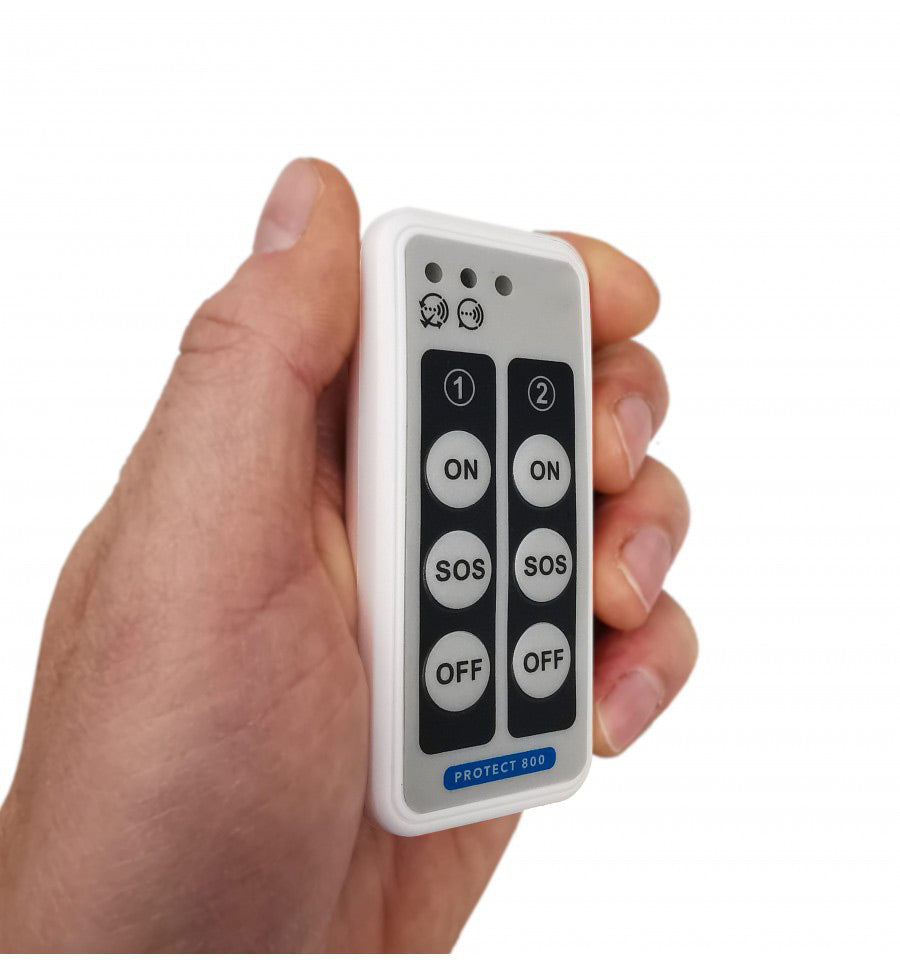

Remote Control:
The specially designed remote control supplied with this Outdoor Receiver has the following features:
- Arm & Disarm either channel on the Outdoor Receiver.
- Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
Additional Remote Controls can be added (there is no limit).
The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver from most locations within the business.
Powered by two standard AAA Batteries (supplied).
Indoor Receiver:
The 4-channel Wireless Receiver is packed with features to help you monitor & protect your Home & Business, these features include:
- 800 metre Wireless Reception.
- Adjustable Volume (from low to approximately 85 decibel).
- 32 optional Melodies.
- Mains Powered using a Plug in Transformer (3-pin UK & 2-pin European supplied).
- Optional Battery Back Up using 4 x AAA Batteries (not supplied).
- LED Notification of Loss of Mains Power.
- Low Battery Notification.
- Up to 16 Detectors can be Used.
- Multiple Receivers can be used (no limit).
- Zone Indicator (visual and by chime).
- 4 x Dry Relay Outputs (can be used to trigger Diallers, Flashing LED's, Siren's, Bells etc).
- 12v DC Output (can be used to trigger Flashing LED's, Siren's, Bells etc).
- Relay Duration: Momentary.
- 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
- Can be Wall or Desk Mounted.
- PIR Battery Check.
- Optional Pause Modes.
- 1 x Outdoor Receiver (P800-WSR/1) & Power Supply.
- 1 x Remote Control (P800-WSK/1).
- 2 x AAA Batteries.
- 1 x MT Transmitter (in a box).
- 1 x Heavy Duty Push Button (embossed with Please Ring) & 3 metres of Cable.
- 1 x Set of Screws.
- 1 x 85 Decibel Bell.
- 1 x Chime Receiver & Power Supply.

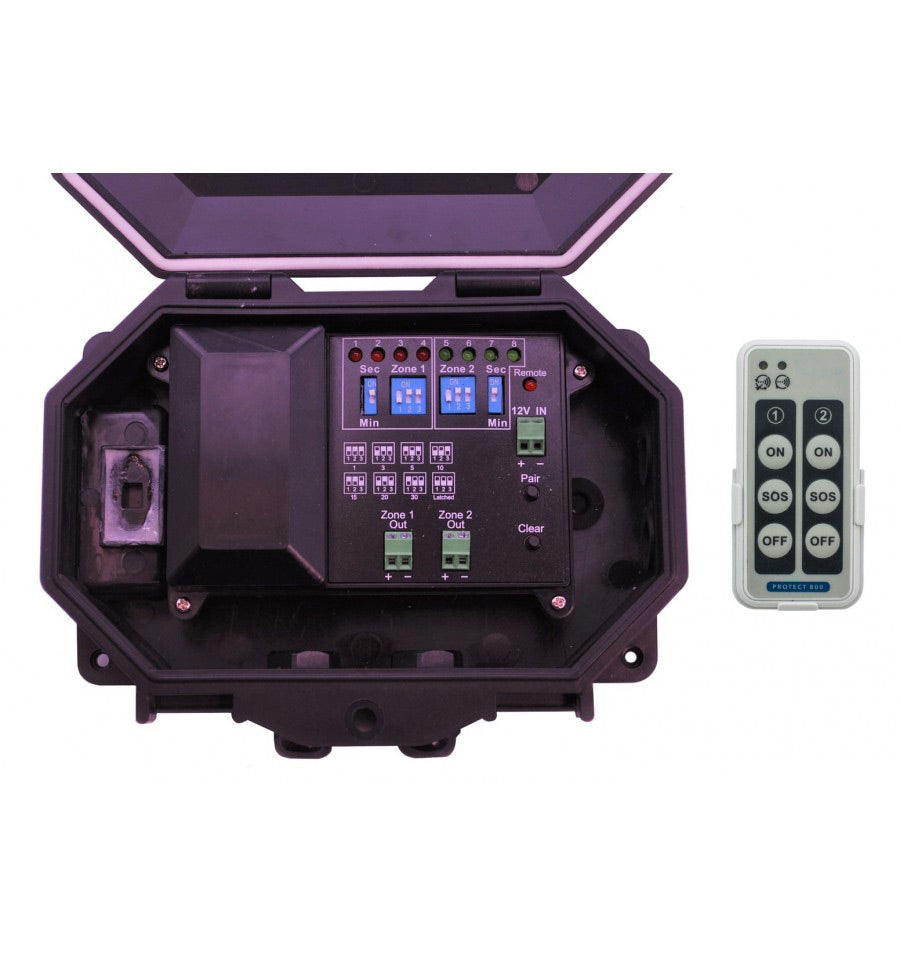

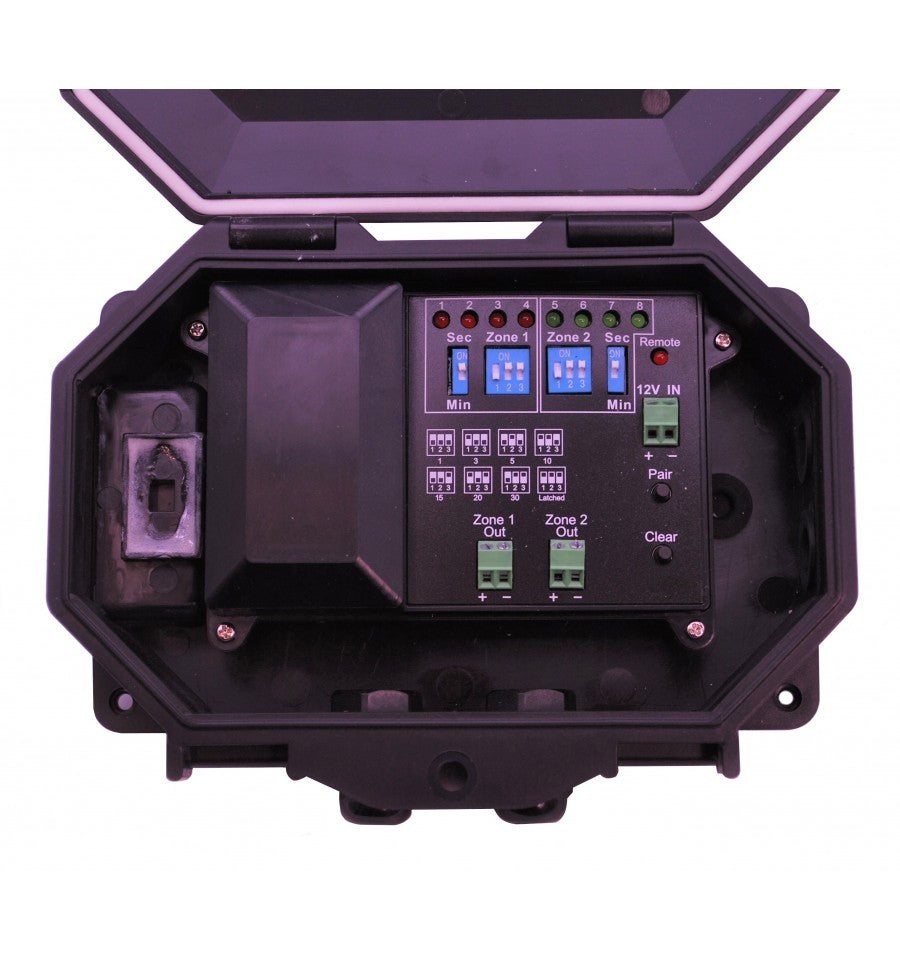

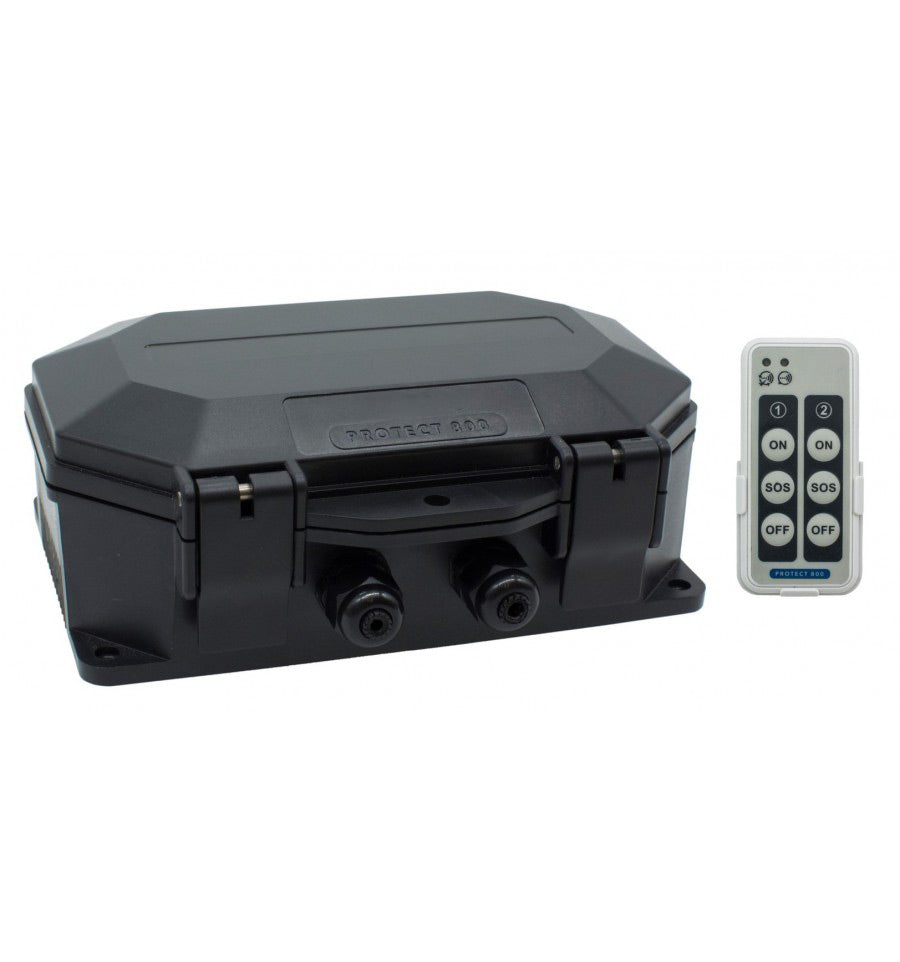

Outdoor Receiver:
- Weatherproof: Yes.
- Power Supply: 12v 5 amp DC.
- Weatherproof Cable Entry Glands: Yes.
- Channels: 2.
- Sensors per Channel: 4.
- Operating Range: 800 metres (line of sight).
- Arming & Disarming Method: Remote Control.

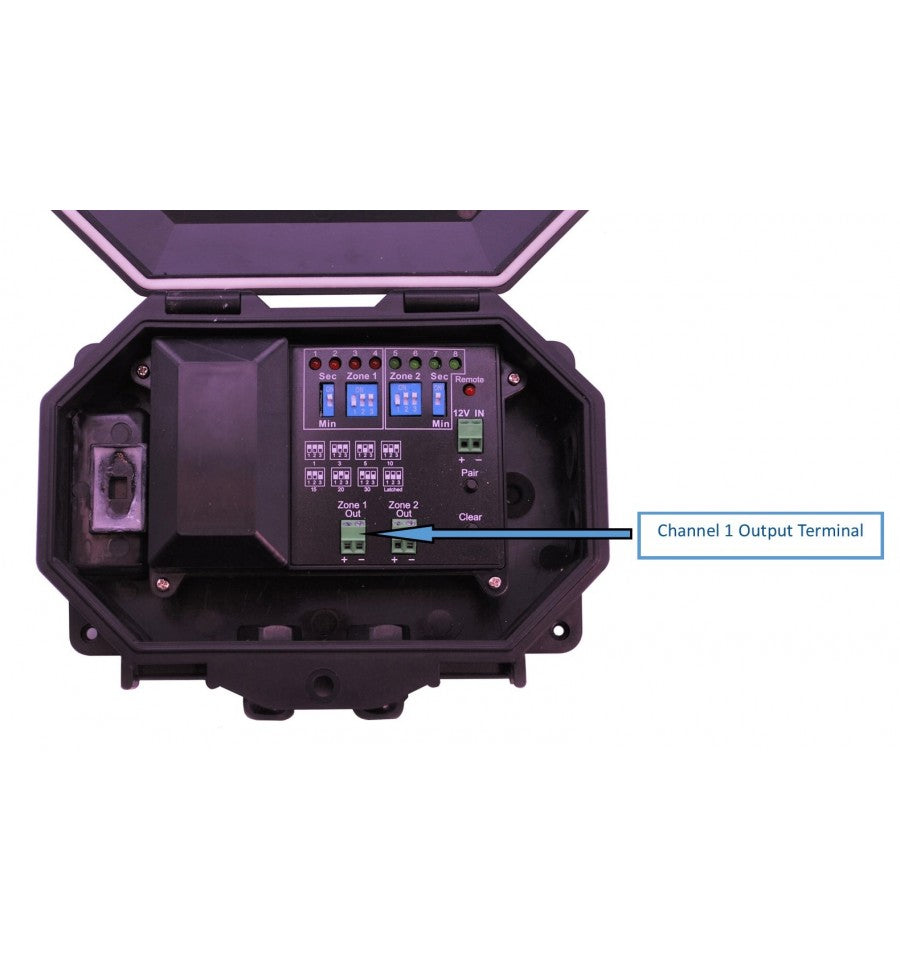

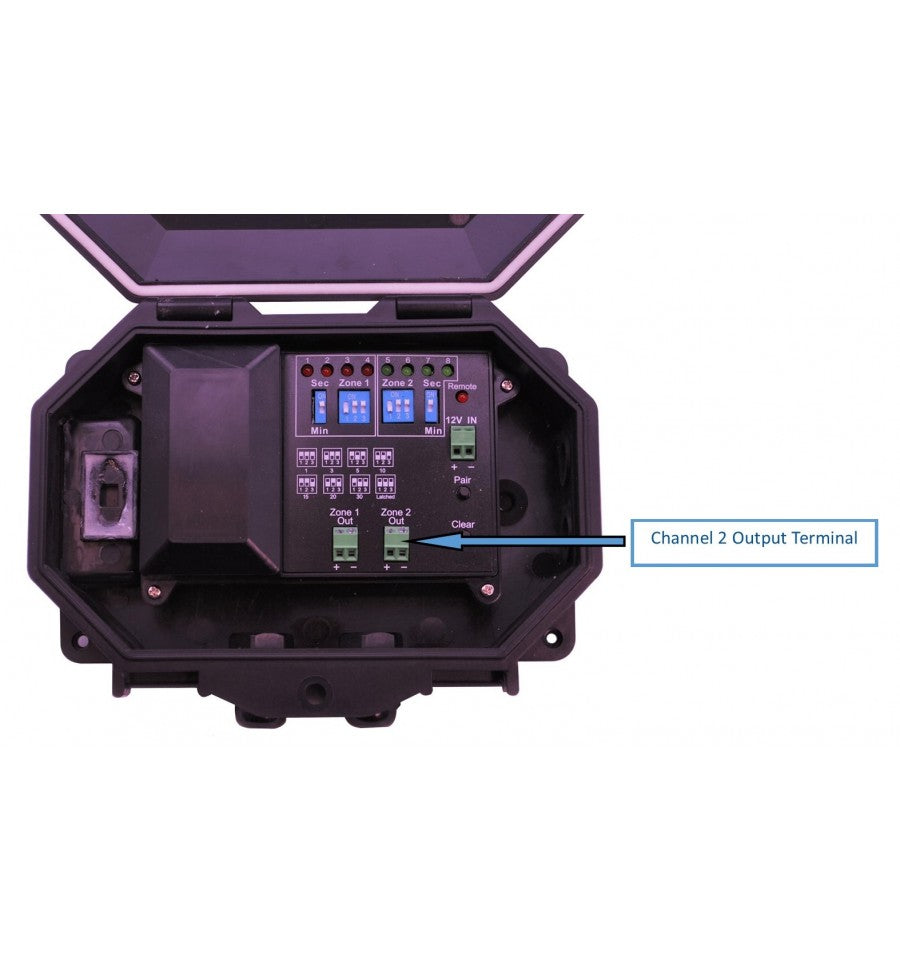

- 12v DC Outputs: 2.
- Output Duration:
-
- 1 second or minute.
- 3 seconds or minutes.
- 10 seconds or minutes.
- 15 seconds or minutes.
- 20 seconds or minutes.
- 30 seconds or minutes.
- Latched ON (until disarmed using the remote control).
- Duration Selection: Internal Dip-switches.
- Frequency: 869.400 – 869.650 MHz.
- Size: 170 x 125 x 60 mm.
Remote Control:
- Operation:
- Channel 1 Arm, Disarm & SOS.
- Channel 2 Arm, Disarm & SOS.
- Power Supply: 2 x AA Batteries (supplied).
- Size: 85 x 40 x 25 mm.
- Transmission Range: 800 metres (line of sight).
- Multiple Remote Control Operation: Yes (no limit).
- Feedback Indicator: Yes (it confirms a successful operation).
- Frequency: 869.400 – 869.650 MHz.

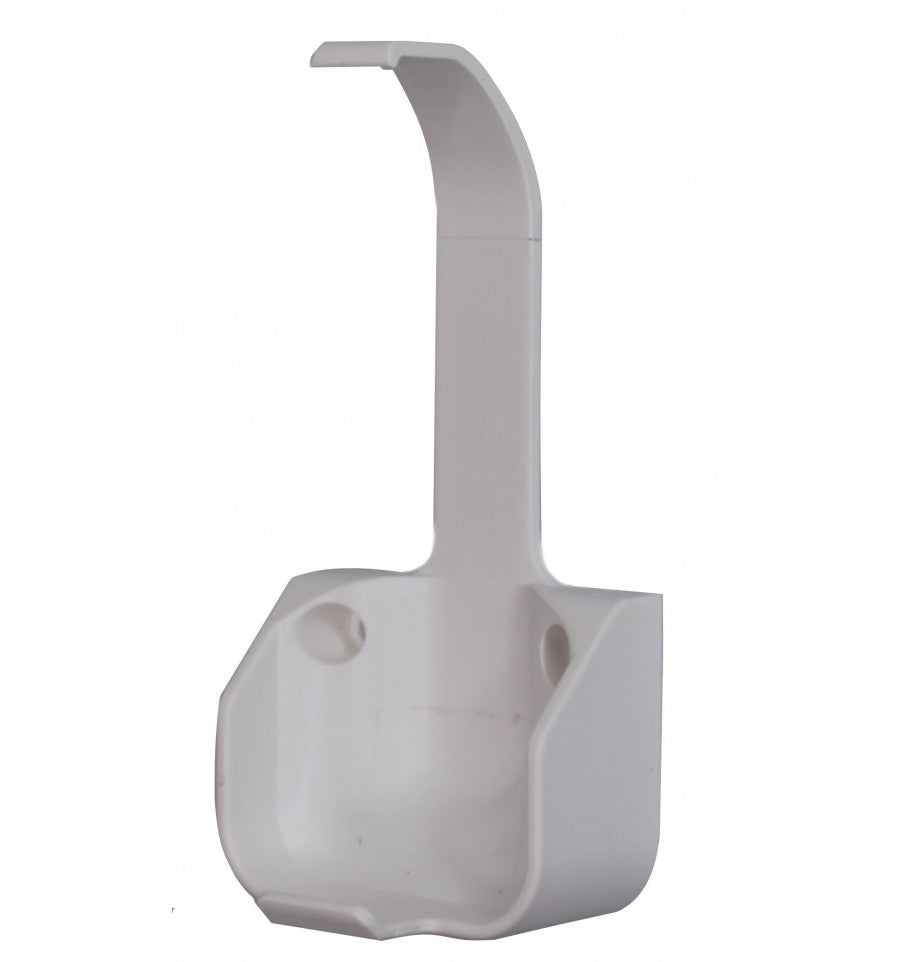

- Wall Bracket: Yes (supplied).

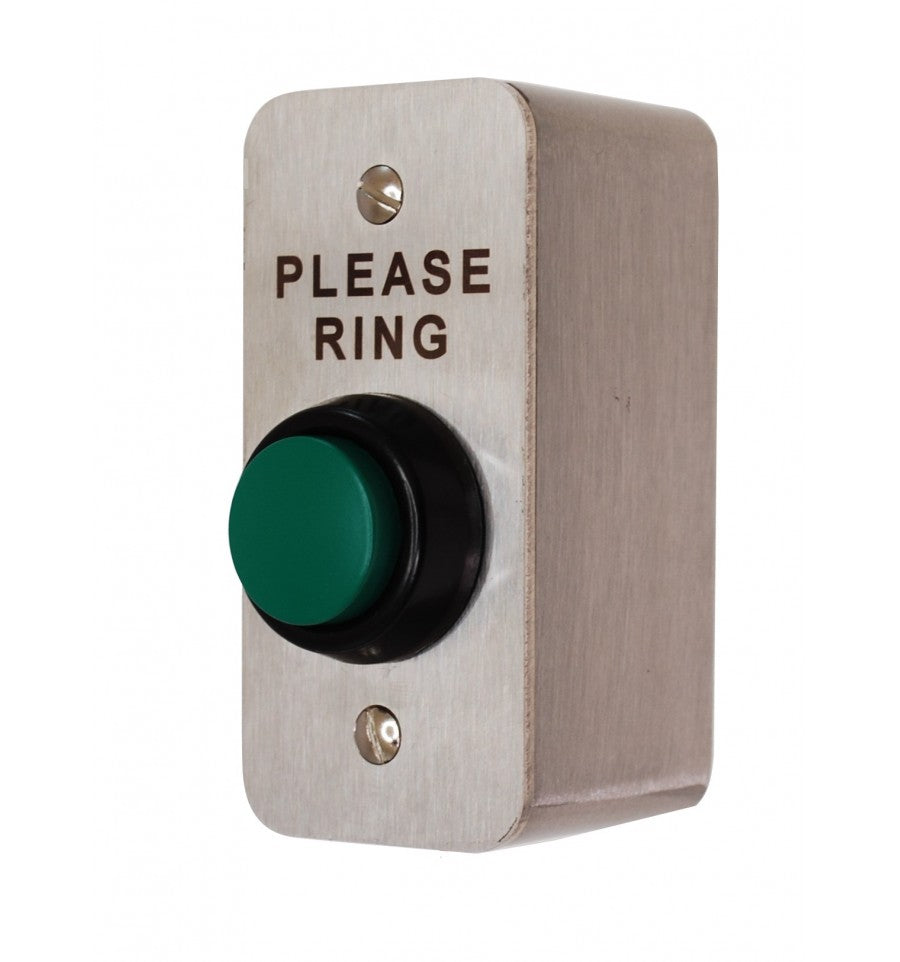

Push Button:
- Size: 85 (L) x 40 (W) x 40 (D) mm.
- Contact Type: NO or NC.
- Sealed Wired Contacts.
- Laser Etched Legend; Please Ring.
- Weatherproof: Yes.
- IP 67.

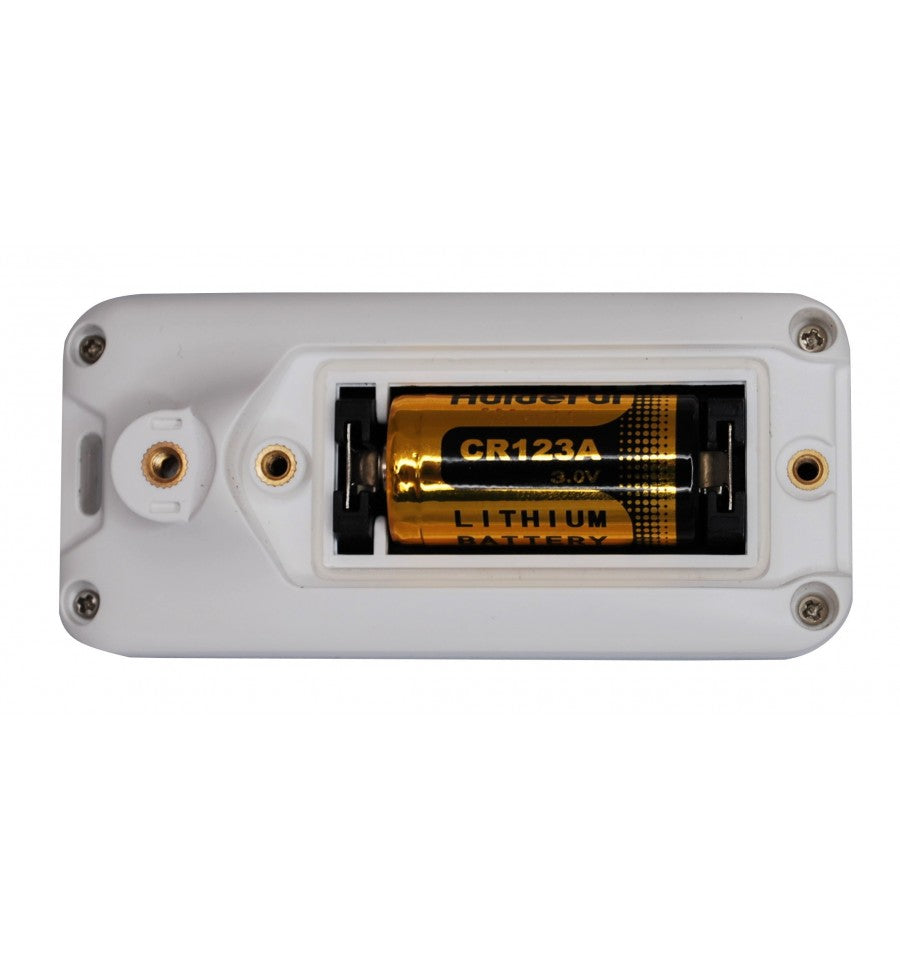

Transmitter:
- Wireless Range: 800 metre (line of sight).
- Power Supply: 1 x 3v Lithium CR123A Battery.
- Battery Life: 12 - 18 months (most applications).
- Size: 65 x 33 x 15 mm.
- Activation Methods:
- Wired Input: Yes (N/O Momentary Volt Free, when used as a circuit board).

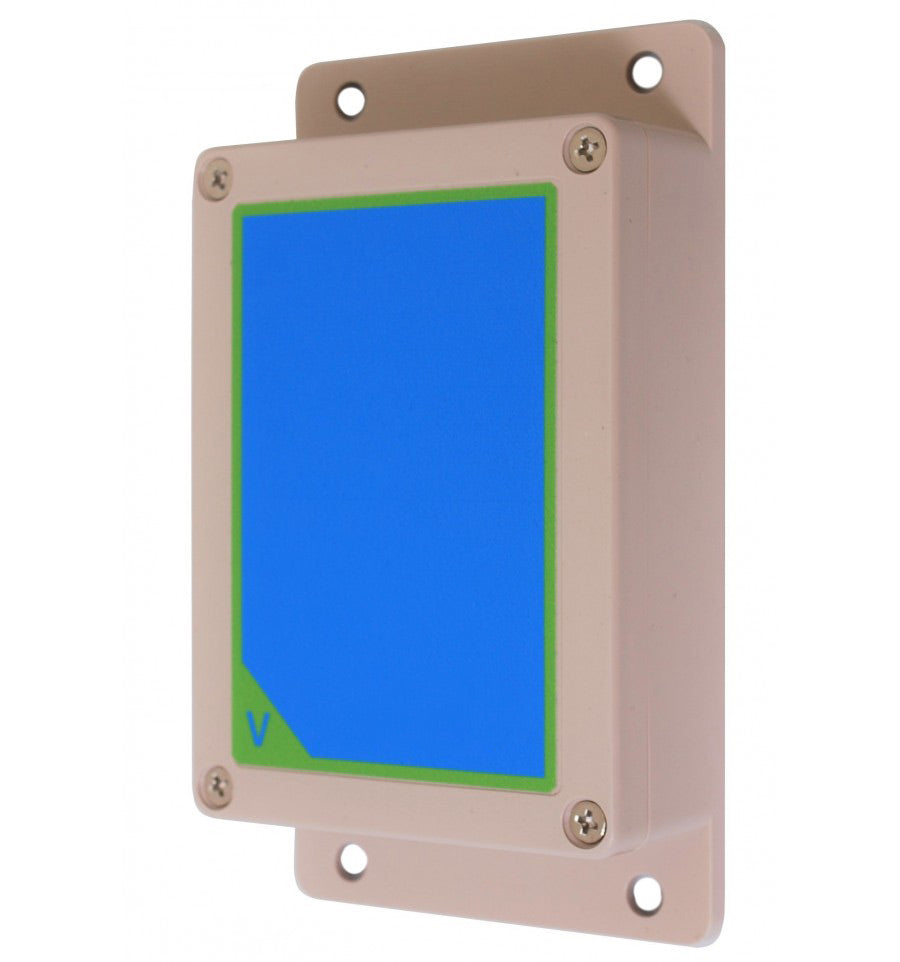

Mounting Box:
- Material: Plastic.
- Weatherproof: IP65.
- External Size: 150 (L) x 85 (W) x 34 (D) mm.
- Internal Size: 106 (L) x 76 (W) x 28 (D) mm.
- Label: V range.

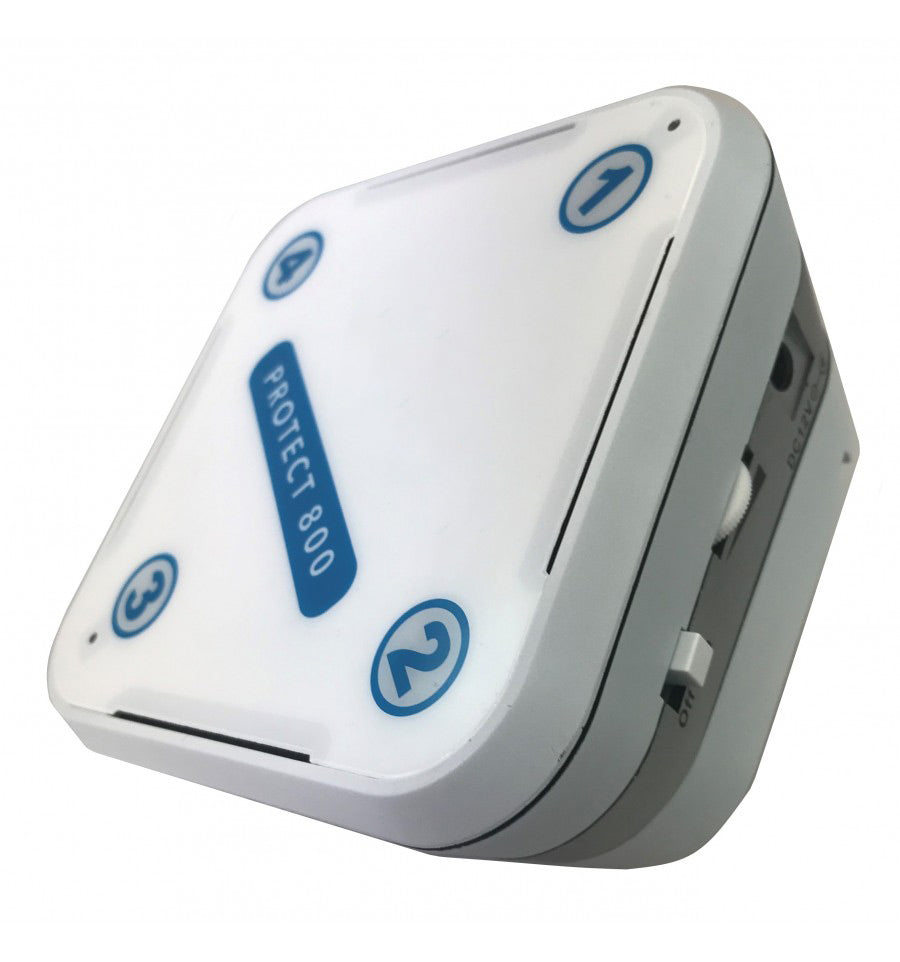

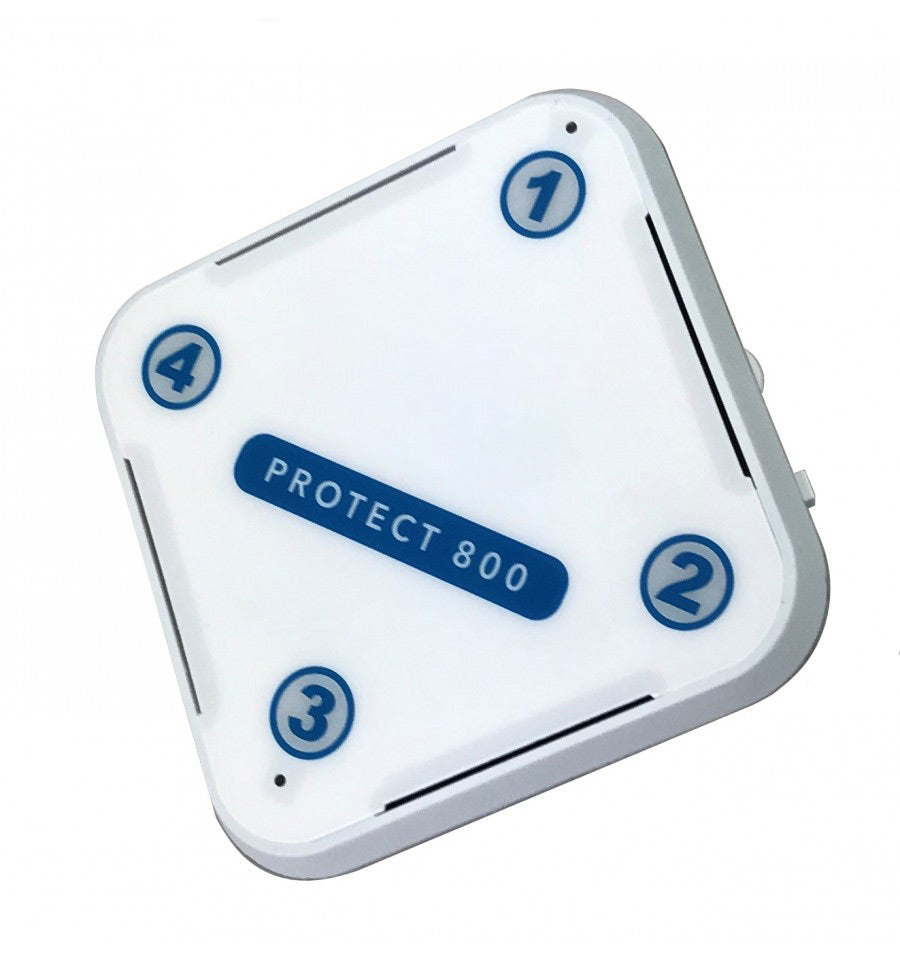

Chime Receiver:
- Wireless Operating Range: 800 metres (line of sight).
- Adjustable Volume: Yes (from low to approximately 85 decibel).
- Melody Options: 32.
- Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
- Battery Back Up: Yes 4 x AAA Batteries (not supplied).
- Loss of Mains Power Notification: Yes (LED).
- Low Battery Notification: Yes.
- Maximum Number of Detectors Can Be Used: 16.
- Multiple Receivers can be used: Yes (no limit).
- Zone Indicator: Yes (visual and by chime).
- Dry Relay Outputs: 4 (N/O & N/C Momentary).
- 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
- Relay Duration: Momentary.
- Mounting Method: Wall or Desk Mounted.
- PIR Battery Check: Yes.
- Optional Pause Modes: Yes.
- Input Voltage: 12v DC 500 mA.
- Frequency: 869.400 – 869.650.
