Description
The 1B Solar Powered Infrared Beam System is a high-performance security solution designed to detect movement over long distances—without the need for mains power. Equipped with both wireless transmission and a wired N/O or N/C output, this beam system is perfect for remote or off-grid locations.
Whether you're protecting farms, construction sites, outbuildings, or driveways, this compact sensor pair delivers exceptional detection reliability, zero-maintenance power, and flexible output options.
Wired Output Functionality
One beam (the “R” Beam) includes a wired output cable with Normally Open (N/O) and Normally Closed (N/C) options, enabling integration with:
- Battery-powered GSM Auto Diallers
- Sirens
- Alarm panels
- Custom trigger devices
Ideal for sites without mains power, where a battery-based alarm system is required.
900 Metre Wireless Transmission
Both beams include a built-in 433MHz wireless transmitter with an impressive 900-metre line-of-sight range to a compatible receiver. This allows:
- Flexible installation across wide areas
- Reuse or relocation to new zones or properties
- Use as part of a modular, wireless security system
Dual Beam Detection Technology
- Each sensor includes two aligned infrared detectors spaced 60mm apart
- Both beams must be broken simultaneously to trigger an alert
- Reduces false alarms from animals, leaves, insects, or debris
- Optional low-volume alignment beep helps during setup
Fully Solar-Powered for Low Maintenance
- Powered by rechargeable lithium AA batteries
- Batteries are automatically charged by built-in solar panels
- Optional rear charging port (9–12V DC) allows top-up charging if installed in shaded areas
What’s Included
- 1x Pair of solar-powered infrared beams (transmitter and receiver)
- 1x 800mm 2-core N/O & N/C output cable
- 1x Set of wall mounting brackets
- 1x Set of pole mounting brackets
- 1x Installation and user guide
Technical Specifications
| Feature | Specification |
|---|---|
| Detection Range | 100 metres (between beams) |
| Wireless Range | 900 metres (line of sight, 433MHz) |
| Beam Spacing | 60mm (Dual beam technology) |
| Output Type | Momentary N/O or N/C |
| Cable Length | 800mm (2-core) |
| Power Source | Rechargeable AA lithium batteries |
| Charging Method | Integrated solar panels |
| Optional Charging Port | 9–12V DC, 500mA–1A (rear charging port) |

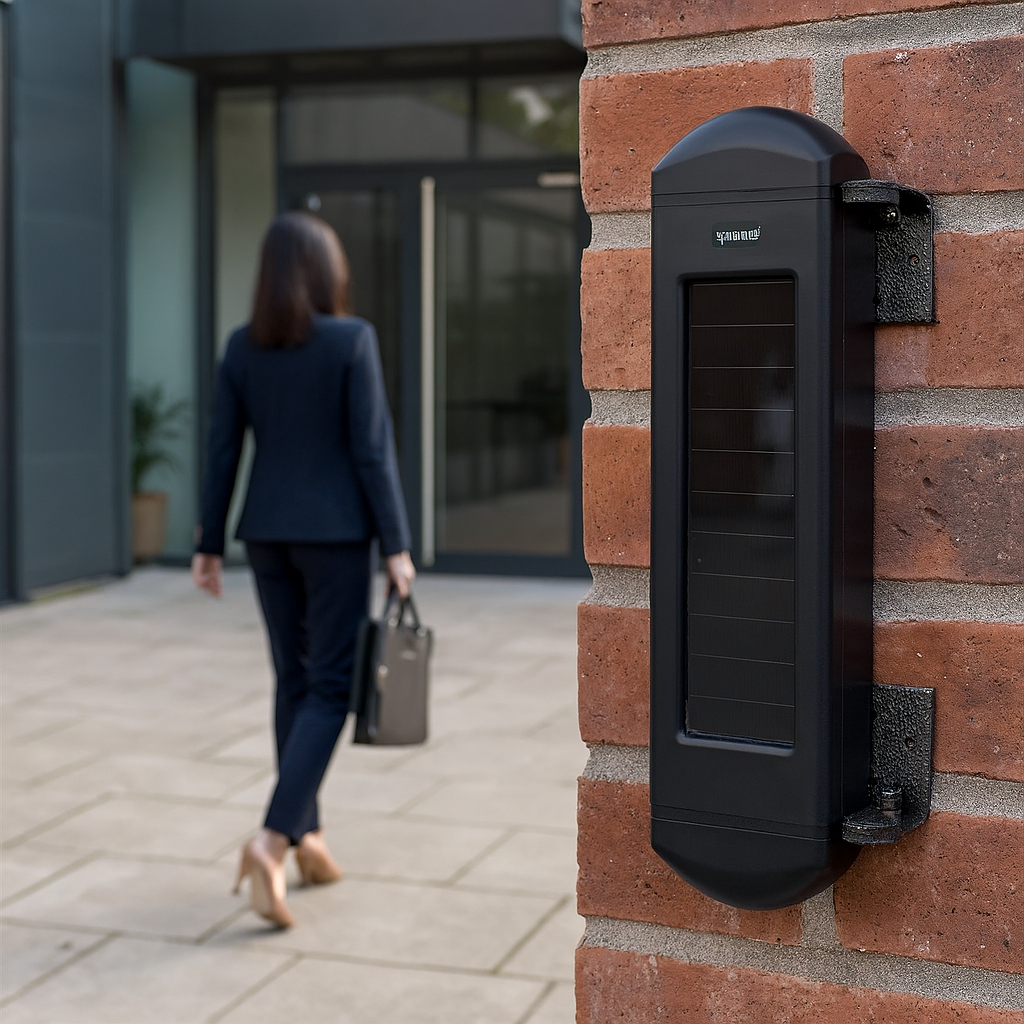

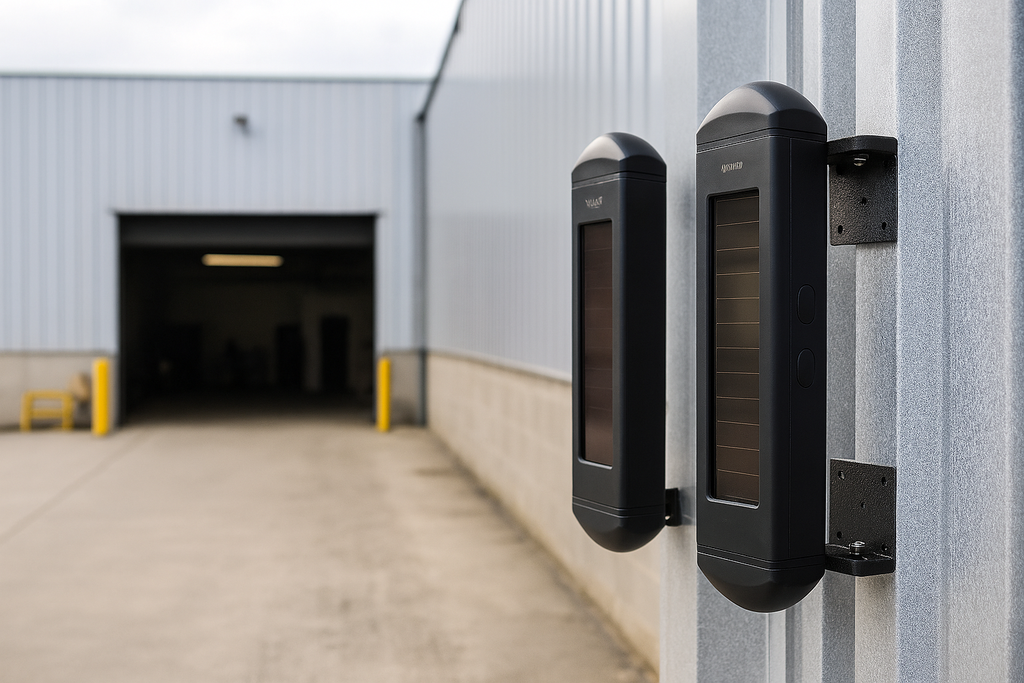

| Mounting Options | Wall or pole |
| IP Rating | IP66 (Weatherproof) |
| Unit Dimensions | 340mm (H) x 123mm (W) x 45mm (D) |
| Number of Beams | 1 set (transmitter + receiver |
- Where It's Used
- Farms, fields, and estates
- Driveway protection
- Construction sites and temporary yards
- Vacant or remote buildings
- Off-grid or mobile security setups
