Description

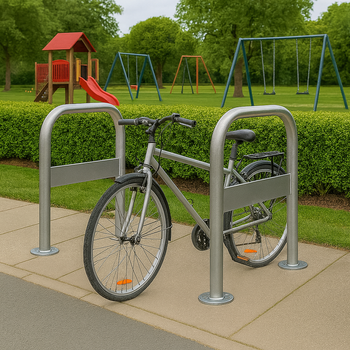

The RevoPort Cycle Stand is a heavy-duty, dual-capacity bike rack purpose-built for high-traffic public areas such as transit stations, campuses, business parks, and city centres.
Crafted from durable galvanised mild steel or optional grade 304/316 stainless steel, this stand supports two bicycles at once — one on each side — allowing secure locking of both the frame and front wheel.

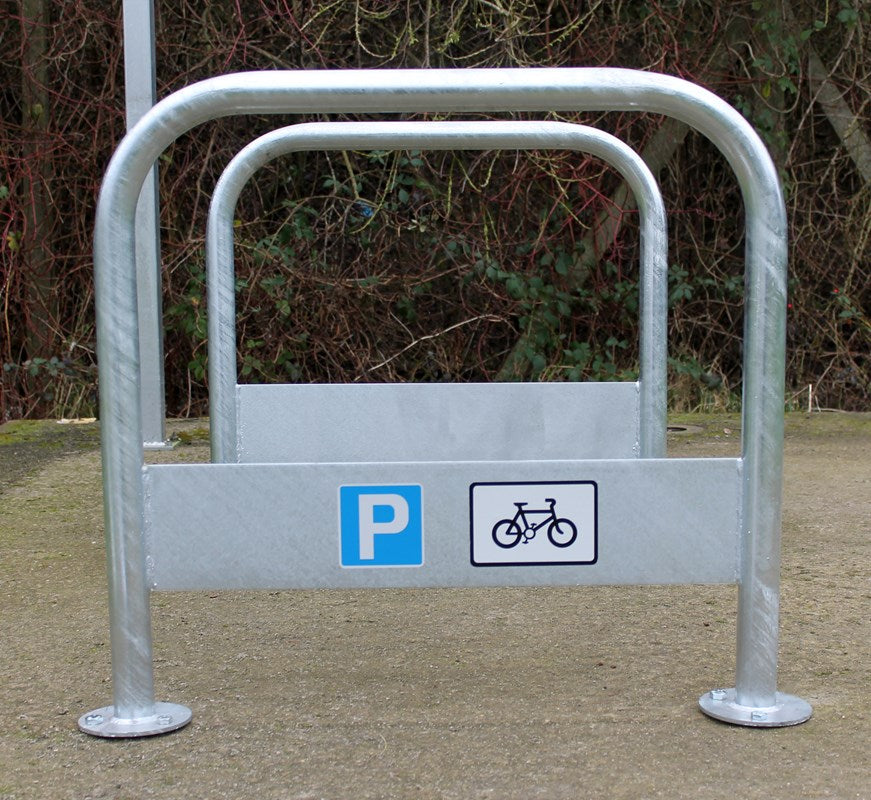

It features an integrated low-level signage plate, positioned just 100mm above the ground, which functions both as a DDA-compliant tapping rail and as a cycle parking identifier. Each signage plate comes with cycle parking ‘P’ symbols and icons to enhance wayfinding for all users, including the visually impaired.
Key Features:
- Securely holds two bikes (one each side)
- DDA-compliant tapping rail for improved accessibility

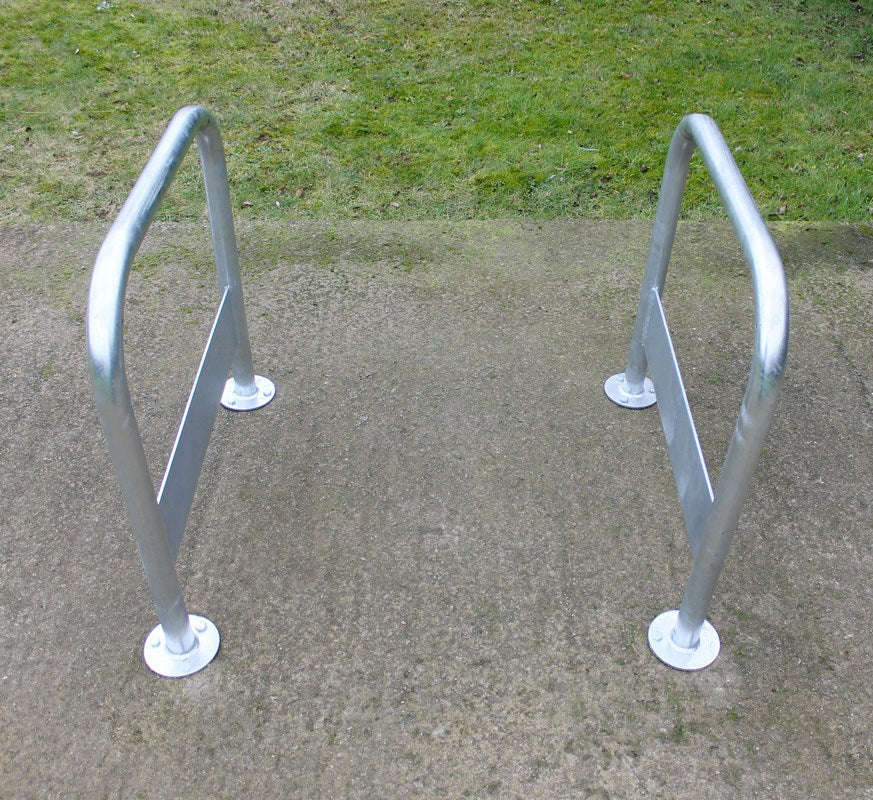

- Available ragged (root fixed) or flanged (bolt-down) for easy installation
- Robust 60mm diameter steel tube construction
- Reflective tape available to improve night-time visibility
- Optional powder coating in any RAL/BS colour
- Stainless steel grade 304 (316 also available upon request)
Specifications:
Attribute | Value |
---|---|
Height (above ground) | 750mm |
Overall Length | 800mm |
Tube Diameter | 60mm |
Wall Thickness | 3mm (mild steel), 2mm (SS) |
Foundation Depth | 300mm (ragged version) |
Mounting Option | Ragged or Flanged |
Signage Plate Height | 100mm from ground |
Fixings (Flanged) | 6x 12mm bolts (not included) |
- Galvanised Mild Steel (Standard)
- Grade 304 or 316 Stainless Steel
- RAL/BS Colour Powder Coating
-
Please specify your preferred finish and RAL/BS colour code at time of order.
