Security Floodlight & Siren Long Range Driveway PIR Alarm With Outdoor Receiver

• A unique Long Range Wireless Protect-800 Driveway Alarm with an Outdoor Receiver, Bright Security Floodlight, Loud Siren & 2 x Outdoor PIR's.

• The duration of the Security Light and Siren are independent and fully adjustable and controlled using the long range Remote Control, for example:
• The Security Floodlight could be used with the first PIR and paired into zone 1 on the Outdoor Receiver.
• The Loud 118 dB Siren could be used with the second PIR and paired into zone 2 on the Outdoor Receiver.
• You can set totally different time settings on zone 1 & zone 2, so you could have zone 1 operating for 5 or 15 minutes (when triggered) and zone 2 for 10 seconds or 3 minutes (when triggered).
• Zone 1 would only be active when you have Armed zone 1 using the Remote Control.
• Zone 2 would would only be active when you have Armed zone 2 using the Remote Control.
• You can choose to have one or both zones ON or OFF at any time.
• You can also choose to activate one or both zones using the SOS Button on the Remote Control (regardless of the status of the alarm), in this instance the relevant zone (or zones) would latch on until they are disarmed using the Remote Controls (ideal for security & medical emergencies).
• You could also choose to have both PIR's paired into zone 1 together with the Light & Siren, both operating for the same selected duration

• The Battery powered Wireless PIR's (more can be added) can be located up to 800 metres (which equates to around 400 - 600 metres in most applications) away from the Outdoor Receiver.
• When a person or vehicle passes either PIR a Wireless signal would be transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the relevant zone would operate the Security Light or Siren (these can be turned off by the owners by using the long range (800 metre) remote control supplied before the time has elapsed.

• The owner could also trigger the Security Light using the SOS Button on the Remote Control which could be useful in a Medical or Security emergency (more can be added).

• In these situations the Security Light or Siren would latch ON until they are turned OFF using the remote control.

• The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.
• You could also add an Internal Chime Receiver to the system allowing you to be notified when you are inside the House or Office.

Duration:

• The duration of the Security Light or Siren are fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

• The Outdoor Receiver has two channels with a 12v Output, each channel can be operated by up to four Protect-800 Sensors, these include:
• PIR's
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board

Remote Control:

• The specially designed remote control supplied with this Outdoor Receiver has the following features:
• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
• Powered by two standard AAA Batteries (supplied).

PIR's:

• The Battery Powered Wireless PIR's for the Protect 800 Wireless Driveway Alert System are packed full of features including:
• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 8 x PIR's can be used with the Outdoor Receiver.
• Sunshade & Rain Hood.
• Lens size adjusting Caps (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

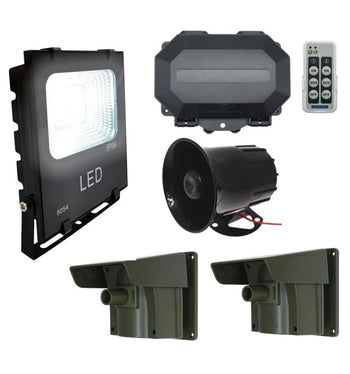

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• 2 x Protect 800 PIR's (with Brackets, Rain & Sun Hoods, Lens Caps & Batteries).
• 1 x Set of Screws.
• 1 x 12v Floodlight.
• 1 x 12v Wired Dak Siren

Specifications:

Outdoor Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

PIRs:

• Wireless Operational Range: 800 metres (line of sight).
• Weatherproof: Yes.
• Detection Range: Up to 15 metres Detection Range (can be further with large objects).
• Angle of Detection: Approximately 9 - 12 degrees @ 12 metres distance.
• Adjustable Sensitivity Settings: Yes.
• Maximum Number of PIR's: 16.
• Sunshade & Rain Hood: Yes.
• Lens size adjusting Caps: Yes (removable).
• Battery
• Pencil Beam.
• Narrow Beam.
• Wide Beam.
• Powered: Yes (4 standard AA batteries approximately 9 - 12 months).
• Low Battery Warning: Yes (on receiver).
• Battery Status Checking: Yes (on receiver).
• Vehicle Detection: Yes (best with cap removed).
• Size with Bracket (no sun hood): 85 (D) x 80 (W) x 100 (H) mm.
• Size with Bracket & Sun Hood: 120 (D) x 80 (W) x 100 (H) mm.
• Frequency: 869.400 – 869.650.
• Temperature Range: -20℃ to 50℃.
• Choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

Floodlight:

• Voltage: 12v DC.
• Watts: 20.
• Colour: Black.
• Mounting Bracket: Adjustable.
• Size: 155 (w) x 180 (h) x 65 (d) mm.

Siren:

• Current Rating: 310 mA.
• Voltage: 12v DC.
• Length: 101 mm.
• Width: 96 mm.
• Sound Level: 118 dB.
• Colour: Black.
• Tone: 6-tone.
