Description

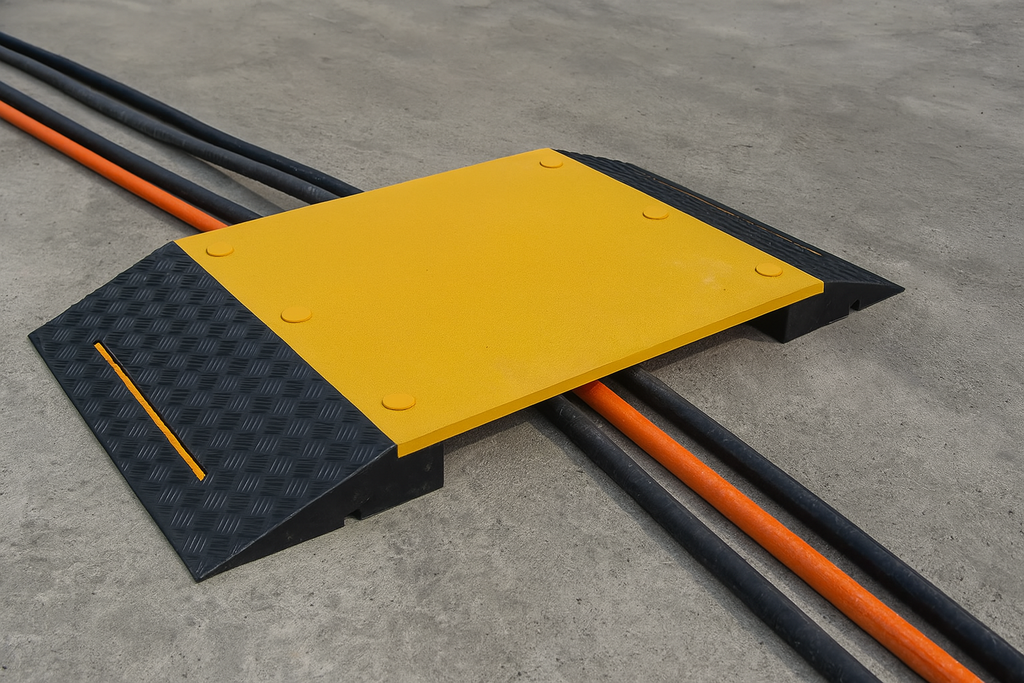

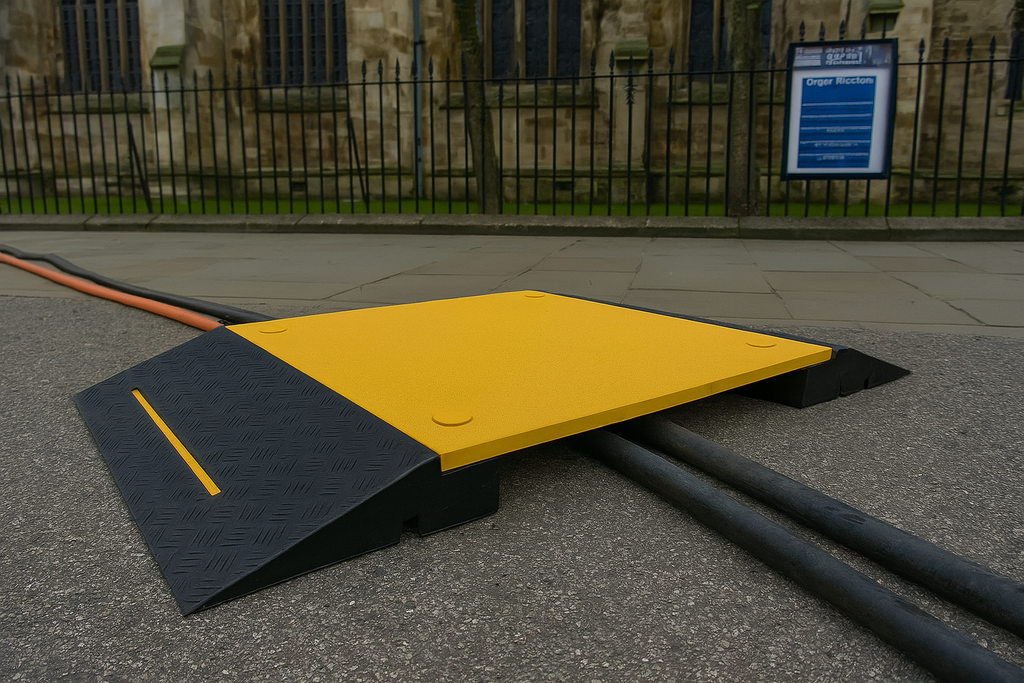

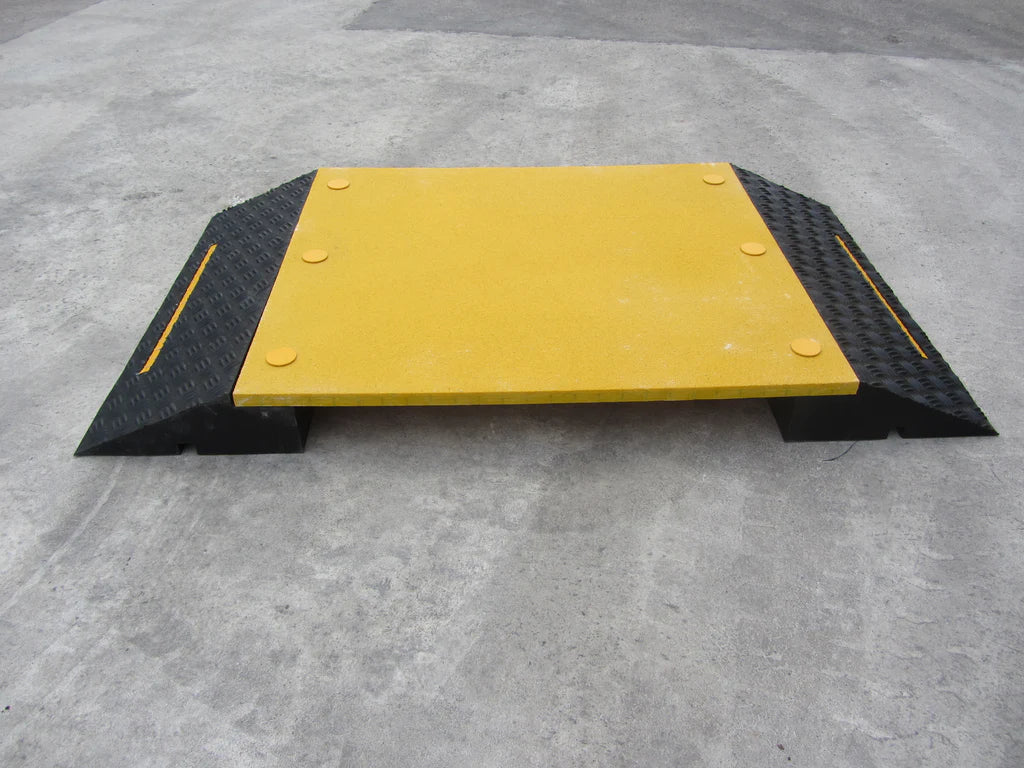

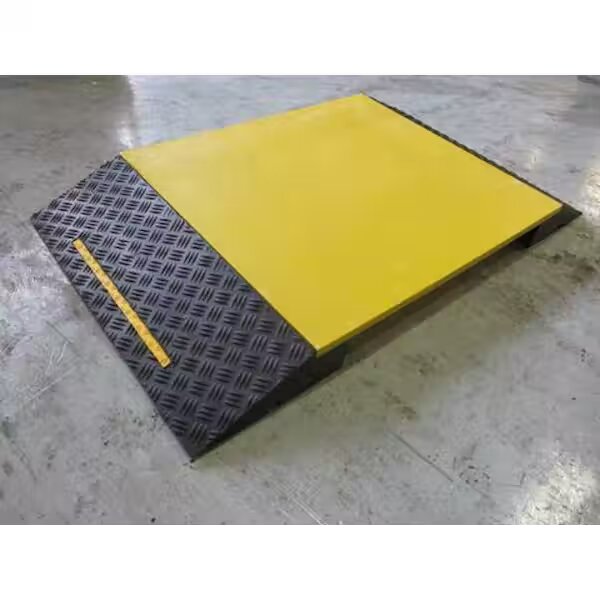

The Modular Multiple Hose & Cable Protector Ramp is specifically designed to allow safe pedestrian crossing over exposed hoses and cables on construction sites, events, or roadworks. With a heavy-duty modular design and a high-grip GRP walkway, this system ensures both public safety and cable/hose integrity in high-traffic environments.
Key Benefits & Features

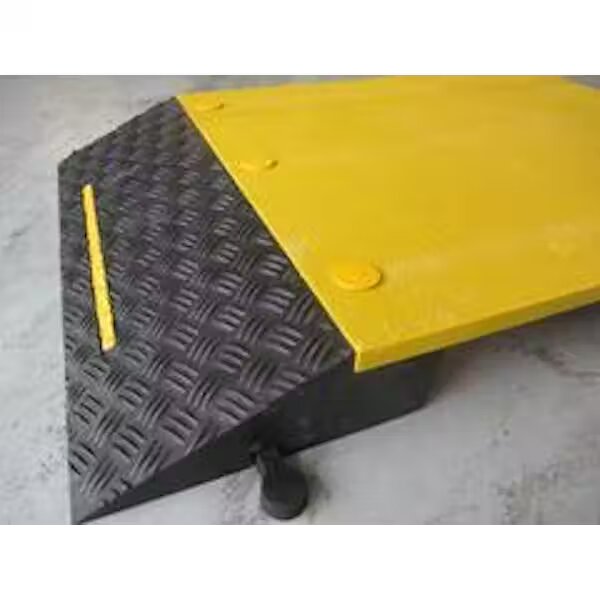

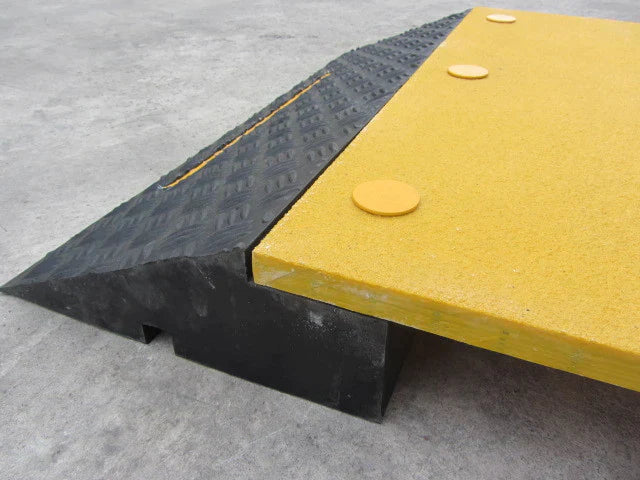

- Pedestrian-Friendly Walkway: Features a bright yellow GRP (Glass Reinforced Plastic) surface with anti-slip gritted finish for maximum traction — ideal for reducing slips, trips, and falls.
- High Cable Capacity: Underneath clearance can accommodate up to 8 hoses or cables with a maximum diameter of 100mm, making it perfect for complex utility or event setups.

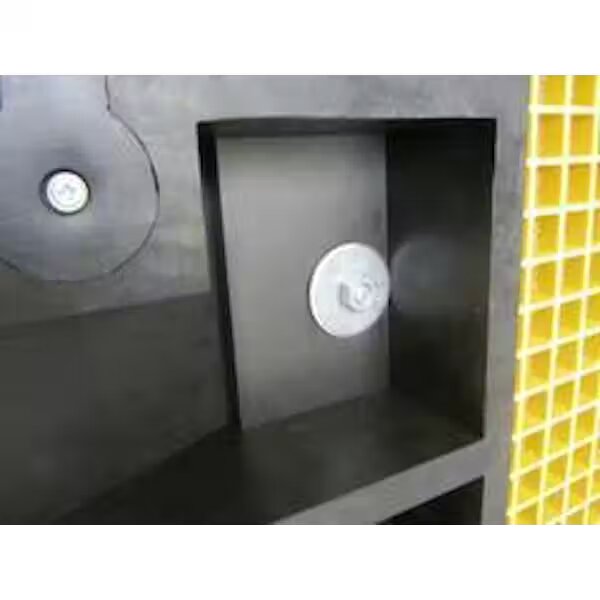

- Modular System: Easily interlocks with additional ramp units for extended coverage, allowing seamless protection over long cable runs or trench crossings.
- Durable & Load-Tested: Supports up to 250kg of pedestrian weight — suitable for foot traffic in temporary or semi-permanent locations.
- Quick Installation: Comes with all required fittings and can be installed tool-free, making it ideal for loose lay deployments at short notice.
Product Specifications
| Feature | Specification |
|---|---|
| Bridge Distance | 800mm (front to back) |
| Gap Height | 100mm |
| Internal Capacity | 800mm x 100mm |
| Overall Dimensions | 1560mm (L) x 880mm (W) x 125mm (H) |
| Max Hose/Cable Diameter | 100mm |
| Max Load Capacity | 250kg (pedestrian use only) |
Applications
- Temporary walkways over utilities or trenches
- Public crossings during roadworks or civil engineering
- Construction and demolition sites
- Festivals, events, or film sets with pedestrian flow
- Emergency services or rapid infrastructure setups
