Description
Ensure your site’s security and manage occasional access with the SecureSwing™ Heavy-Duty Manual Swing Gate — the ideal solution for commercial and industrial entrances that require durable, reliable, and cost-effective access control.
Crafted from galvanized mild steel and coated in high-visibility red (custom RAL/BS colours available), this manually operated swing gate provides exceptional strength and resilience for long-term outdoor use. Whether it's for construction zones, warehouses, vehicle depots, or loading areas, SecureSwing™ offers peace of mind and professional-grade security.
Key Benefits & Features:
-
Heavy-Duty Steel Build
Constructed from 120mm x 120mm square tube with a 3mm thick wall, offering superior strength and impact resistance. -
Manual Precision Operation
Ideal for areas needing occasional access – no power source required. -
Enhanced Safety Design
Equipped with a short leading edge beam and low bottom edge to reduce injury risks and prevent uncontrolled gate movement. -
Self-Latching Catch Post (Included)
Automatically secures the gate in the closed position, with the option to lock open or closed using an additional catch post and padlock (sold separately). -

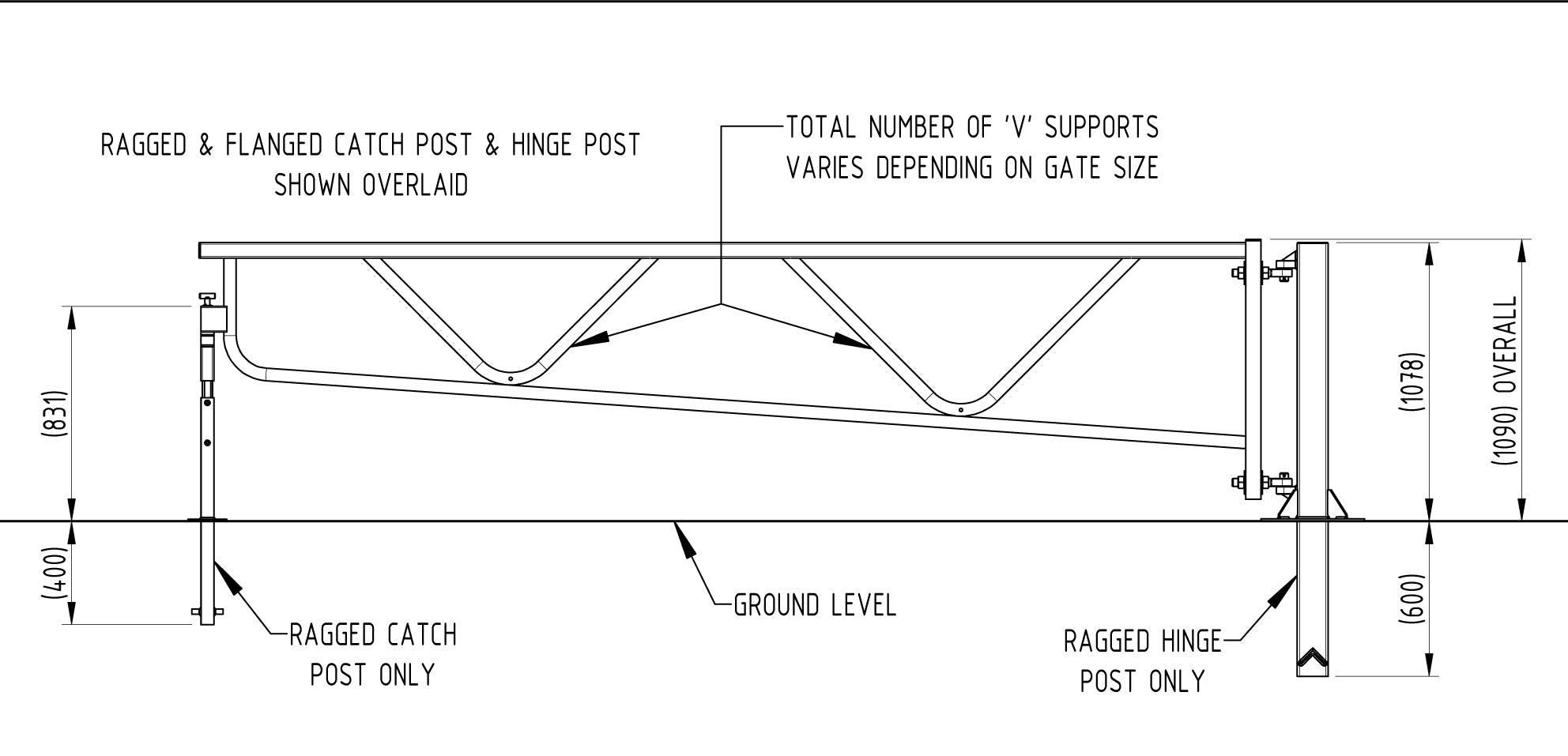

Surface or Subsurface Mounting Options
Available in both ragged (concrete-in) and flanged (bolt-down) versions for versatile installation. -
Corrosion-Resistant Finish
Hot-dip galvanised with a powder-coated finish in red as standard — ideal for high-traffic or weather-exposed environments.
Technical Specifications:
- Main Gate Frame: 120mm x 120mm square tube, 3mm thick
- Gate Arm: 60mm x 60mm square tube
- Installation Depth: 600mm (concrete-in)
- Colour: Standard Red (Custom RAL/BS codes available on request)
- Locking: Compatible with padlocks and optional second catch post
Applications:
- Construction Sites
- Vehicle Depots
- Industrial Complexes
- Logistics Yards
- Warehousing Zones
- Restricted Commercial Entrances
