Long Range Wireless Gate Bell with Outdoor Receiver

• A unique Long Range Protect-800 Magnetic Gate Contact Alarm/Alert with an Outdoor Receiver & Loud Weatherproof Bell.
•  The duration of the Bell is fully adjustable and controlled using a special long range Remote Control. When Armed the Bell will trigger for the chosen duration when the Gate is Opened, you can also activate the Bell at any time using the SOS Button on the Remote Control from up to 800 metres away.

Duration:

The duration of the Bell is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

• PIR's
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board

So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:

• The loud Siren for 20 seconds when triggered (when armed).
• A bright 12v DC Floodlight for 10 minutes when triggered (when armed).

Remote Control:

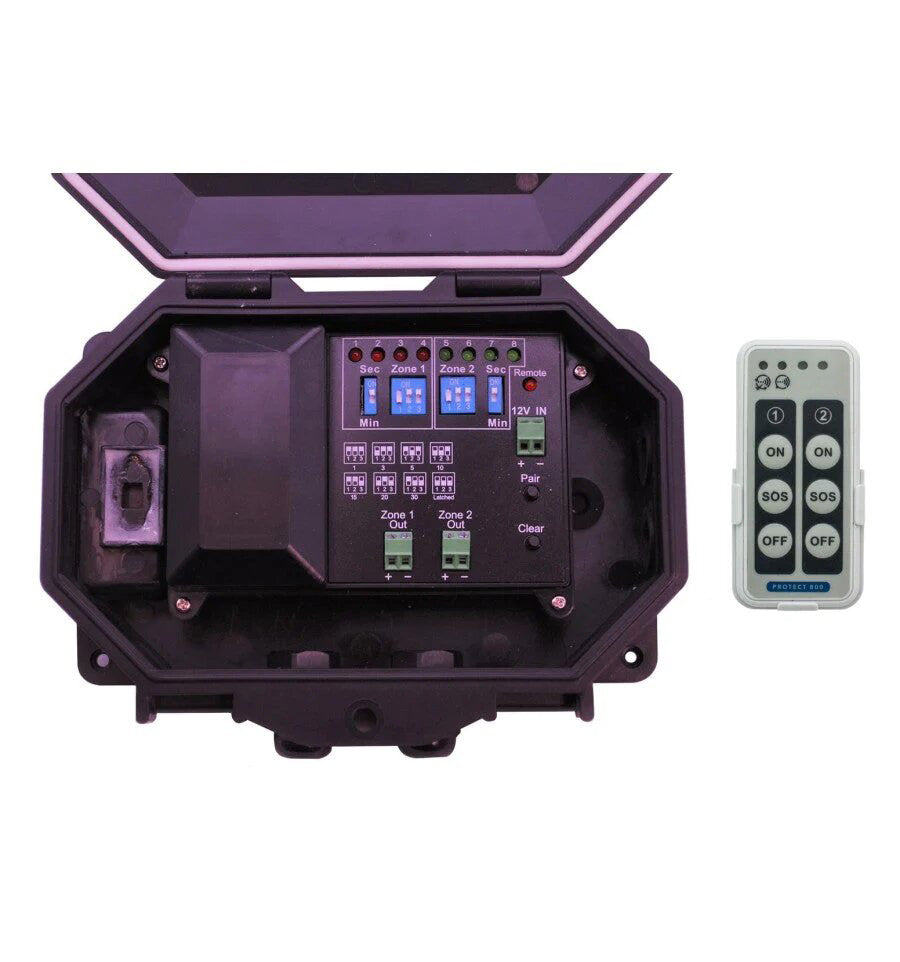

The specially designed remote control supplied with this Outdoor Receiver has the following features:

• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
• Powered by two standard AAA Batteries (supplied).

• You can also add the standard Indoor Receivers to this system allowing you to have notification inside the house (regardless of if the Outdoor Receiver is Armed or Disarmed).
•  This is a unique Outdoor Receiver which can be used in so many types of applications, not found in any other Driveway Alarm System !!

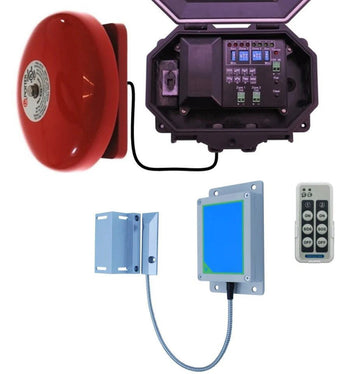

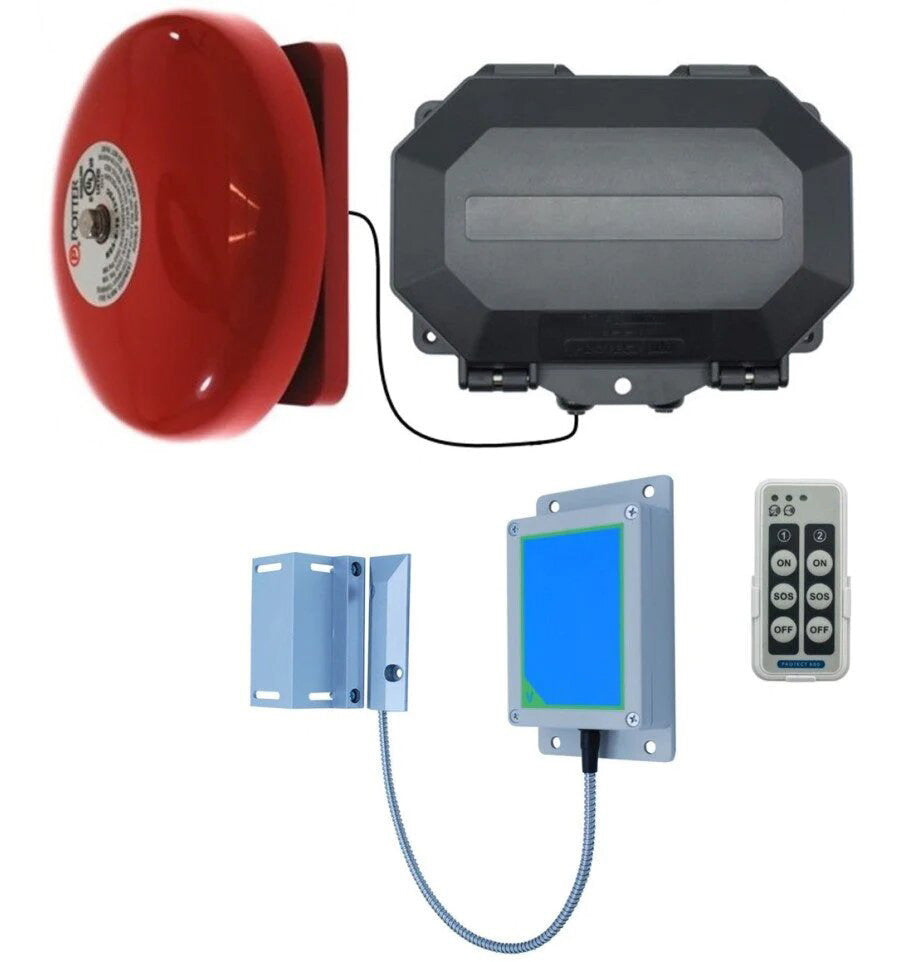

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1) with 12v Plug in Transformer.
• 1 x Remote Control (P800-WSK/1) with Batteries.
• 1 x Wireless Gate Contact Kit (004-4300).
• 1 x Weatherproof Bell.

Specifications:

Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

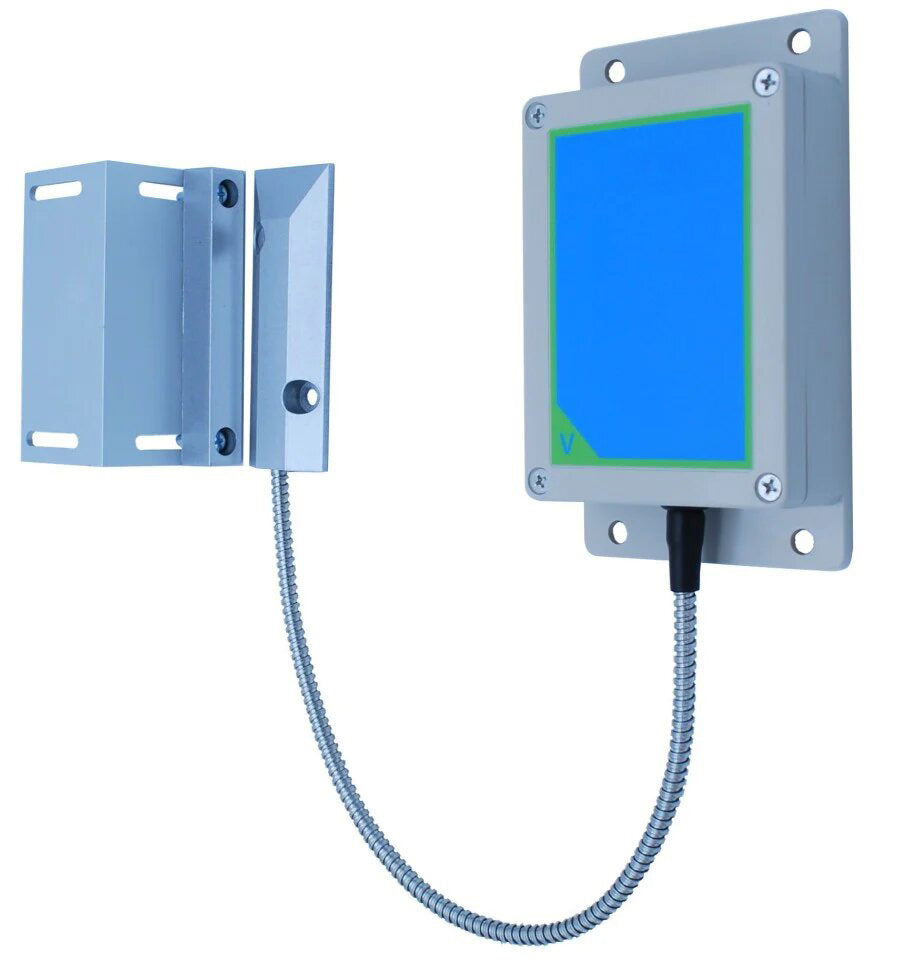

Gate Contact:

Transmitter:

• Wireless Range: 800 metre (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Battery Life: 12 - 18 months (most applications).
• Size: 65 x 33 x 15 mm.
• Activation Methods:
• Wired Input: Yes (N/O Momentary Volt Free, when used as a circuit board).

Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 150 (L) x 85 (W) x 34 (D) mm.
• Internal Size: 106 (L) x 76 (W) x 28 (D) mm.
• Label: V range.

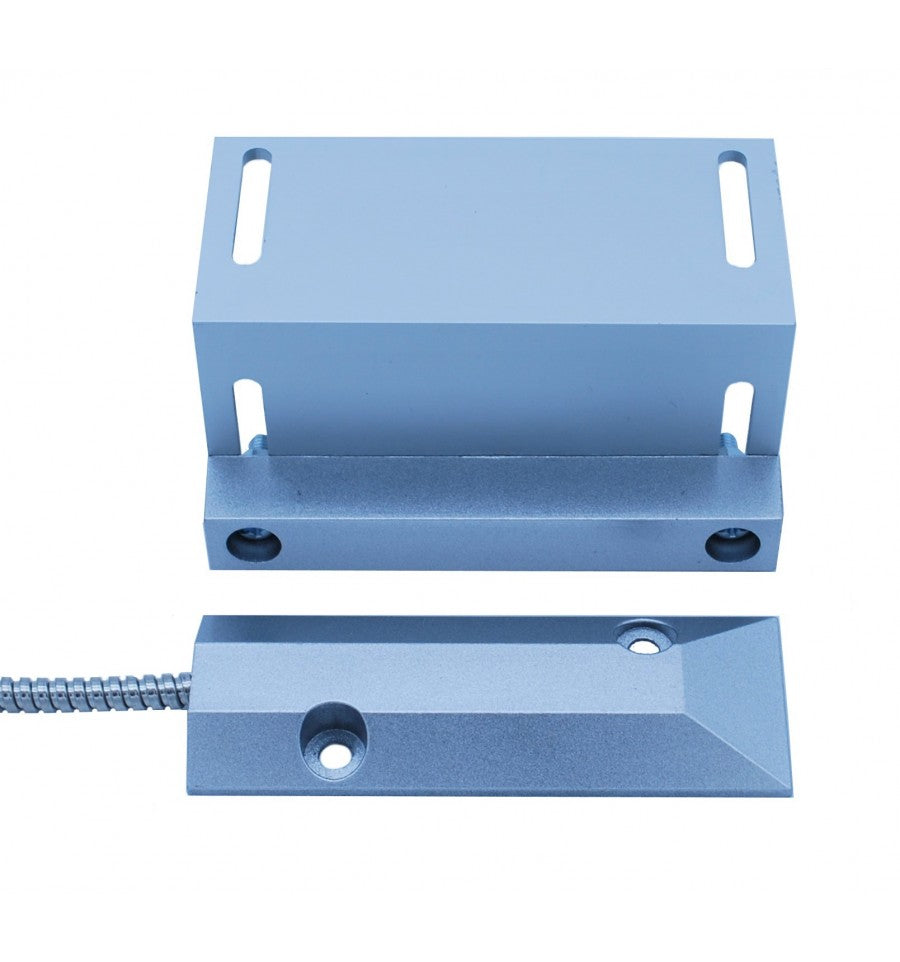

Magnetic Contact:

• Switch Type: Normally Open or Normally Closed.
• Size of Switch: 105 x 37 x 10 mm.
• Cable Length to Switch: 360 mm.
• Cable Protection: Armoured.
• Magnet Size: 105 x 15 x 15 mm.
• Right Hand Bracket Size: 105 x 50 x 50 mm.
• Use with: Gate, Door or Roller Shutter.

Bell:

• Power Supply: 12v DC.
• External: Yes.
• Size: 150 mm Diameter x 60 mm Deep.
• Mounting Bracket: 4 x Holes.
• Volume: Approx 85 Db.
