Long Range Wireless Gate Alarm With Outdoor Receiver & Siren & Flashing Strobe Light


Price:
Sale price£383.23

✔️ Fast Shipping
✔️ In Stock
✔️ Hassle-Free Returns

Our Clients

Description

  • A unique Long Range Protect-800 Magnetic Gate Contact Alarm/Alert with an Outdoor Receiver & Loud Weatherproof Siren & Flashing Strobe Light.
  •  The duration of the Siren is fully adjustable and controlled using a special long range Remote Control. When Armed the Siren will operate for the chosen duration when the Gate is Opened, you can also activate the Siren at any time using the SOS Button on the Remote Control from up to 800 metres away.
How it Works:



  • The Battery powered Transmitter Board is located inside a Weatherproof Box, the operating range back to the Outdoor Receiver is 800 metres (line of sight), which equates to round 400 - 600 metres in most applications.
  •  The Transmitter is powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications.
  • Connected to this Transmitter Box is a Wired Contact with an armoured protective sleeve, the Contact would be fitted to the Gate Post (or door frame or floor if used with door or roller shutter contact).
  • The Magnet would be fitted to the Gate, Door or Roller Shutter Door, it is supplied with an optional right hand mounting bracket to aid installation.
  •  If the Receiver is Armed when the Gate is opened the Siren will operate for the chosen duration, this can be turned off by the owners before the duration has elapsed by using a special long range (800 metre) remote control.
  •  The owner could also trigger the Siren & Strobe using the SOS Button on the Remote Control which could be useful in a Medical or Security emergency or just for Visibility.
  •  In these situations the Siren will stay latched ON until it is turned OFF using the special remote control (more remote controls can be added).
  •  The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.
  •  You could also add an Internal Chime Receiver to the system allowing you to be notified when you are inside the House or Office.

Duration:

The duration of the Siren & Strobe is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

  • 1 second or minute.
  • 3 seconds or minutes.
  • 10 seconds or minutes.
  • 15 seconds or minutes.
  • 20 seconds or minutes.
  • 30 seconds or minutes.
  • Latched ON (until disarmed using the remote control).
Outdoor Receiver:
The Outdoor Receiver has two channels with a 12v Output, each channel can be operated by up to four Protect-800 Sensors, these include:
  • PIR's
  • Vehicle Probes
  • MT Transmitter
  • Gate Contact & Transmitters
  • PIR in a Bird Box
  • Transmitter Board

So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:

  • The loud Siren for 20 seconds when triggered (when armed).
  • A bright 12v DC Floodlight for 10 minutes when triggered (when armed).

Remote Control:

The specially designed remote control supplied with this Outdoor Receiver has the following features:

  • Arm & Disarm either channel on the Outdoor Receiver.
  • Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
  • The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
  • Additional Remote Controls can be added (there is no limit).
  • The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
  • Powered by two standard AAA Batteries (supplied).
Standard Indoor Receivers:
  • You can also add the standard Indoor Receivers to this system allowing you to have notification inside the house (regardless of if the Outdoor Receiver is Armed or Disarmed).
  •  This is a unique Outdoor Receiver which can be used in so many types of applications, not found in any other Driveway Alarm System !!

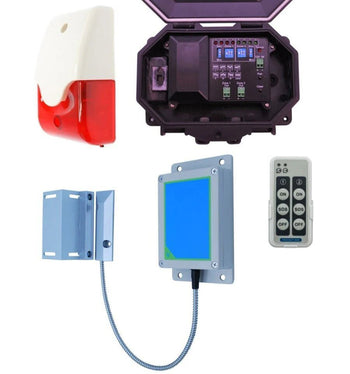

kit Includes:

  • 1 x Outdoor Receiver (P800-WSR/1) with 12v Plug in Transformer.
  • 1 x Remote Control (P800-WSK/1) with Batteries.
  • 1 x Wireless Gate Contact Kit (004-4300).
  • 1 x Weatherproof 100 Decibel Siren & Flashing Strobe Light.

Specifications:

Receiver:

  • Weatherproof: Yes.
  • Power Supply: 12v 5 amp DC.
  • Weatherproof Cable Entry Glands: Yes.
  • Channels: 2.
  • Sensors per Channel: 4.
  • Operating Range: 800 metres (line of sight).
  • Arming & Disarming Method: Remote Control.
  • 12v DC Outputs: 2.
  • Output Duration:
  • 1 second or minute.
  • 3 seconds or minutes.
  • 10 seconds or minutes.
  • 15 seconds or minutes.
  • 20 seconds or minutes.
  • 30 seconds or minutes.
  • Latched ON (until disarmed using the remote control).
  • Duration Selection: Internal Dip-switches.
  • Frequency: 869.400 – 869.650 MHz.
  • Size: 170 x 125 x 60 mm.

Remote Control:

  • Operation:
  • Channel 1 Arm, Disarm & SOS.
  • Channel 2 Arm, Disarm & SOS.
  • Power Supply: 2 x AA Batteries (supplied).
  • Size: 85 x 40 x 25 mm.
  • Transmission Range: 800 metres (line of sight).
  • Multiple Remote Control Operation: Yes (no limit).
  • Feedback Indicator: Yes (it confirms a successful operation).
  • Frequency: 869.400 – 869.650 MHz.
  • Wall Bracket: Yes (supplied).

Gate Contact:

Transmitter:

  • Wireless Range: 800 metre (line of sight).
  • Power Supply: 1 x 3v Lithium CR123A Battery.
  • Battery Life: 12 - 18 months (most applications).
  • Size: 65 x 33 x 15 mm.
  • Activation Methods:
  • Wired Input: Yes (N/O Momentary Volt Free, when used as a circuit board)

Mounting Box:

  • Material: Plastic.
  • Weatherproof: IP65.
  • External Size: 150 (L) x 85 (W) x 34 (D) mm.
  • Internal Size: 106 (L) x 76 (W) x 28 (D) mm.
  • Label: V range.

Magnetic Contact:

  • Switch Type: Normally Open or Normally Closed.
  • Size of Switch: 105 x 37 x 10 mm.
  • Cable Length to Switch: 360 mm.
  • Cable Protection: Armoured.
  • Magnet Size: 105 x 15 x 15 mm.
  • Right Hand Bracket Size: 105 x 50 x 50 mm.
  • Use with: Gate, Door or Roller Shutter

Siren:

  • Siren Level: 100 Decibel.
  • Flashing Strobe: Yes.
  • Size: 70 x 45 x 120mm.
  • Cable: Twin (3 metres).
  • Power Requirements: 12v DC.
  • Colour: Red & White.
  • Internal & External.
