Long Range Driveway PIR Alarm With Outdoor Receiver & Adjustable Siren

• The Siren can be adjusted in volume (0 - 106 Decibels) and in Tone, ideal for applications where you want it to be heard outside (but not to loud).

• The Battery powered Wireless PIR (more can be added) can be located up to 800 metres (which equates to around 400 - 600 metres in most applications) away from the Outdoor Receiver.
• When a person or vehicle passes the PIR a Wireless signal is transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the Adjustable Siren will activate for the chosen duration, volume and tone (this can be turned off by the owners before the duration has elapsed by using a special long range (800 metre) remote control.
• The owner could also trigger the Siren using the SOS Button on the Remote Control in the event of a Medical or Security emergency, in these situations the Siren will stay latched ON until it is turned OFF using the special remote control (more remote controls can be added).

• You could also add an Internal Chime Receiver to the system allowing you to be notified when you are inside the House or Office.

Duration:

The duration of the Siren is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

•  The Outdoor Receiver has two channels with a 12v Output, each channel can be operated by up to four Protect-800 Sensors, these include:
• PIR's
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board

So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:

• The Siren for 20 seconds when triggered (when armed).
• A bright 12v DC Floodlight for 10 minutes when triggered (when armed).

Remote Control:

• The specially designed remote control supplied with this Outdoor Receiver has the following features:
• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
• Powered by two standard AAA Batteries (supplied).

PIR:

Additional Battery Powered Wireless PIR for the Protect 800 Wireless Driveway Alert System, packed full of features including:

• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Sunshade & Rain Hood.
• Lens size adjusting Caps (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

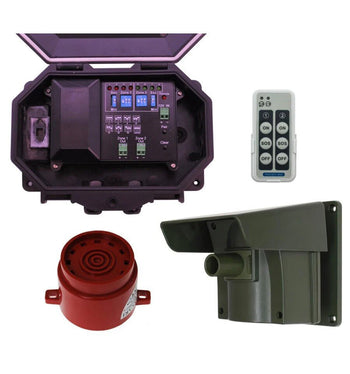

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.
• 1 x Adjustable Siren.

Specifications:

Outdoor Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

PIR:

• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.

Siren:

• Weatherproof: Yes.
• Decibel Level: Adjustable (0 - 106 Decibel).
• Tone: Adjustable.
• Colour: Red.
• Voltage Input: 12v DC.
