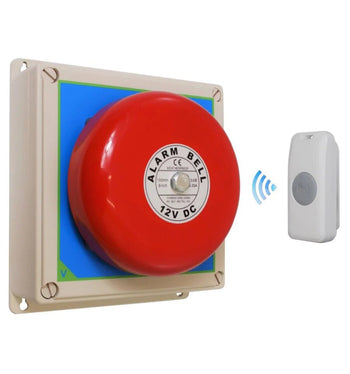

Long Range 800 Metre Wireless Bell Kit

• Long Range (800 metre) Wireless Bell Kit (protect 800), supplied with a Battery Powered Push Button and Plug in Wireless Bell assembly (ideal for Internal or External commercial applications).

Ideal for many applications including:

• Farm Yards.
• Stables.
• Business Premises.

Push Button:

• The Transmission range between the Battery Push Button & Wireless Bell is an impressive 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.
• Additional Push Buttons can be added to cover different entrances, these are powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications.
• The Push Buttons are weatherproof (IP56), if it is to be exposed to extreme weather we recommend looking at the H/D Push Button model.

Wireless Bell:

• The Wireless Bell assembly can be mounted either Indoors or Outdoors, and is powered by a 3-pin plug in transformer, additional Bells can be added (there is no limit), together with the option of adding Wireless Chime Receivers which may be suitable in offices or homes.

Operation:

• When the H/D Push Button is pressed, the Receiver will activate the 85 Decibel Bell for either 5, 30 & 60 seconds.

Installation Guide:

These Bell Systems are very Easy to Install, the basic process would be:

1. Mount the Push Button.
2. Mount the Bell Assembly (4-screws).
3. Connect the Plug in Transformer for the Bell, into a standard 3-pin wall socket.

Additional Accessories:

You could add a multitude of additional accessories with this Bell System, options include:

• Additional Bells.
• Chime Receivers.
• Portable Push Buttons.
• Indoor Push Buttons.
• PIR's.
• Wall SOS Buttons.
• This Doorbell Kit can also be used with Outdoor Wireless Alarm Sensors allowing you to have a Wireless Doorbell & Wireless Driveway Alarm System all in one system.
• Please Contact Us for Advice !!

kit Includes:

• 1 x Wireless Bell Assembly (Protect 800).
• 1 x 3-pin (UK) & 2-pin (EU) Plug in Power Supply.
• 1 x Push Button Assembly.
• 1 x Wall Mount.
• 1 x Optional Belt Clip.
• 1 x Optional Lanyard.
• 1 x 3v Lithium CR123A Battery.

Specifications:

Wireless Bell Receiver:

• Power Supply: 3-pin Plug in Transformer (2-pin available upon request).
• Power Supply Input: 12v DC (1 amp).
• External: Yes.
• Size: 150 mm Diameter x 60 mm Deep.
• Mounting Bracket: 4 x Holes.
• Volume: Approx 85 Db.
• Internal Wireless Receiver: Protect 800.
• Transmission Range: 800 metre (line of sight).
• Bell Duration: 30 seconds (can be changed to 5, 30 & 60 seconds or 10 minutes).

Push Button:

• Wireless Range: 800 metre (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Battery Life: 12 - 18 months (most applications).
• Size without Brackets: 87 x 37 x 30 mm.
• Size with Wall Bracket: 90 x 44 x 30 mm.
• Size with Belt Clip:  87 x 37 x 35 mm.
• Colour: White.
• Activation Methods: Push Button.
• IP: Yes (56).
• Mounting Methods: Wall or Desk
