Long Range 800 Metre Wireless Adj Siren Kit

• Long Range (800 metre) Wireless Siren Kit (protect 800), supplied with a Battery Powered Push Button and Plug in Wireless Adjustable Siren & Flashing LED assembly (ideal for Internal or External commercial applications).
• The Siren can be adjusted in Volume (0 to 106 Decibels) & Tone (32 options) to suit your Environment !!

Ideal for many applications including:

• Visitor Siren for Warehouses, Factories, Farm Yards etc.
• Call (panic) Button for Business Premises.

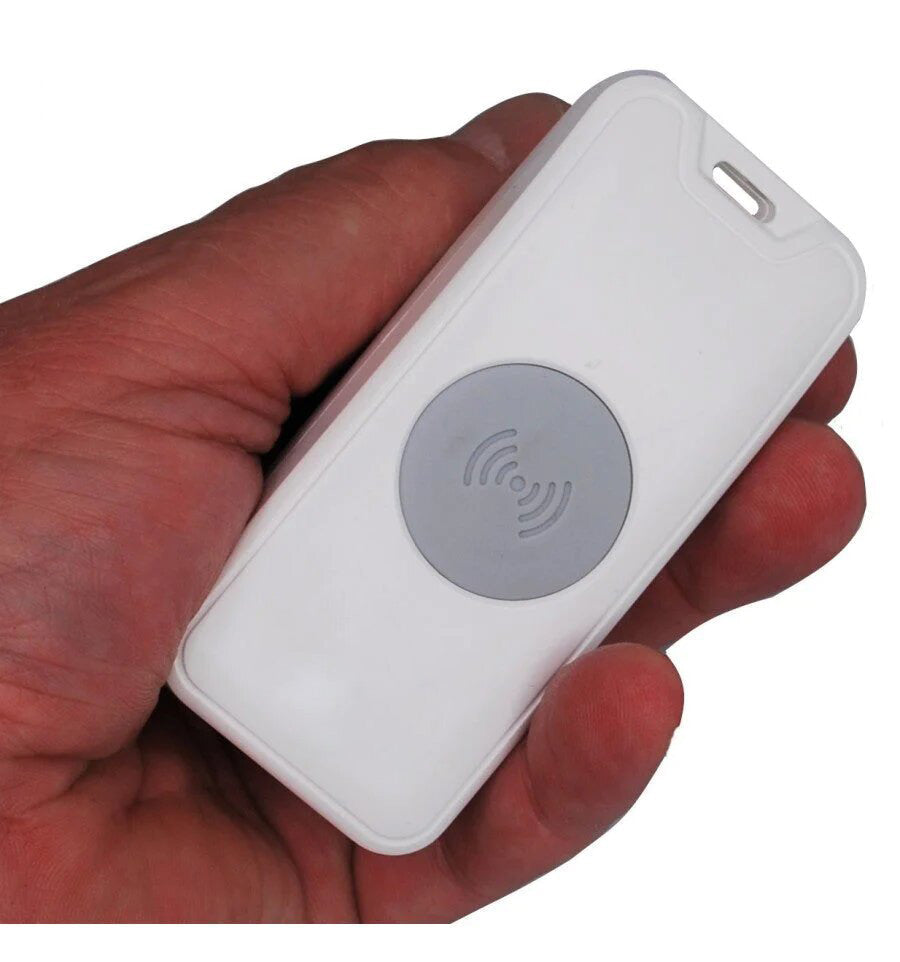

Push Button:

• The Transmission range between the Battery Push Button & Wireless Siren is an impressive 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.
• Additional Push Buttons can be added to cover different entrances, these are powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications.
• The Push Buttons are weatherproof (IP56), if they are to be exposed to extreme weather we recommend looking at the H/D Push Button model.
• They could also be removed from the wall mounting bracket (one top locking screw) should you need to use it as a portable device at any time.

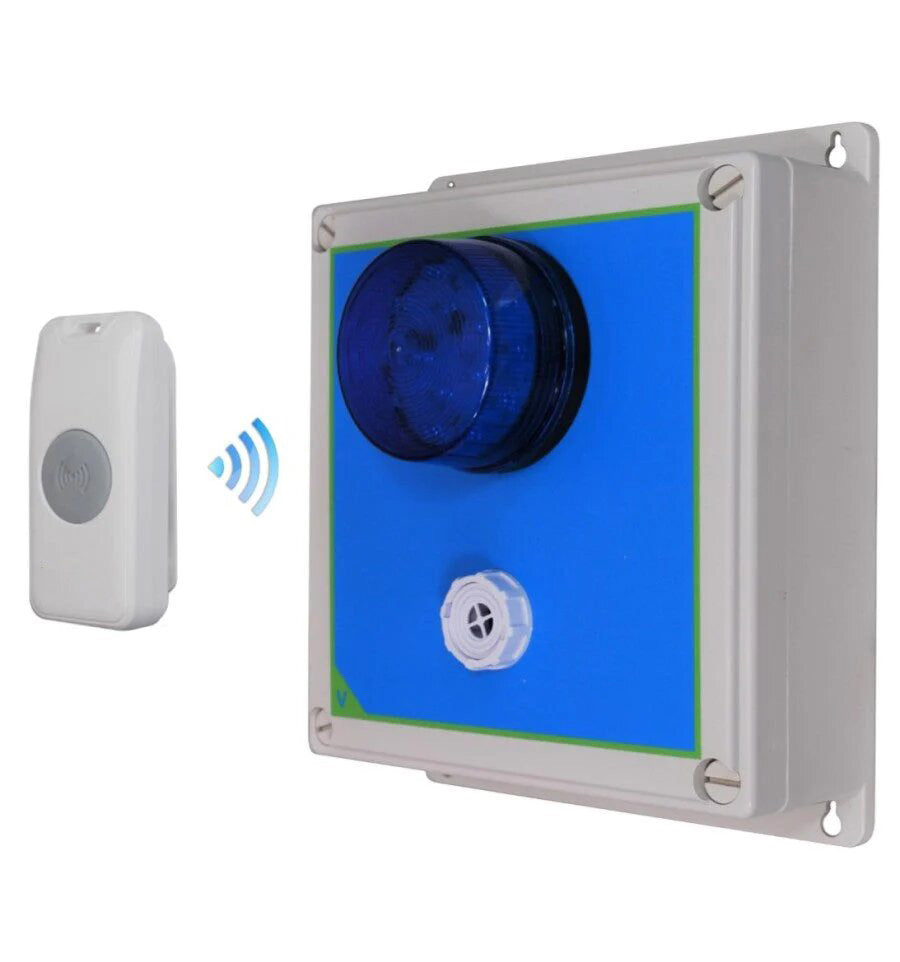

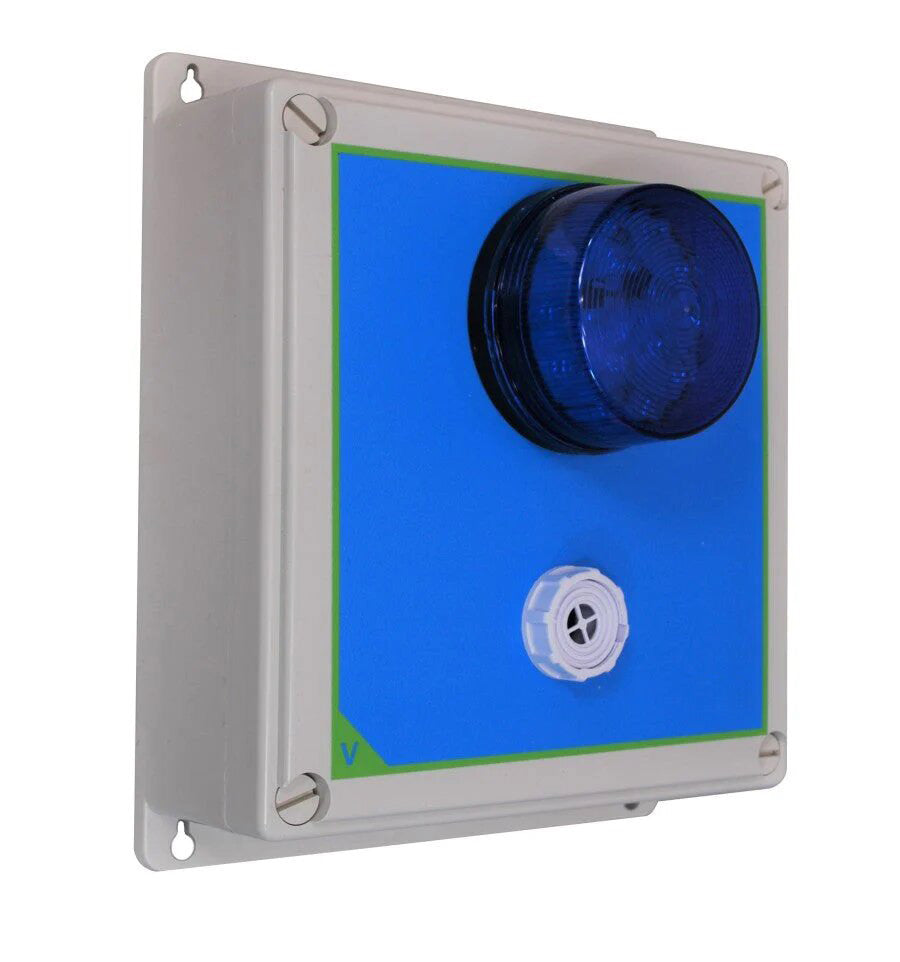

Wireless Siren:

• The Wireless Siren & Flashing LED can be used Outside (fully weatherproof) or Inside and is powered by a 3-pin plug in transformer, additional Siren Assemblies can be added (there is no limit), together with the option of adding Wireless Chime Receivers which may be suitable in offices or homes.
• The Siren has volume control up to 106 Decibels and a choice of 32 different tones allowing you to select the one most suitable for your environment.
• The easy to mount weatherproof box is simply fitted to the wall using 4 x screws through the side mounted lugs.
• The Siren & Blue Flashing LED can be programmed to operate for 5, 30 & 60 seconds or 10 minutes when a signal is received from the Push Button.

Additional features are:

• Optional Battery Back Up using 4 x AAA Batteries (not supplied).
• Up to 16 Push Buttons & Transmitters can be Used.
• Multiple Receivers can be used (no limit).
• 1 x Dry Relay Outputs (could be used to to trigger other devices).

Operation:

• When the Push Button is pressed, the Receiver will activate the chosen Siren sound & Flashing LED for either 5, 30 & 60 seconds or 10 minutes.

Installation Guide:

This Wireless Siren Systems is very Easy to Install, the basic process would be:

1. Mount the Push Button.
2. Choose the Siren Sound & Duration.
3. Mount the Siren Assembly (4-screws).
4. Connect the Plug in Transformer for the Siren (into a standard 3-pin wall socket).

Additional Accessories:

You could add a multitude of additional accessories with this Siren System, options include:

• Additional Bells.
• Chime Receivers.
• Portable Push Buttons.
• Indoor Push Buttons.
• PIR's.
• Wall SOS Buttons.
• This Kit can also be used with Outdoor Wireless Alarm Sensors allowing you to have a Wireless Doorbell & Wireless Driveway Alarm System all in one system.
• Please Contact Us for Advice !!

kit Includes:

• 1 x Protect 800 Driveway Alert Wireless Receiver.
• 1 x Weatherproof Mounting Box.
• 1 x Adjustable Siren.
• 1 x Blue Flashing LED.

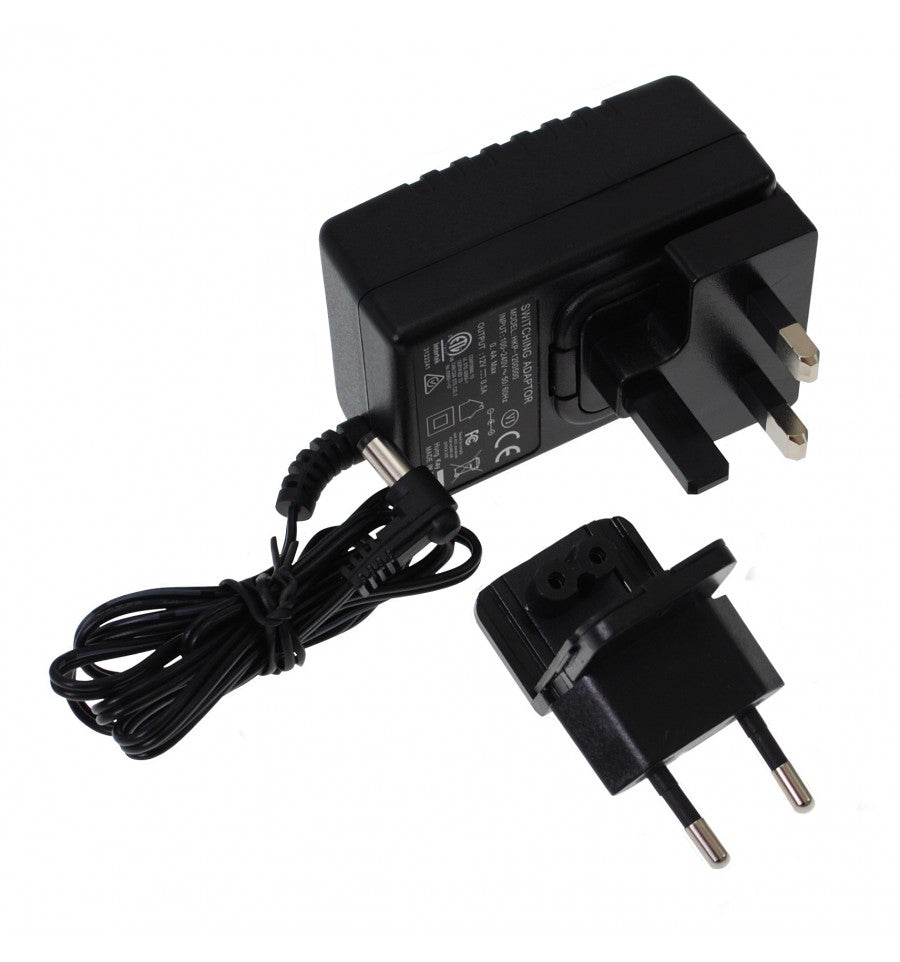

• 1 x 3-pin (UK) & 2-pin (EU) Plug in Power Supply.
• 1 x V Range Labels.
• 1 x Wireless Doorbell Push Button (protect 800).
• 1 x Top Mounting Screw.

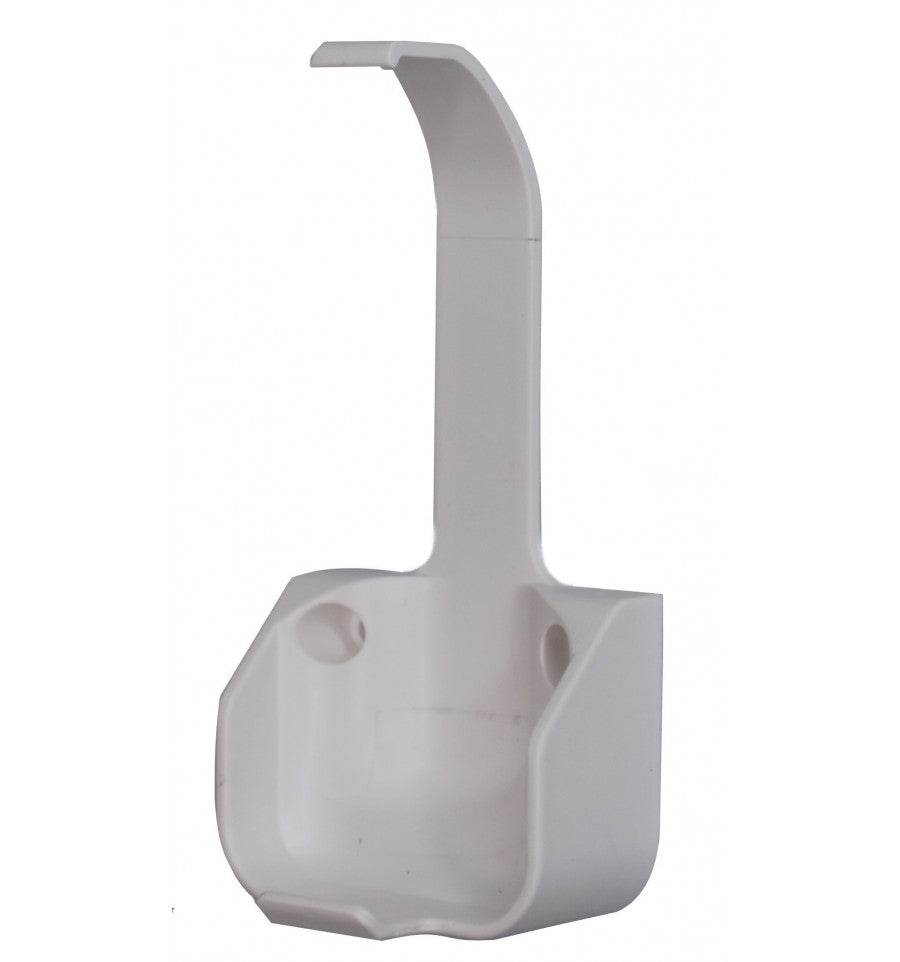

• 1 x Wall Mount.
• 1 x Optional Belt Clip.

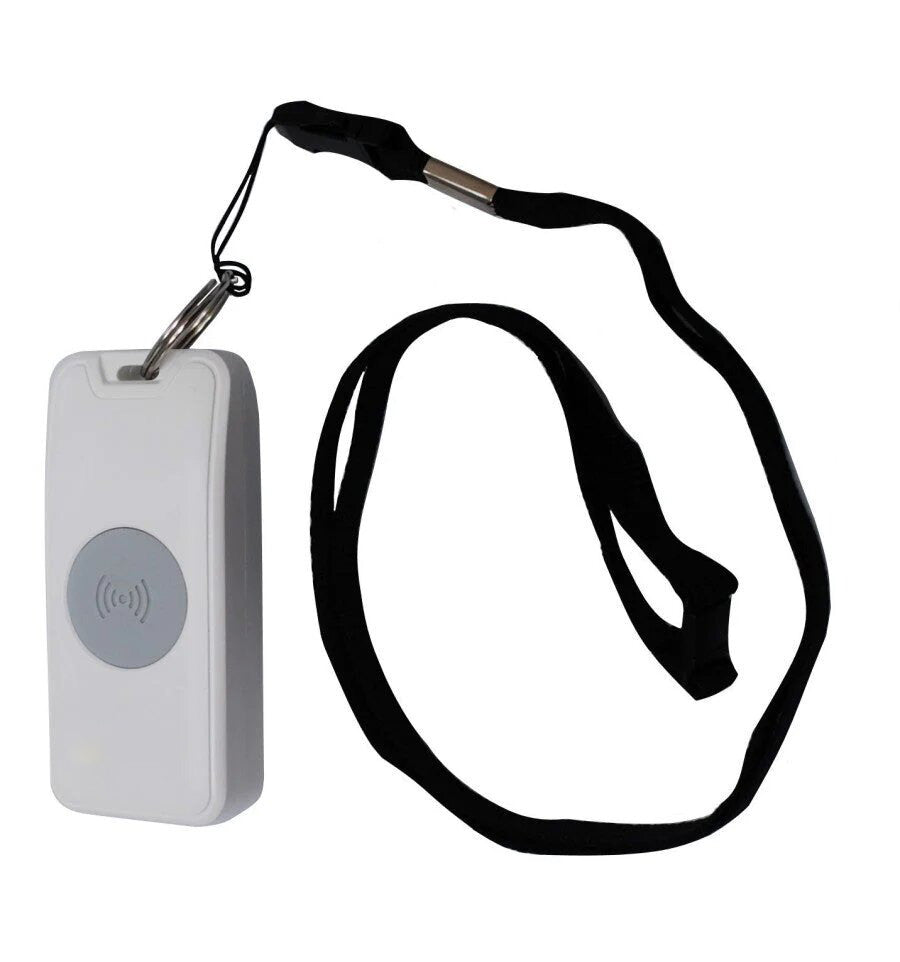

• 1 x Optional Lanyard.
• 1 x 3v Lithium CR123A Battery.

Specifications:

Siren Assembly:

Receiver:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.
• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
• Battery Backup: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Outputs: 4 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration for Bell (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.
• Label: V Range.

Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 225 (W) x 185 (H) x 70 (D) mm.
• Internal Size: 185 (W) x 185 (H) x 65 (D) mm.

Siren:

• Colour: White.
• Input Voltage: 9 - 28v DC.
• Weatherproof: Yes (IP65).
• Siren Tones: 32 (selectable).
• Volume Control: Yes (106 Decibel to zero).
• Size:
• Rear Diameter: 50 mm.
• Front Diameter: 25 mm.
• Overall Height: 45 mm.
• Depth of Body: 32 mm.
• Mounting Method: Front Mounted Screw.

Flashing LED:

• Colour: Blue.
• Voltage: 9 - 12v DC.
• Diameter: 75 mm.
• Depth: 55 mm.

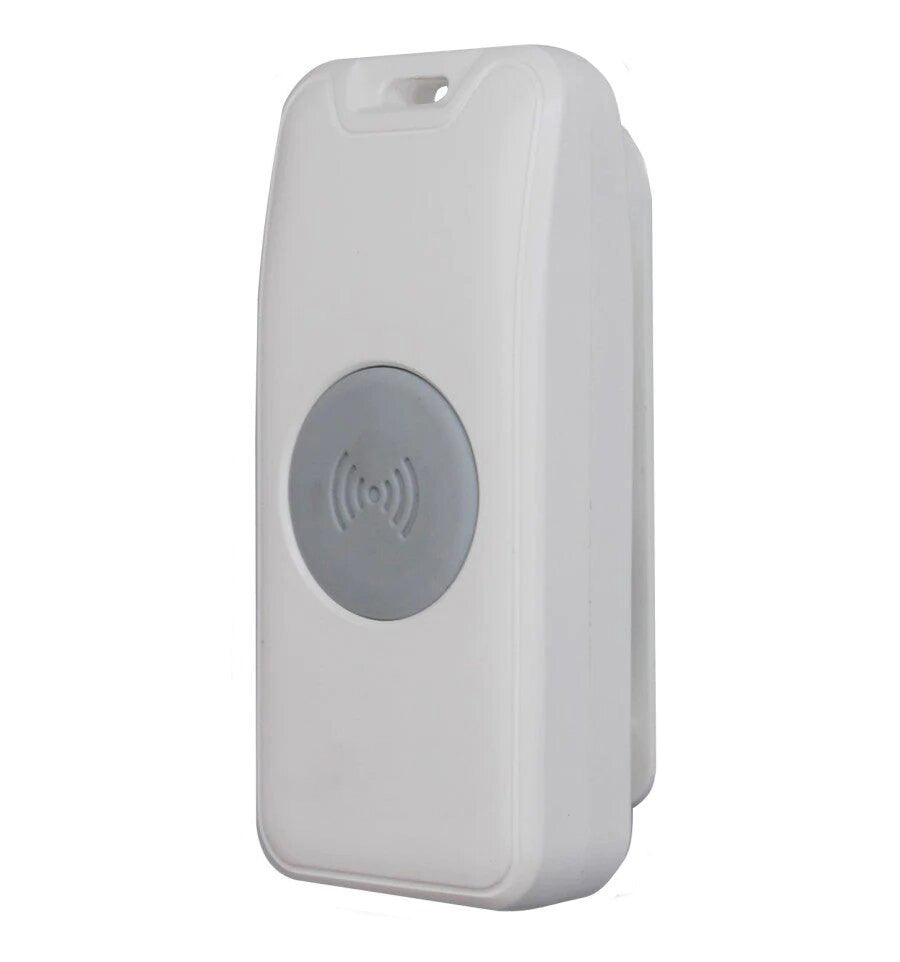

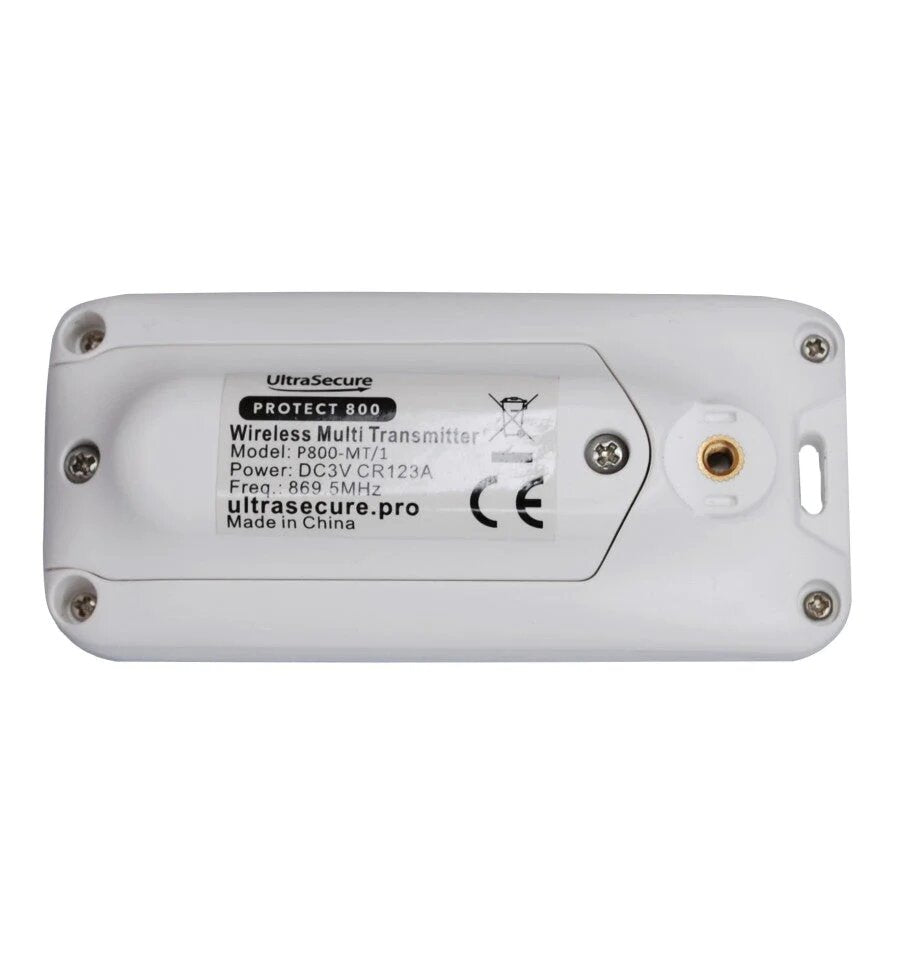

Push Button:

• Wireless Range: 800 metre (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Battery Life: 12 - 18 months (most applications).
• Size without Brackets: 87 x 37 x 30 mm.
• Size with Wall Bracket: 90 x 44 x 30 mm.
• Size with Belt Clip:  87 x 37 x 35 mm.
• Colour: White.
• Activation Methods: Push Button.
• IP: Yes (56).
• Mounting Methods:
• Wall.
• Optional Belt & Pocket.
• Optional Lanyard.
