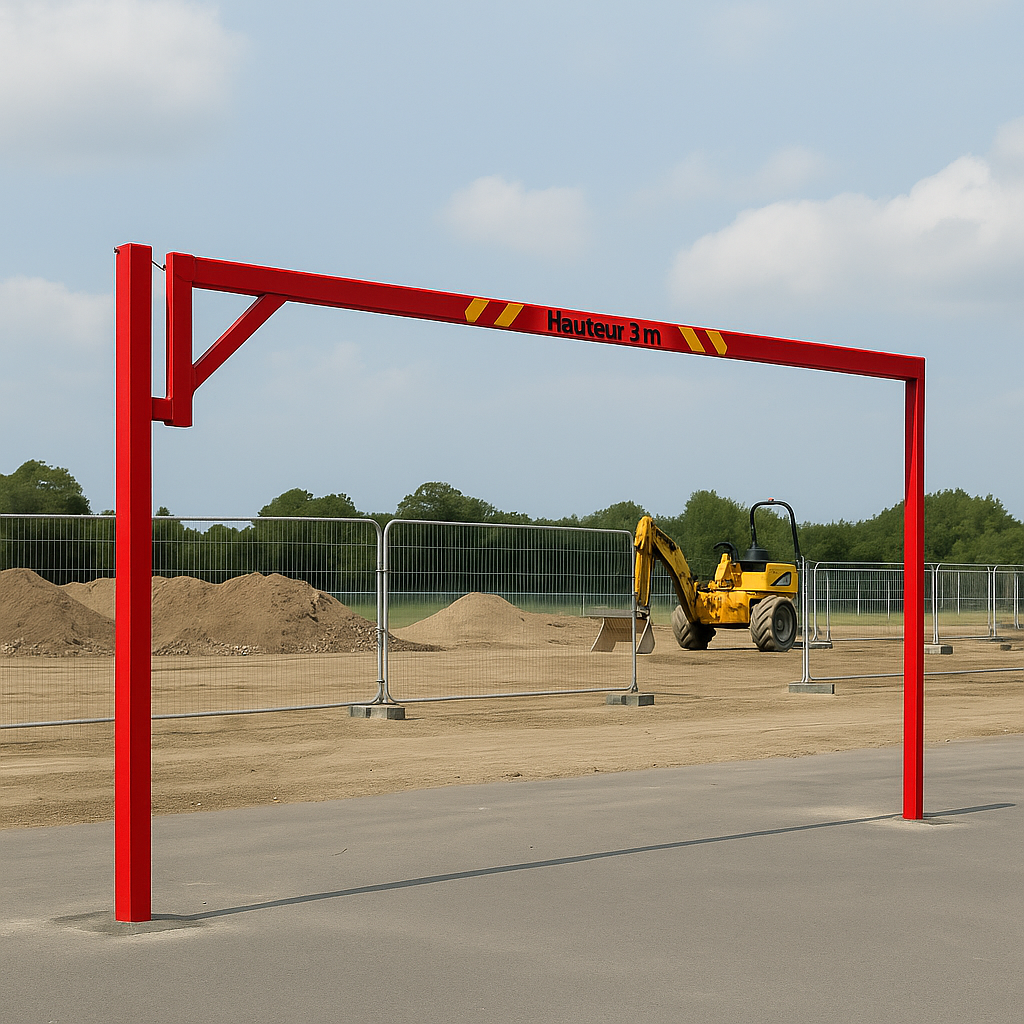

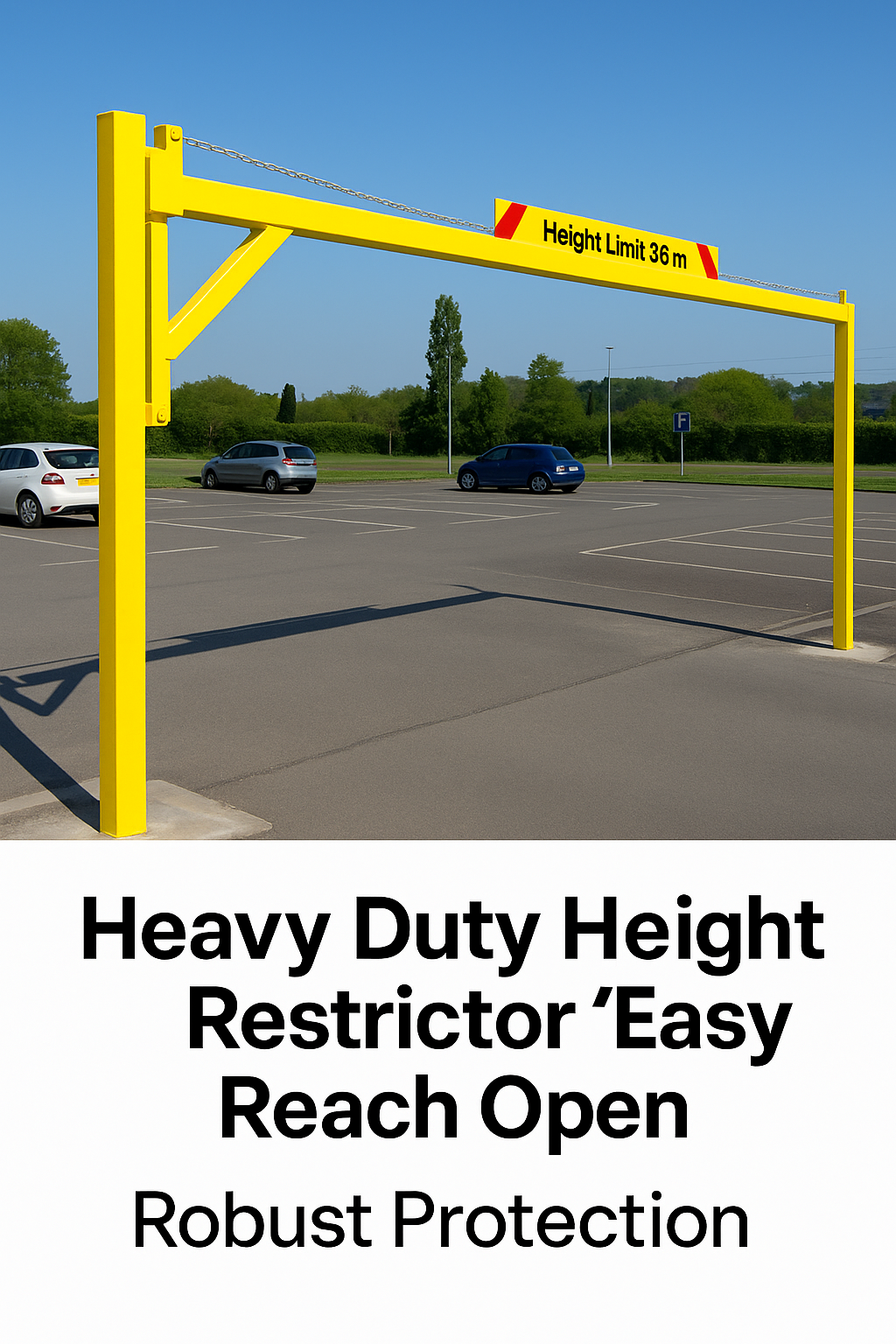

Heavy Duty Open Height Restrictor 3–6m – Easy Reach Arm

The  Easy Reach Open Height Restrictor is a reliable, heavy-duty barrier designed to prevent unauthorised access by tall vehicles to restricted areas like car parks, shopping centres, recreational grounds, and more.

Engineered for durability and user convenience, this single leaf height restrictor comes with a hinge post and latch post to secure the gate in the closed position. Its innovative drop lock design enables easy chest-height operation — eliminating the need to reach or bend awkwardly.

Key Features & Benefits:

• Drop Lock Facility: Operate the gate with ease at chest height.
• Galvanised Adjustable Eyebolts: Fine-tune alignment during installation for a perfect fit.
• Flexible Fixing Options: Choose between sunken (concrete-in) or surface-mounted (bolt-down) setups — with concrete-in recommended for maximum security.
• Latch Back Posts (Optional): Keep the gate open securely; features lockable design and adjustable latch post positioning — ideal for tight spaces.
• Custom Finishes Available: Galvanised, powder-coated, or dual-finish (galvanised + powder-coated) available on request.

Specifications:

• Hinge Post: 100 x 100mm Box Section
• Latch Back Post: 100 x 100mm Box Section (Optional)
• Barrier Arm: 100 x 60 x 3mm Box Section
• Concrete-In Depth: 760mm
• Bolt-Down Holes: 18mm diameter (fixings not supplied)
• Opening Range: Up to 180° (dependent on hinge placement)
• Finish Options: Custom colours and coatings on request

Note: This product is made to order. Sizing confirmation may be required before manufacturing begins.
