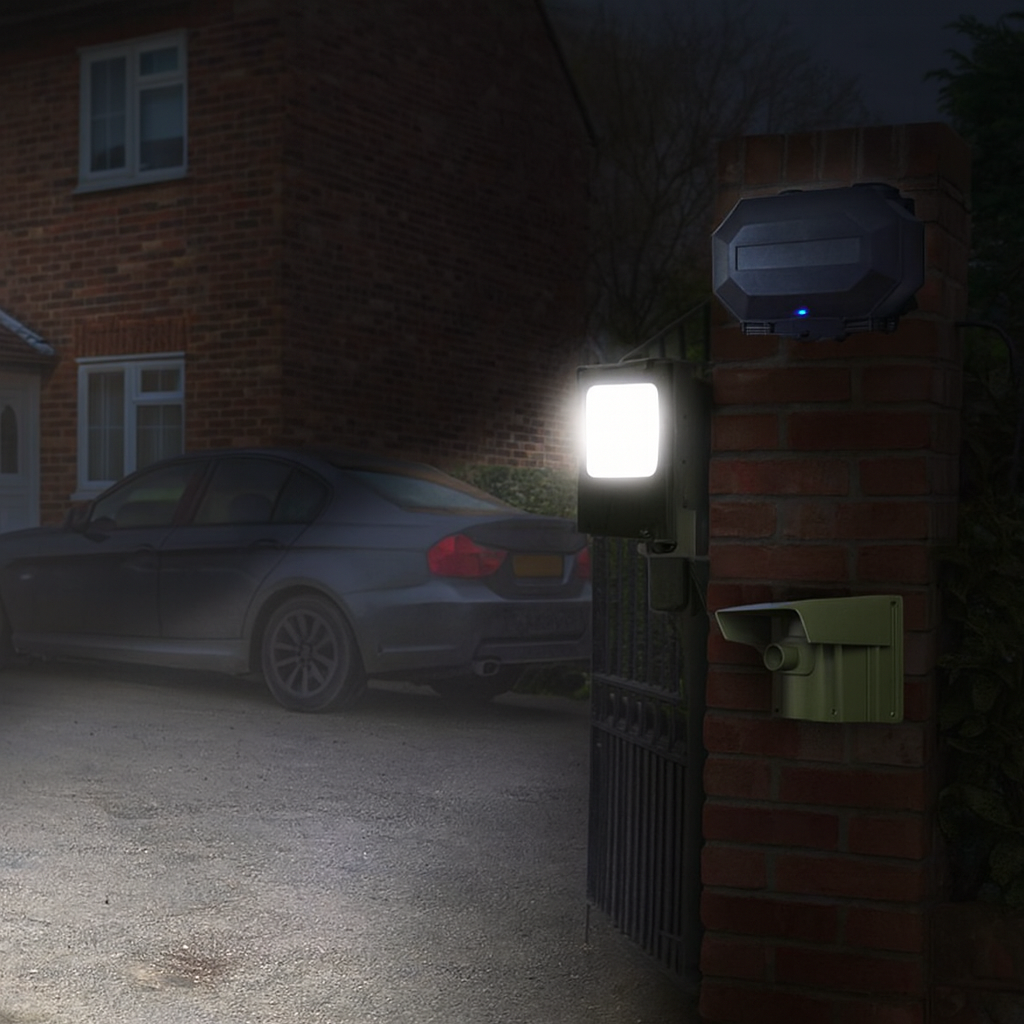

Floodlight Long Range Driveway PIR Alarm With Outdoor Receiver

• A unique Long Range Protect-800 Driveway PIR Alarm with an Outdoor Receiver & Bright Floodlight.
• The duration of the Floodlight is fully adjustable and controlled using a special long range Remote Control. When Armed the Floodlight will trigger for the chosen duration when the PIR detects movement, you can also activate the Floodlight at any time using the SOS Button on the Remote Control from up to 800 metres away.

• The Battery powered Wireless PIR (more can be added) can be located up to 800 metres (which equates to around 400 - 600 metres in most applications) away from the Outdoor Receiver.
•  When a person or vehicle passes the PIR a Wireless signal is transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the Floodlight will activate for the chosen duration (this can be turned off by the owners before the duration has elapsed by using a special long range (800 metre) remote control.
•  The owner could also trigger the Floodlight using the SOS Button on the Remote Control which could be useful in a Medical or Security emergency or just for Visibility.
•  In these situations the Floodlight will stay latched ON until it is turned OFF using the special remote control (more remote controls can be added).
• The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.

•  You could also add an Internal Chime Receiver to the system allowing you to be notified when you are inside the House or Office.

Duration:

The duration of the Floodlight is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

PIR:

Additional Battery Powered Wireless PIR for the Protect 800 Wireless Driveway Alert System, packed full of features including:

• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Sunshade & Rain Hood.
• Lens size adjusting Caps (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness)

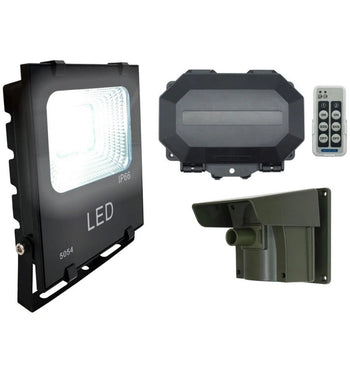

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.
• 1 x 12v Floodlight.

Specifications:

Outdoor Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

PIR:

• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.

Floodlight:

• Voltage: 12v DC.
• Watts: 20.
• Colour: Black.
• Mounting Bracket: Adjustable.
• Size: 155 (w) x 180 (h) x 65 (d) mm.
