Floodlight Long Range Driveway PIR Alarm With Outdoor & Indoor Receiver

• A unique Long Range Protect-800 Driveway PIR Alarm with an Outdoor Receiver & Bright Floodlight also supplied with an Indoor Chime Receiver.
•  The duration of the Floodlight is fully adjustable and controlled using a special long range Remote Control. When Armed the Floodlight will trigger for the chosen duration when the PIR detects movement, you can also activate the Floodlight at any time using the SOS Button on the Remote Control from up to 800 metres away.

• The Battery powered Wireless PIR (more can be added) can be located up to 800 metres (which equates to around 400 - 600 metres in most applications) away from the Outdoor Receiver.
•  When a person or vehicle passes the PIR a Wireless signal is transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the Floodlight will activate for the chosen duration (this can be turned off by the owners before the duration has elapsed by using a special long range (800 metre) remote control.
•
• The owner could also trigger the Floodlight using the SOS Button on the Remote Control which could be useful in a Medical or Security emergency or just for Visibility.
•  In these situations the Floodlight will stay latched ON until it is turned OFF using the special remote control (more remote controls can be added).

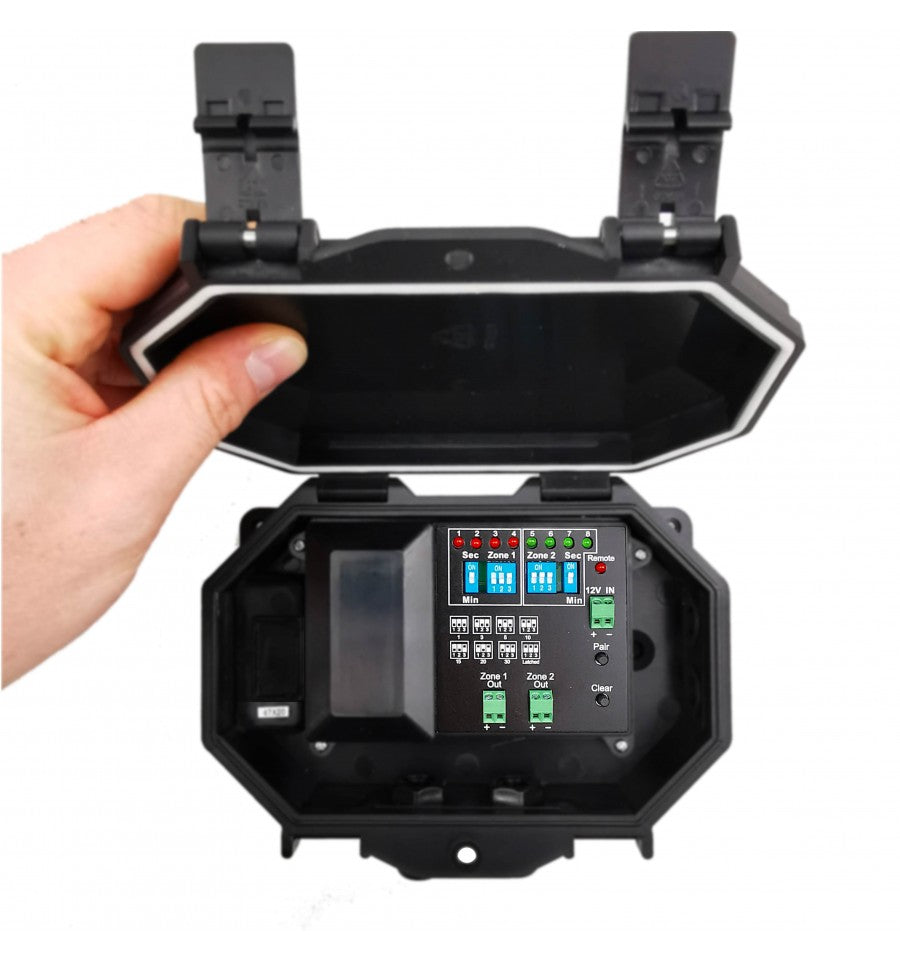

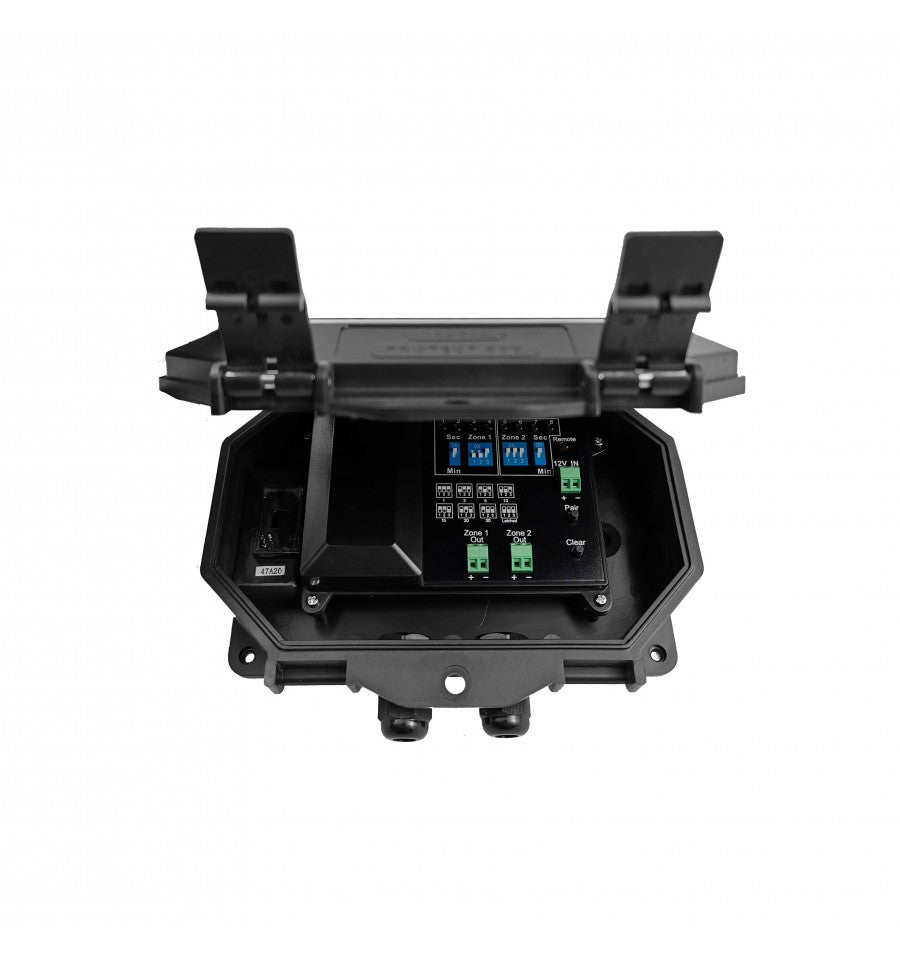

• The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.

•  There is also an additional 4 channel Internal Receiver which will notify you of an activation inside the property, this Receiver has 32 chimes & sirens to choose from (ranging from low chirps to loud sirens with different durations), volume control and a simple ON/OFF Button and more.

Duration:

• The duration of the Floodlight is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

• PIR's
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board
• So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:
• The loud Siren for 20 seconds when triggered (when armed).
• A bright 12v DC Floodlight for 10 minutes when triggered (when armed).

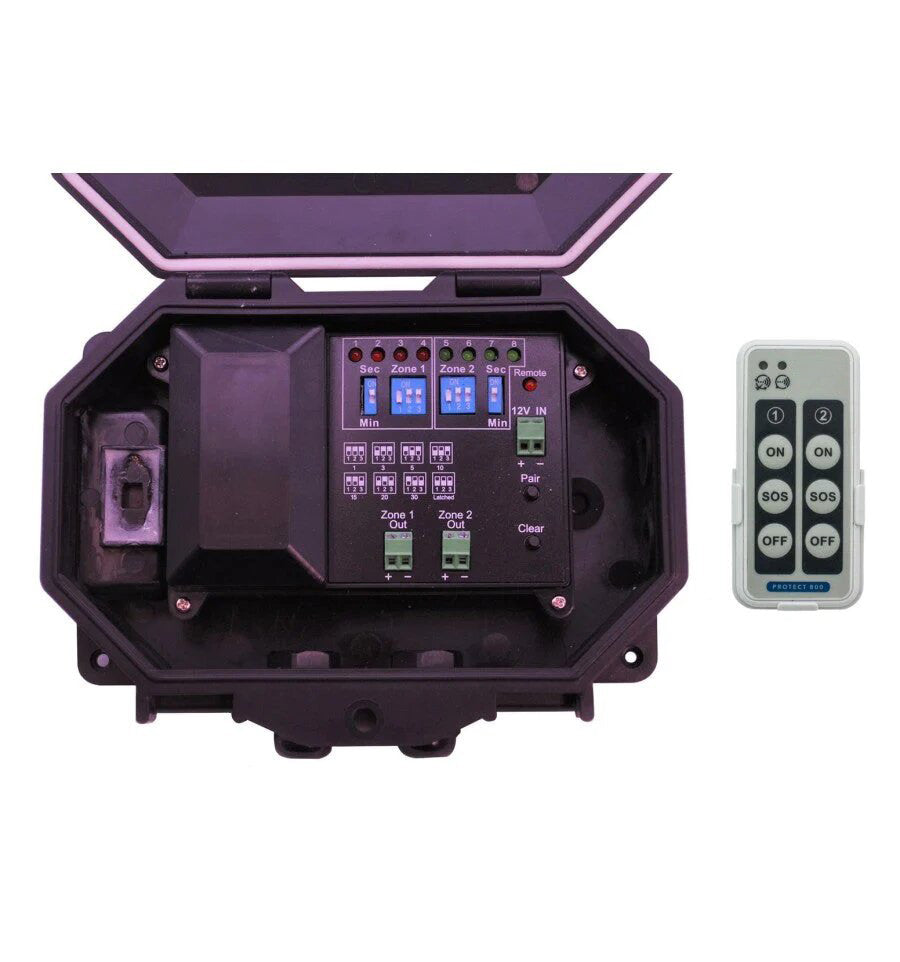

Remote Control:

• The specially designed remote control supplied with this Outdoor Receiver has the following features:
• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.
• Powered by two standard AAA Batteries (supplied).

Indoor Receiver:

PIR:

Additional Battery Powered Wireless PIR for the Protect 800 Wireless Driveway Alert System, packed full of features including:

• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Sunshade & Rain Hood.

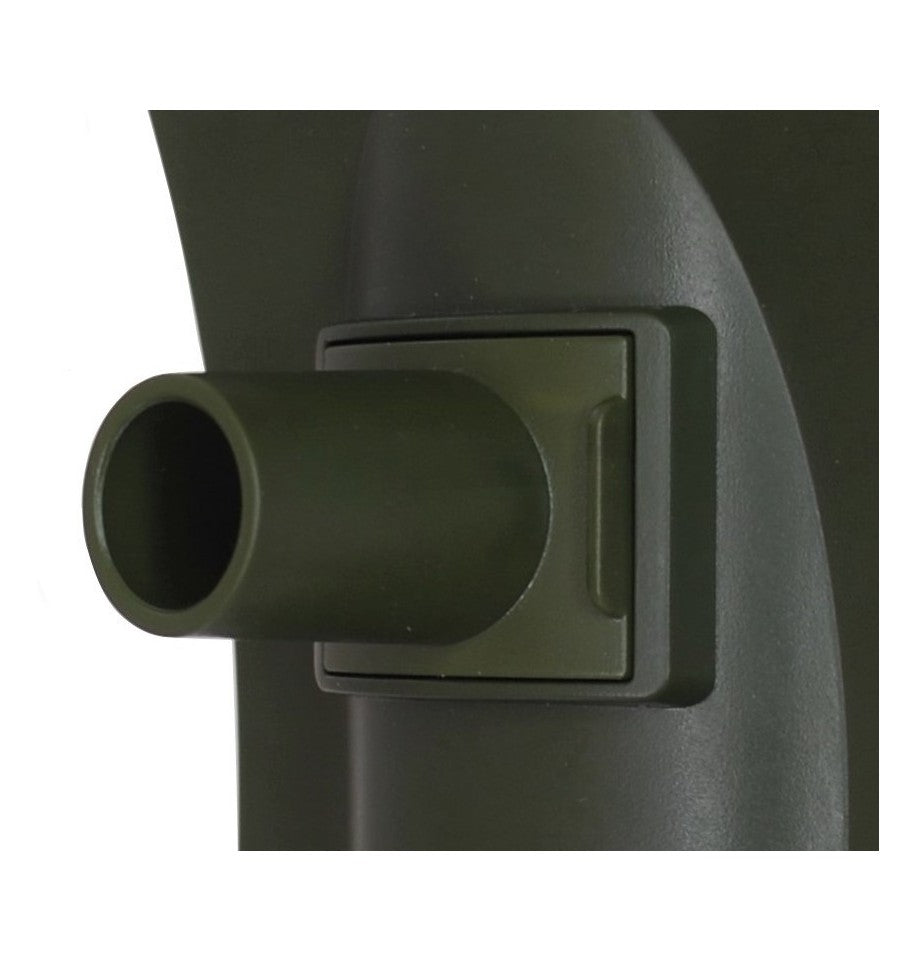

• Lens size adjusting Caps (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.
• 1 x 12v Floodlight.
• 1 x 4-channel Indoor Receiver & Power Supply.

Specifications:

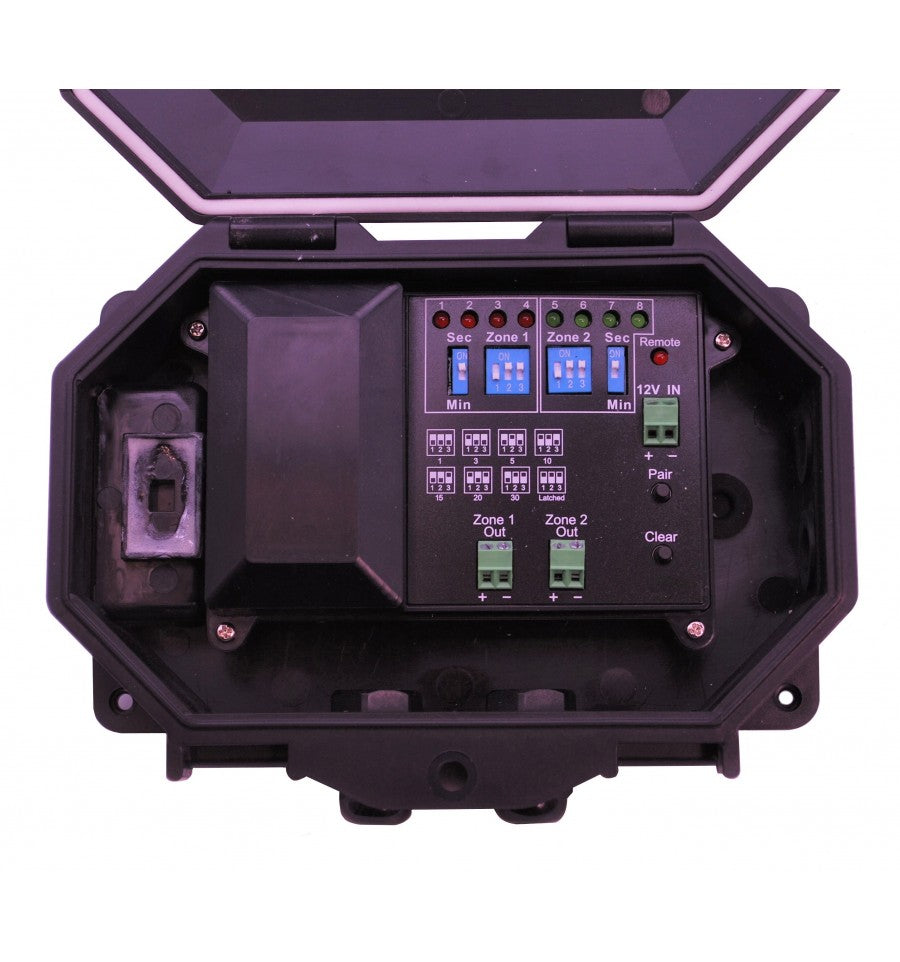

Outdoor Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

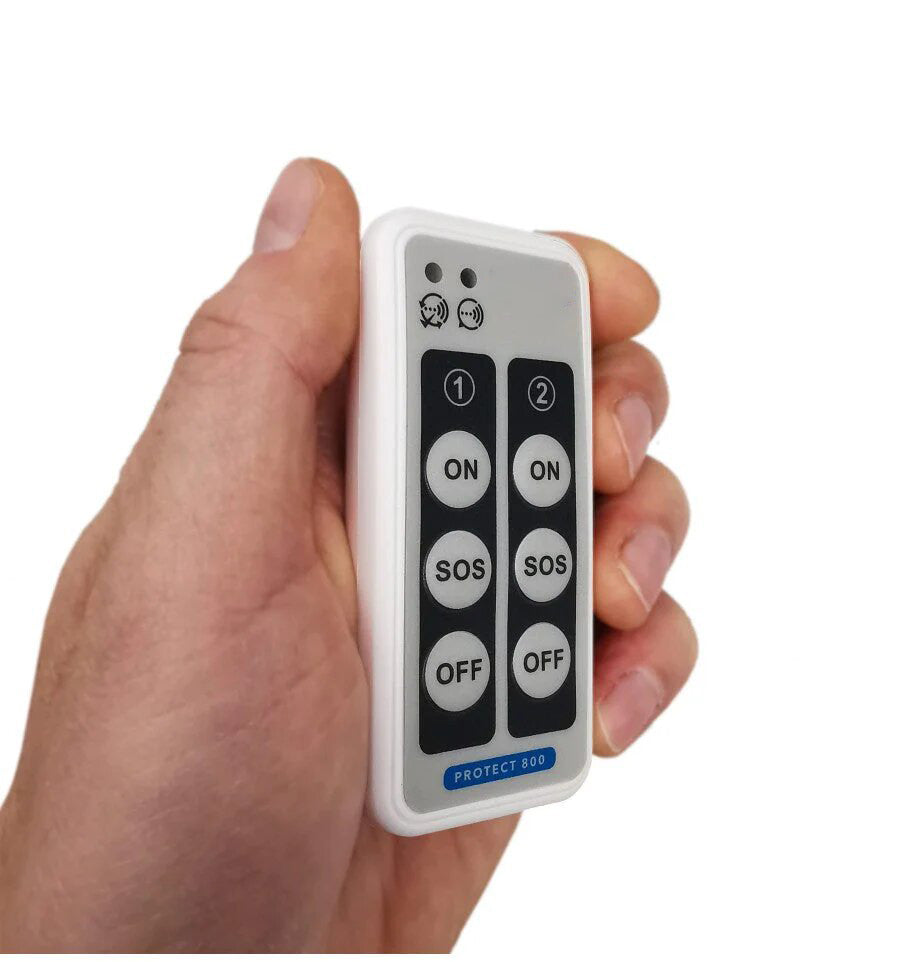

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied)

PIR:

• Protect 800 Wireless Driveway Alert PIR.
• Mounting Bracket.
• 4 x AA Batteries.
• 1 x Removable Sun & Rain Hood.
• 1 x set of Removable Detection Caps.
• 1 x Screwdriver.
• 1 x Set of Screws.

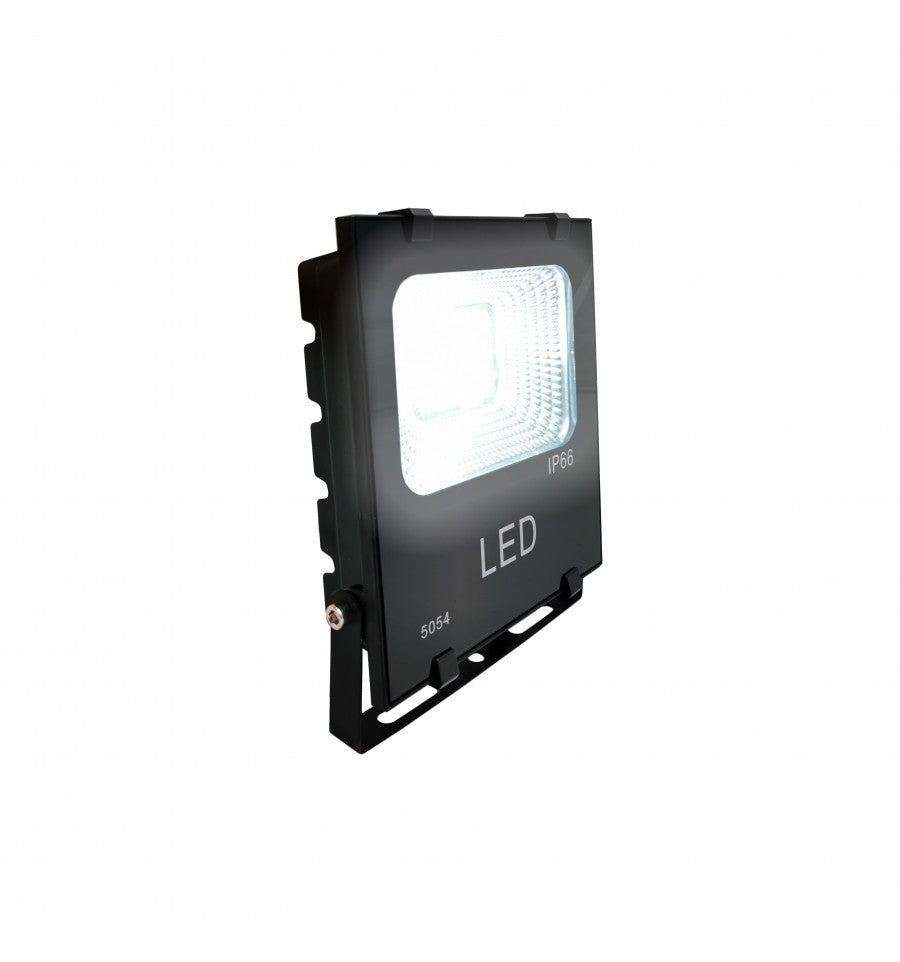

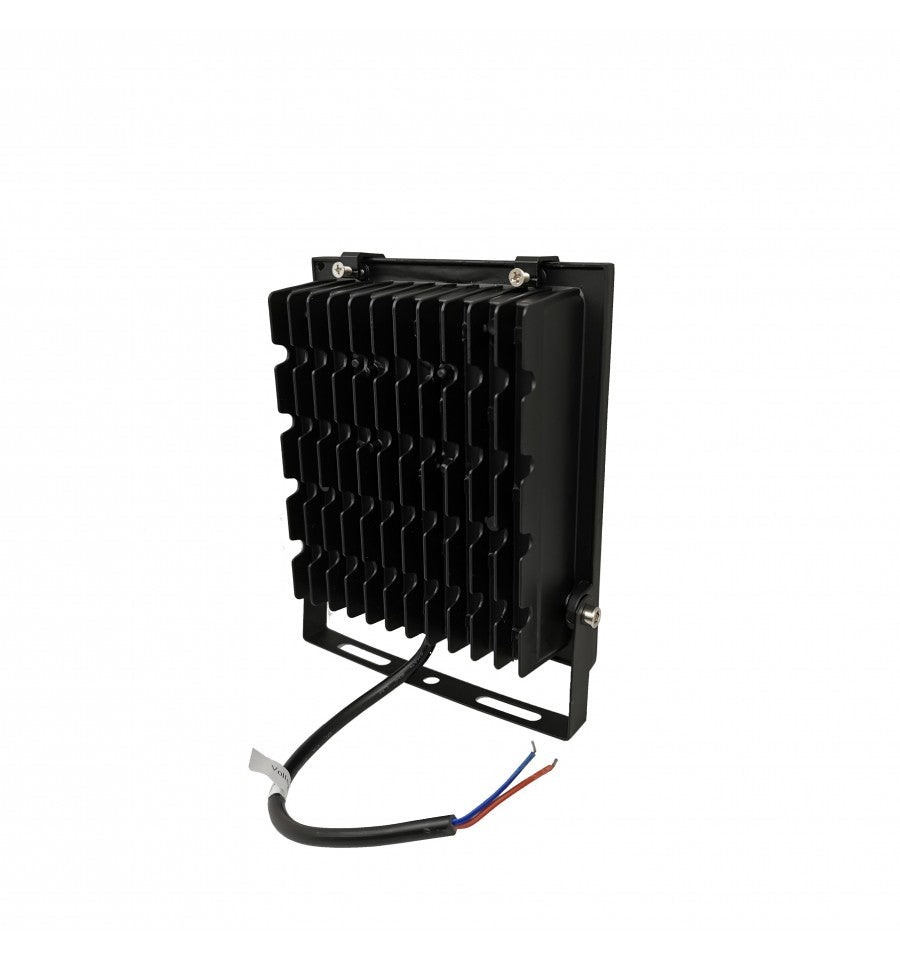

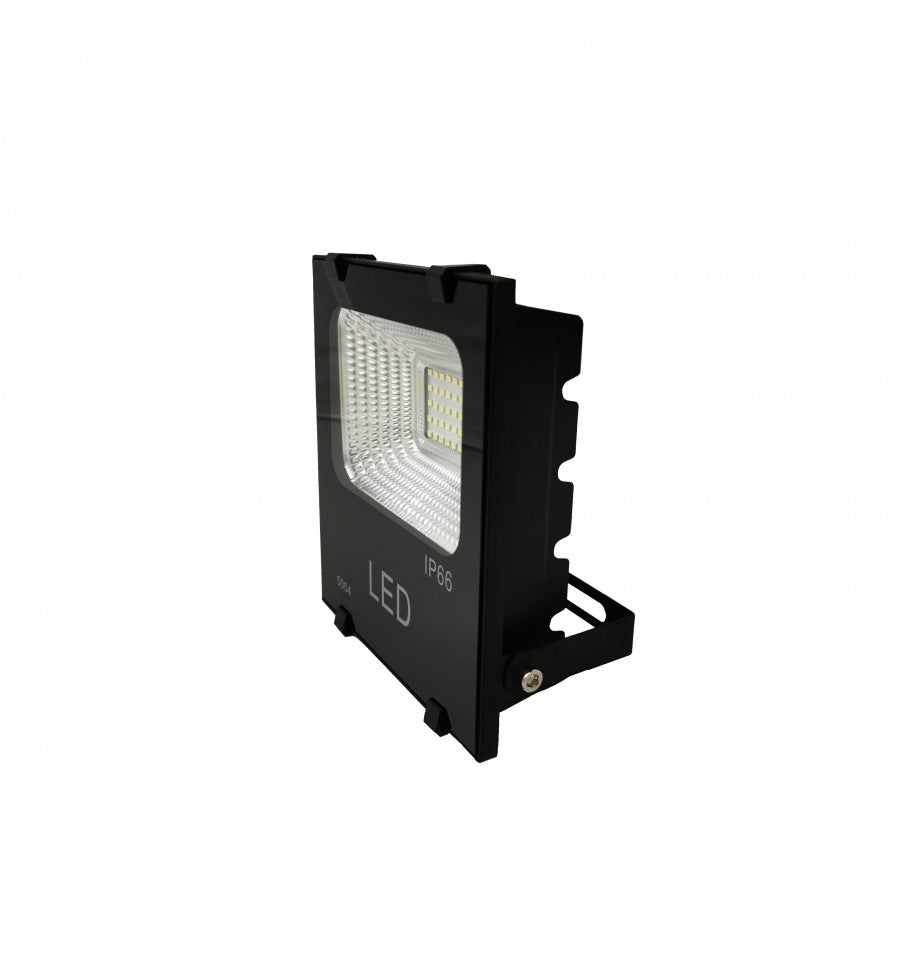

Floodlight:

• Voltage: 12v DC.
• Watts: 20.
• Colour: Black.
• Mounting Bracket: Adjustable.
• Size: 155 (w) x 180 (h) x 65 (d) mm.

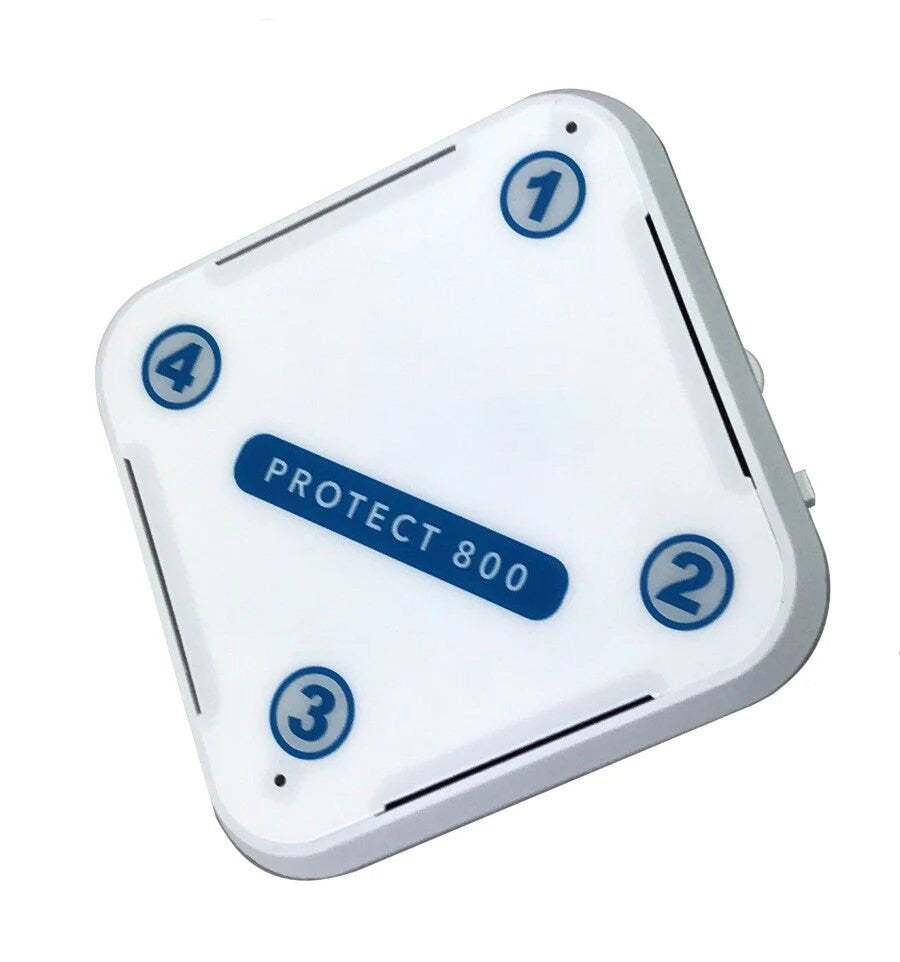

Indoor Receiver:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.

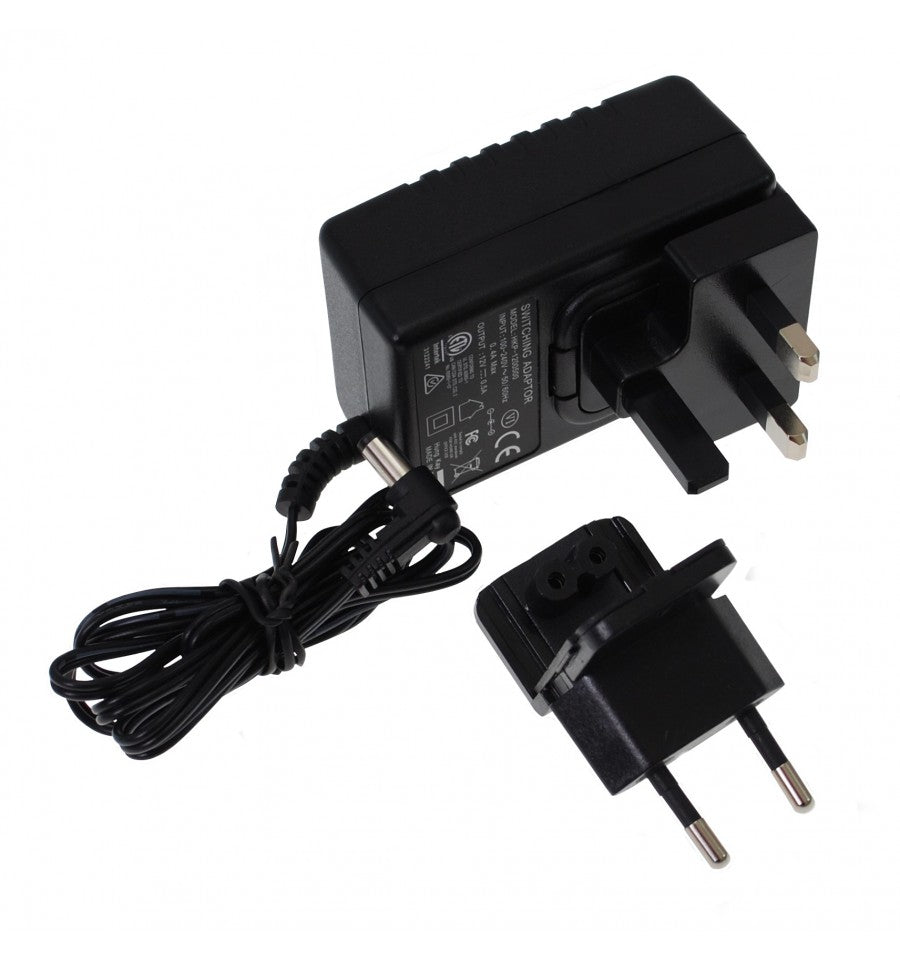

• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.

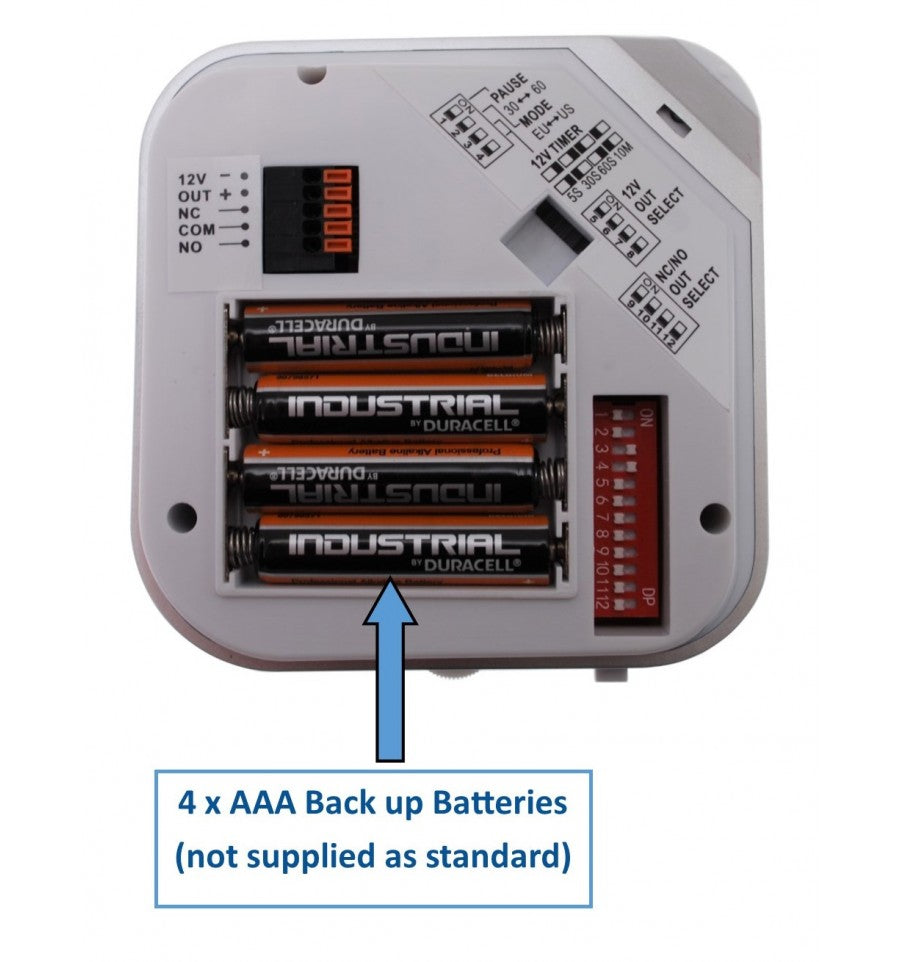

• Battery Back Up: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Outputs: 4 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.
