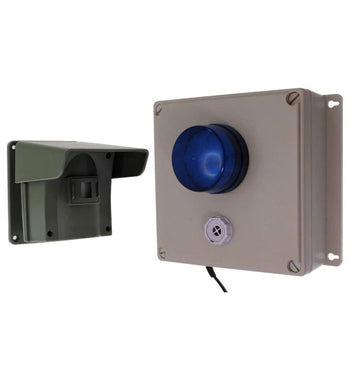

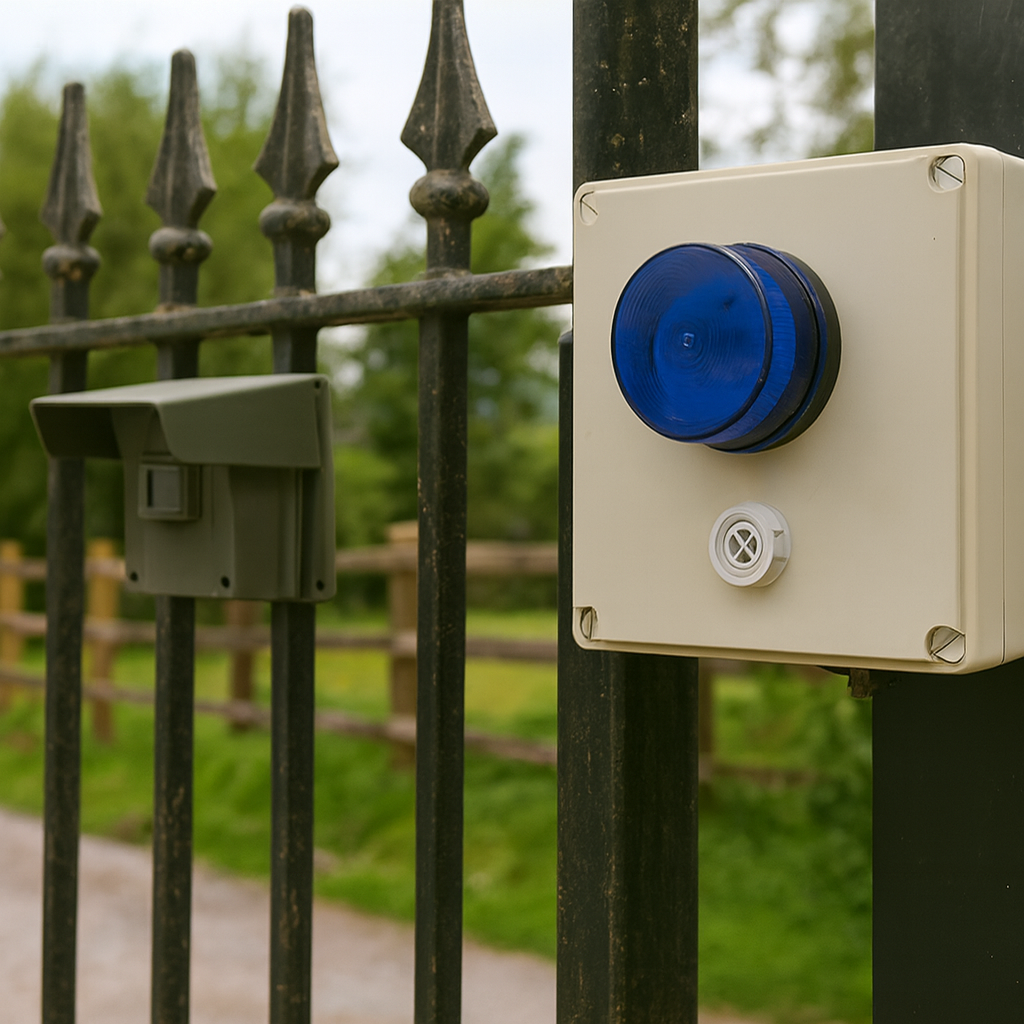

Driveway Alert With Outdoor Adjustable Siren & Flashing LED Receiver & New Pencil Beam Lens Cap

• Driveway.
• Garden.
• Shed & Garage.
• Fuel Tanks.
• The list is Endless !!.
• The PIR is a single sided Beam which is very easy & quick to Install, there is no lining up with other devices to worry about.
• It will detect movement of both Vehicles & People but is supplied with optional clip on nozzles allowing you to avoid detection of small ground animals such as Fox & Cats.
• When movement is detected a Wireless signal is transmitted up to 800 metres (open air) which equates to around 400 - 600 metres in most applications to the Receiver with a Siren & Flashing Strobe.
• The Receiver will activate the Siren (at the chosen tone, sound and duration) which would normally be fitted onto the Outside of the building, it is supplied with a 3-pin plug in transformer.

Additional Detectors can be added to this versatile Alarm System, these include:

• PIR's.
• Vehicle Detectors.
• Gate Contacts.
• Push Buttons.
• Transmitters (for use with other sensors).
• Additional Indoor & Outdoor Receivers can also be added (no limit).

• Optional Battery Back Up using 4 x AAA Batteries (not supplied).
• Up to 16 Detectors can be Used.
• Multiple Receivers can be used (no limit).
• 1 x Dry Relay Output (could be used to to trigger other devices).
• You can also add a standard Receiver to this Alert System for when you are inside !!

• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Sunshade & Rain Hood.
• Lens size adjusting Cap (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.

• Unique choice in operation of:

  24 hour operation (for use in locations where all day detection is preferred).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

Lens Caps:

The PIR is supplied with 3 Lens Cap Settings which together with internal adjustments allow you to set the PIR to suit your application, these include:

• Pencil Beam Attachment: Provides a very narrow Beam to avoid small to medium ground animals.
• Medium Beam Attachment: Provides a narrow Beam to avoid most small to medium ground animals whilst detecting Vehicles more efficiently than the Pencil Beam.
• No attachment Fitted: Ideal when the detection of Vehicles is most important to you.

kit Includes:

Outdoor Siren Receiver:

• 1 x Protect 800 Driveway Alert Wireless Receiver.
• 1 x Weatherproof Mounting Box.
• 1 x Adjustable Siren.
• 1 x Blue Flashing LED.
• 1 x 3-pin (UK) & 2-pin (EU) Plug in Power Supply.

PIR:

• 1 x Protect 800 Wireless Driveway Alert PIR.
• 4 x AA Batteries.
• 1 x set of Removable Detection Caps.
• 1 x Sun & Rain Hood.
• 1 x Screwdriver.
• 1 x Set of Screws.
• 1 x Manual.

Specifications:

Receiver:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.
• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
• Battery Back Up: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Output: 1 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration for Bell (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.

Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 225 (W) x 185 (H) x 70 (D) mm.
• Internal Size: 185 (W) x 185 (H) x 65 (D) mm.

Siren:

• Colour: White.
• Input Voltage: 9 - 28v DC.
• Weatherproof: Yes (IP65).
• Siren Tones: 32 (selectable).
• Volume Control: Yes (106 Decibel to zero).
• Size:
• Rear Diameter: 50 mm.
• Front Diameter: 25 mm.
• Overall Height: 45 mm.
• Depth of Body: 32 mm.
• Mounting Method: Front Mounted Screw.

Flashing LED:

• Colour: Blue.
• Voltage: 9 - 12v DC.
• Diameter: 75 mm.
• Depth: 55 mm.

PIR:

• Wireless Operational Range: 800 metres (line of sight).
• Weatherproof: Yes.
• Detection Range: Up to 15 metres Detection Range (can be further with large objects).
• Angle of Detection: Approximately 9 - 12 degrees @ 12 metres distance.
• Adjustable Sensitivity Settings: Yes.
• Maximum Number of PIR's: 16.
• Sunshade & Rain Hood: Yes.
• Lens size adjusting Cap: Yes (removable).
• Pencil Beam.
• Narrow Beam.
• Wide Beam.
• Battery Powered: Yes (4 standard AA batteries approximately 9 - 12 months).
• Low Battery Warning: Yes (on receiver).
• Battery Status Checking: Yes (on receiver).
• Vehicle Detection: Yes (best with cap removed).
• Size with Bracket (no sun hood): 85 (D) x 80 (W) x 100 (H) mm.
• Size with Bracket & Sun Hood: 120 (D) x 80 (W) x 100 (H) mm.
• Frequency: 869.400 – 869.650.
• Temperature Range: -20℃ to 50℃.
• Choice in operation of:
• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).
