Driveway Alert & Outdoor Adjustable Siren, Flashing LED Receiver & Indoor Receiver

• Driveway.
• Garden.
• Shed & Garage.
• Fuel Tanks.
• The list is Endless !!.
• The PIR is a single sided Beam which is very easy & quick to Install, there is no lining up with other devices to worry about.
• It will detect movement of both Vehicles & People but is supplied with optional clip on nozzles allowing you to avoid detection of small ground animals such as Fox & Cats.
• When movement is detected a Wireless signal is transmitted up to 800 metres (open air) which equates to around 400 - 600 metres in most applications to the Indoor Receiver & Bell Receiver.
• The Receiver will activate the Siren (at the chosen volume and tone) & Flashing Strobe Light for the chosen duration (this would normally be fitted onto the Outside of the building), it is supplied with a 3-pin plug in transformer.
• The Indoor Receiver will play the chosen tune at the chosen volume at the same time.

Additional Detectors can be added to this versatile Alarm System, these include:

• PIR's.
• Vehicle Detectors.
• Gate Contacts.
• Push Buttons.
• Transmitters (for use with other sensors).
• Additional Indoor & Outdoor Receivers can also be added (no limit).

• Optional Battery Back Up using 4 x AAA Batteries (not supplied).
• Up to 16 Detectors can be Used.
• Multiple Receivers can be used (no limit).
• 1 x Dry Relay Output (could be used to to trigger other devices).

• 800 metre Wireless Reception.
• Adjustable Volume (from low to approximately 85 decibel).
• 32 optional Melodies.
• Mains Powered using a Plug in Transformer (3-pin UK & 2-pin European supplied).
• Optional Battery Back Up using 4 x AAA Batteries (not supplied).
• LED Notification of Loss of Mains Power.
• Low Battery Notification.
• Up to 16 Detectors can be Used.
• Multiple Receivers can be used (no limit).
• Zone Indicator (visual and by chime).
• 1 x Dry Relay Output (can be used to trigger Diallers, Flashing LED's, Siren's, Bells etc).
• 12v DC Output (can be used to trigger Flashing LED's, Siren's, Bells etc).
• Relay Duration: Momentary.
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
• Can be Wall or Desk Mounted.
• PIR Battery Check.
• Optional Pause Modes.

• Impressive 800 metre Wireless Transmission.
• Fully Waterproof.
• Up 15 metres Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Sunshade & Rain Hood.
• Lens size adjusting Cap (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
• 24 hour operation (for use in locations where all day detection is preferred).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

Lens Caps:

The PIR is supplied with 3 Lens Cap Settings which together with internal adjustments allow you to set the PIR to suit your application, these include:

• Pencil Beam Attachment: Provides a very narrow Beam to avoid small to medium ground animals.
• Medium Beam Attachment: Provides a narrow Beam to avoid most small to medium ground animals whilst detecting Vehicles more efficiently than the Pencil Beam.
• No attachment Fitted: Ideal when the detection of Vehicles is most important to you.

• We recommend the PIR is fitted looking away from a rising Sun rather than towards it, if this is not possible then care should be taken when choosing the location and direction of the PIR, this basic principle is the same for most outdoor PIR's.
• The PIR's can also easily be hidden inside plastic and wooden structures with some simple imaginative creation to help hide them, the strong 800 metre wireless transmission helps this be possible.

• 24 hour operation (for use in locations where all day detection is preferred).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).
• This allows you to perhaps have some PIR's only operating the Outdoor Siren & Flashing LED at your chosen times during the day & night !!
• You can use as many additional Receivers as needed for your application and up to 16 PIR's.

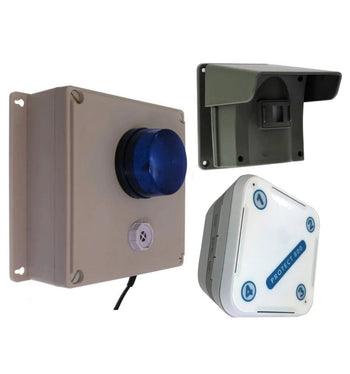

kit Includes:

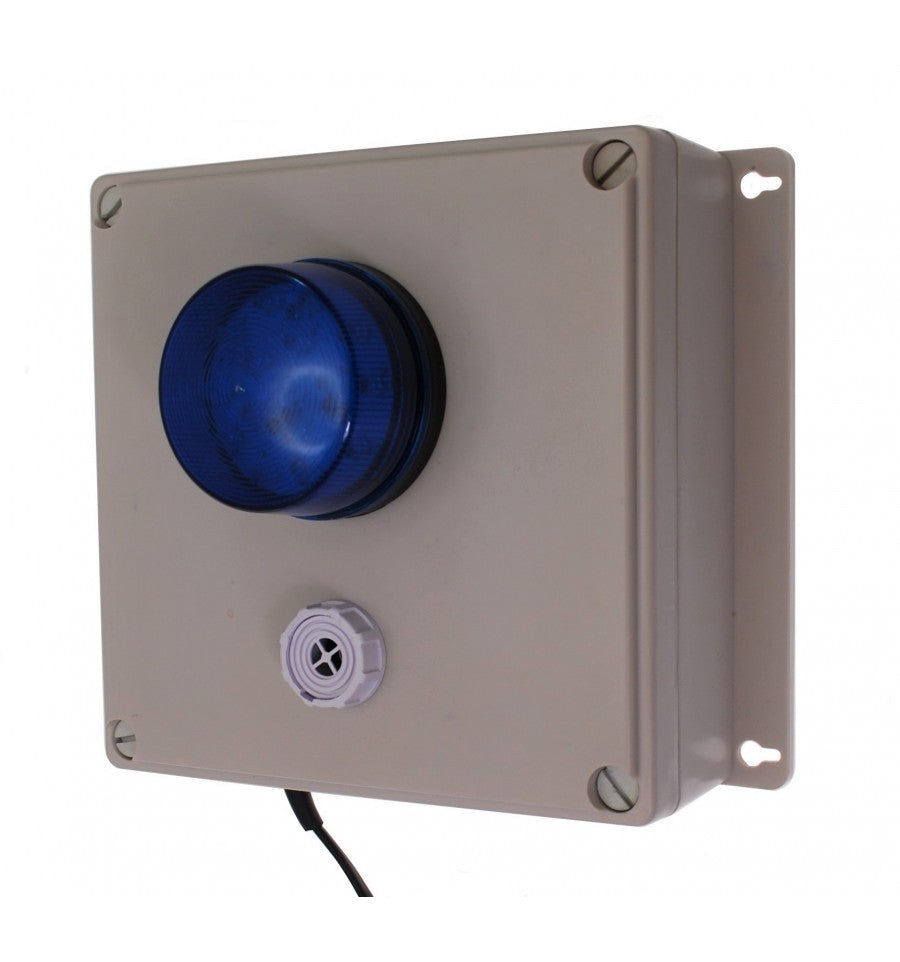

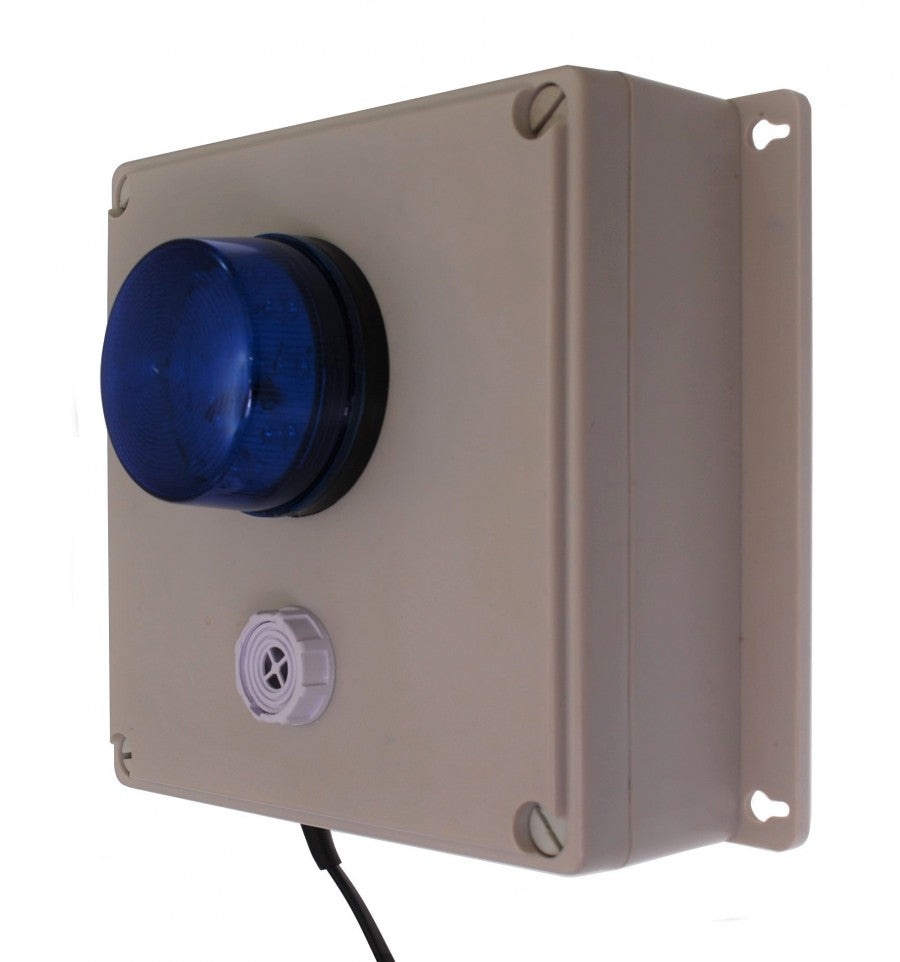

Outdoor Siren Receiver:

• 1 x Protect 800 Driveway Alert Wireless Receiver.
• 1 x Weatherproof Mounting Box.
• 1 x Adjustable Siren.
• 1 x Blue Flashing LED.
• 1 x 3-pin (UK) & 2-pin (EU) Plug in Power Supply.

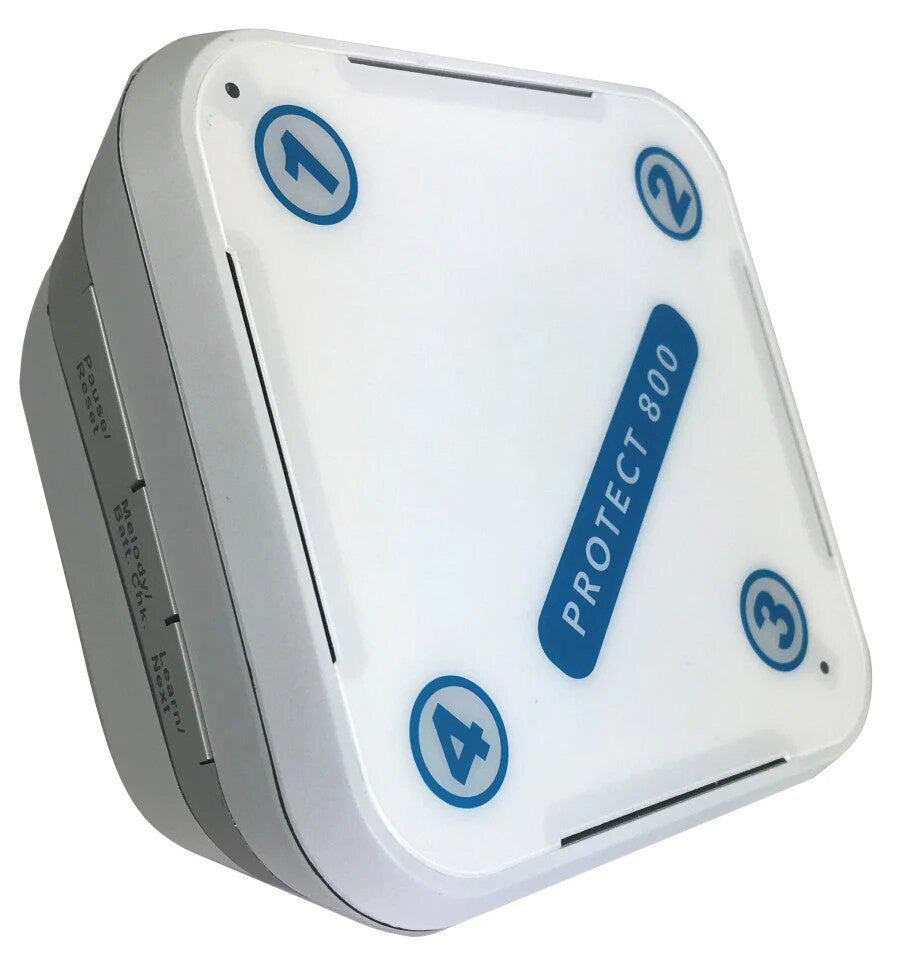

Indoor Receiver:

• 1 x Standard Indoor Receiver.
• 1 x 3-pin (UK) & 2-pin (EU) Plug in Transformer.

PIR:

• 1 x Protect 800 Wireless Driveway Alert PIR.
• 4 x AA Batteries.
• 1 x set of Removable Detection Caps.
• 1 x Sun & Rain Hood.
• 1 x Screwdriver.
• 1 x Set of Screws.
• 1 x Manual.

Specifications:

Receivers:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.
• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
• Battery Back Up: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Output: 1 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration for Bell (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.

Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 225 (W) x 185 (H) x 70 (D) mm.
• Internal Size: 185 (W) x 185 (H) x 65 (D) mm.

Siren:

• Colour: White.
• Input Voltage: 9 - 28v DC.
• Weatherproof: Yes (IP65).
• Siren Tones: 32 (selectable).
• Volume Control: Yes (106 Decibel to zero).
• Size:
• Rear Diameter: 50 mm.
• Front Diameter: 25 mm.
• Overall Height: 45 mm.
• Depth of Body: 32 mm.
• Mounting Method: Front Mounted Screw.

Flashing LED:

• Colour: Blue.
• Voltage: 9 - 12v DC.
• Diameter: 75 mm.
• Depth: 55 mm.

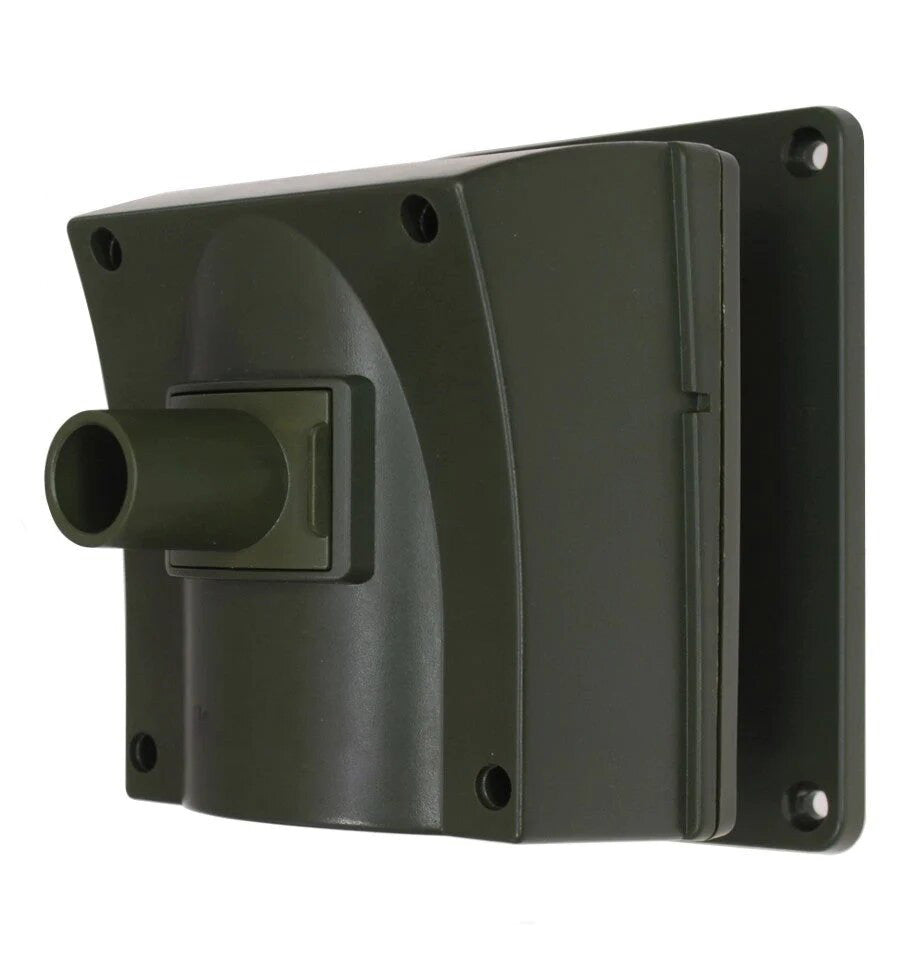

PIR:

• Wireless Operational Range: 800 metres (line of sight).
• Weatherproof: Yes.
• Detection Range: Up to 15 metres Detection Range (can be further with large objects).
• Angle of Detection: Approximately 9 - 12 degrees @ 12 metres distance.
• Adjustable Sensitivity Settings: Yes.
• Maximum Number of PIR's: 16.
• Sunshade & Rain Hood: Yes.
• Lens size adjusting Caps: Yes (removable).
• Pencil Beam.
• Narrow Beam.
• Wide Beam.
• Battery Powered: Yes (4 standard AA batteries approximately 9 - 12 months).
• Low Battery Warning: Yes (on receiver).
• Battery Status Checking: Yes (on receiver).
• Vehicle Detection: Yes (best with cap removed).
• Size with Bracket (no sun hood): 85 (D) x 80 (W) x 100 (H) mm.
• Size with Bracket & Sun Hood: 120 (D) x 80 (W) x 100 (H) mm.
• Frequency: 869.400 – 869.650.
• Temperature Range: -20℃ to 50℃.
• Choice in operation of:
• 24 hour operation (for use in locations where all day detection is preferred).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).
