Covert Battery Silent 3G GSM UltraDIAL Door & Pressure Mat Alarm

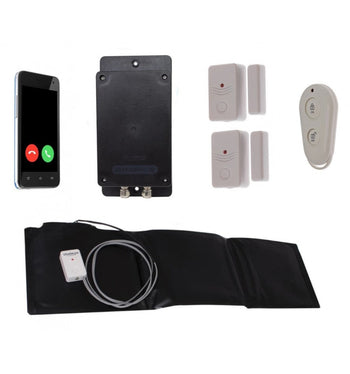

• UltraDIAL battery powered Covert 3G GSM Wireless Door/Window & Floor Pressure Alarm, this kit will silently call up to 3 x key-holders by Phone & SMS when triggered, supplied with 1 x Remote Control & 2 x Wireless Magnetic Contacts & 1 x Floor Pressure Mat.

How it Works:

• This kit comprises of a battery powered 3G GSM UltraDIAL Covert Alarm Dialler, 2 x battery powered Wireless Magnetic Contacts & 1 x Floor Pressure Mat. The UltraDIAL, Contacts & Floor Pressure Mat are connected to each other within a unique Wireless Network and are all Armed & Disarmed at the same time using the Remote Control.
• The Magnetic Contacts are fitted onto a Door or Window together with the Magnet being fitted onto the frame in such as position that both parts are nearly touching when the Door or Window is closed, the Pressure Mat is placed underneath a small Mat or Carpet.
• If the Door or Window is opened or if someone stands on the Mat when the Alarm is Armed, they will silently trigger the UltraDIAL Alarm which will be secretly contacting up to three key-holders by Telephone & SMS. Additional Door Contacts & Mats can be added (no limit).
• The secret of using this Alarm is to hide (or lock) away the UltraDIAL in a location where an Intruder wouldn't even know it is there, this is very easy due to the fact it is battery powered and wireless.

Communication:

• The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract). It will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.
• We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in Alarms & Tracker Systems, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.
• These can be selected within the drop down options near the Add to Card Button.
• You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).

This simple Alarm is ideal for so many applications, examples are:

• Narrow Boats Boat (UltraDIAL hidden inside the Boat, Contacts on Front & Rear Doors, Pressure Mat underneath a Mat on the Bow or Stern).
• Workshop, Shed & Garage (UltraDIAL hidden away out of reach).
• Static Caravan (UltraDIAL hidden, Contact on the Doors, Pressure Mat underneath a Mat).
• The list is endless !!

Wireless Door & Window Contact:

• The Magnetic Contacts would be fitted onto the Door/Window with the Magnet being fitted onto the frame, when the Door/Window is closed both parts would ideally be within 5 mm of each other (for some installations you may choose to install the two components in the opposite way). When the Door/Window is opened, the Contacts will send a Wireless signal up to 100 metres to the UltraDIAL Alarm.

Pressure Mat:

• The Mat would be ideally placed underneath an existing Floor Mat, connected to this by one metre of cable is the battery powered Wireless Transmitter, if someone stands on the Mat a Wireless signal will be sent to the host Alarm or Sirens.
• The Mat is IP64 rated, therefore can withstand light splashes of water, but it wouldn't take much to protect it from further water ingress. The Transmitter is not waterproof and needs to be positioned in a dry location of inside a weatherproof box.

Additional Silent Detectors:

If you want to expand the Alarm, but want to keep it Silent, you can add the additional Detectors to it as shown below:

• Wireless Door Contacts
• UltraPIR set to Silent and not using the SIM Card function
• UltraPIR with Hood set to Silent and not using the SIM Card function
• Pressure Mat

Additional Wireless PIR's & Sirens:

If you decide that you want to expand the Alarm to include Sirens, then the following Detectors can be added:

• Indoor Battery Siren
• Outdoor Solar or Battery Siren & Strobe
• Standard PIR
• Standard PIR with Hood

Additional Buildings:

• The wireless operating range of 100 metres (line of sight) between the accessories and the UltraDIAL equates to around 40 - 50 metres in many applications, which allows various buildings to be protected at the same time, many customers will cover two, three or even four buildings with this Alarm.

Arming & Disarming:

• The Alarms are Armed & Disarmed by using the Remote Control (supplied) from up to 100 metres away, up to 9 Remote Controls can be used with each Alarm.
• If the UltraDIAL Alarm is powered by the external 5v power source, then it is possible to Arm & Disarm the Alarm via SMS (text message).There is a 30 second Exit Delay built into the Alarm for easy use.

Contacting Key-holders:

• The Alarm will contact between 1 & 3 key-holders (depending on how you have chosen to program the alarm) by Telephone & SMS (either can be turned off whilst programming the alarm) when activated.
• It will normally take take between 30 - 60 seconds to call the first key-holder when powered by battery, and quicker when powered by a plug in transformer or usb cable (this can vary depending on the mobile phone networks at the time).

Recording Message:

• You can record a 30 second message into the Alarm, which will be replayed to the key-holders when the Alarm calls them.

Power Supply:

• The UltraDIAL Alarm is powered by 3 x Lithium AA Batteries (supplied) which will last around 6 months in most applications, it can also be powered by a 5v Plug in Transformer or USB Cable where a power supply is available. If the power supply is used, the batteries can be kept in the Alarm as a backup although they will not be charged by the device.
• The BT PIR is powered by 3 x AA Duracell Batteries.

Receiving a Call:

When the Alarm calls the key-holders, there is the choice to:

• Listen to your pre-recorded message and do nothing (the alarm will contact the other key-holders).
• Listen to your pre-recorded message and press # on your telephone (this will disarm the UltraDial and prevent it from calling further key-holders).
• Listen to your pre-recorded message and press * on your telephone (this will prevent it from calling further key-holders, but keep the Alarm fully armed (ready for further activations).

Wired Alarm Detectors:

The UltraDIAL has one momentary volt free Inputs, 1 x N/O or N/C, these can be used with many types of devices, examples listed below:

Normally Open going Closed:

• Water & Flood Sensors.
• Alarm Panel.
• Perimeter Beam.
• Pressure Mat.
• Tilt Switch.

Normally Closed going Open:

• Door Contact.
• Gate Contact.
• Alarm Panel.
• Pressure Mat.
• Tilt Switch.

Easy Programming:

• The UltraDIAL is very easy to program, probably the easiest GSM Alarm to program on the market today by using the small built in keypad, following some very simple instructions.

Weatherproof:

• The UltraDIAL is fully weatherproof and rated at IP66 (Refer to manual for correct installation), so can be used in most locations, it is not however designed to be submerged.

Low Battery:

• The UltraDIAL Alarm will send the primary key-holder a SMS (text message) if the batteries are getting low.

Weekly Report:

• The Alarm can be programmed to send you a status report once a week at 9am, this function can is optional and doesn't have to be used.

Mains Power Failure:

• When the Alarm is being powered by an external 5v power supply, it will send the primary key-holder a SMS (text message) in the event of a Power Cut together with another when the power comes back on (provided you also have batteries fitted).

Security Screws:

• The lid is fitted with 4 x security screws and a tool is supplied as standard.

Covert Branding:

• Due to the fact that we believe this Alarm should be used as a Covert Alarm and hidden safely away from sight and reach whenever possible, we have kept the branding low key.

SIM Cards:

• The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract). It will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.
• We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in Alarms & Tracker Systems, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.
• These can be selected within the drop down options near the Add to Card Button.
• You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).
• If you need advice, please Contact Us !!

kit Includes:

• 1 x UltraDIAL GSM Alarm.
• 1 x Remote Control.
• 2 x Magnetic Contact Kits.
• 3 x Lithium AA Batteries.
• 1 x Manual.
• 1 x Tool.
• 1 x Pressure Mat.
• 1 x Metre of Cable.
• 1 x Wireless Transmitter.

Specifications:

UltraDIAL:

• Battery Power: 3 x Lithium AA Batteries (supplied).
• Battery Life: 6 months in most applications).
• Main Power: Yes (optional 5v DC plug in transformer).
• Programming Method: Easy Built in Keypad.
• Wireless Transmission Range: 100 metres.
• Size: 160 (L) x 82 (W) x 42 (D) mm.
• Colour: Black.
• Wired Inputs: Yes (1 x Volt Free N/O or N/C).
• Cable Entry: 2 x Glands.
• Wireless Inputs: Yes (Wireless PIR's & Door Contacts).
• Wireless Outputs: Yes (Internal & External Sirens, PIR's).
• GSM: Yes (3G).
• SIM Card Required: Yes (standard size).
• Calls Key-holders: Yes (maximum of three, which can be turned off).
• Sends Key-holders SMS: Yes (maximum of three, which can be turned off).
• Built in Siren: No (designed as a covert alarm).
• Mounting Method: 2 x Screw Holes in Flange.
• Weatherproof: Yes (IP66 - Refer to manual for correct installation).
• Arming & Disarming Method: Remote Control, Keypad, Receiving A Call.
• Remote Operation on Battery: Yes (# to Disarm, * to Stop & Remain Armed).
• Remote Operation on Mains:  Yes (# to Disarm, * to Stop & Remain Armed, SMS to Arm, SMS to Disarm).
• Power Failure Notification: Yes (when used with a plug in transformer).
• Weekly Status Report: Yes (can be turned off).
• Low Battery Notification: Yes (to primary key-holder).
• Recording Message: Yes (this will be replayed to the key-holders when the alarm calls them).

Magnetic Contact:

• Power Supply: CR2 Lithium Battery (included).
• Contact Size: 52 x 32 x 12 mm.
• Magnet Size: 45 x 12 x 14 mm.
• Line of Sight Wireless Operational Range: 100 metres.
• Installation Method: Double Sided Tape (supplied).

Pressure Mat:

• Size: 590 x 180 mm.
• Terminal Cables: 4 (N/O + Tamper).
• Colour: Black.
• External Use: No (could be used with protection).

Wireless Transmitter:

• Power Supply: CR2 Lithium Battery (included).
• Cable Length: 1 metre (between mat & transmitter, can be lengthened).
• Contact Size: 52 x 32 x 12 mm.
• Line of Sight Wireless Operational Range: 100 metres (line of sight).
• Installation Method: Double Sided Tape (supplied).
