Description

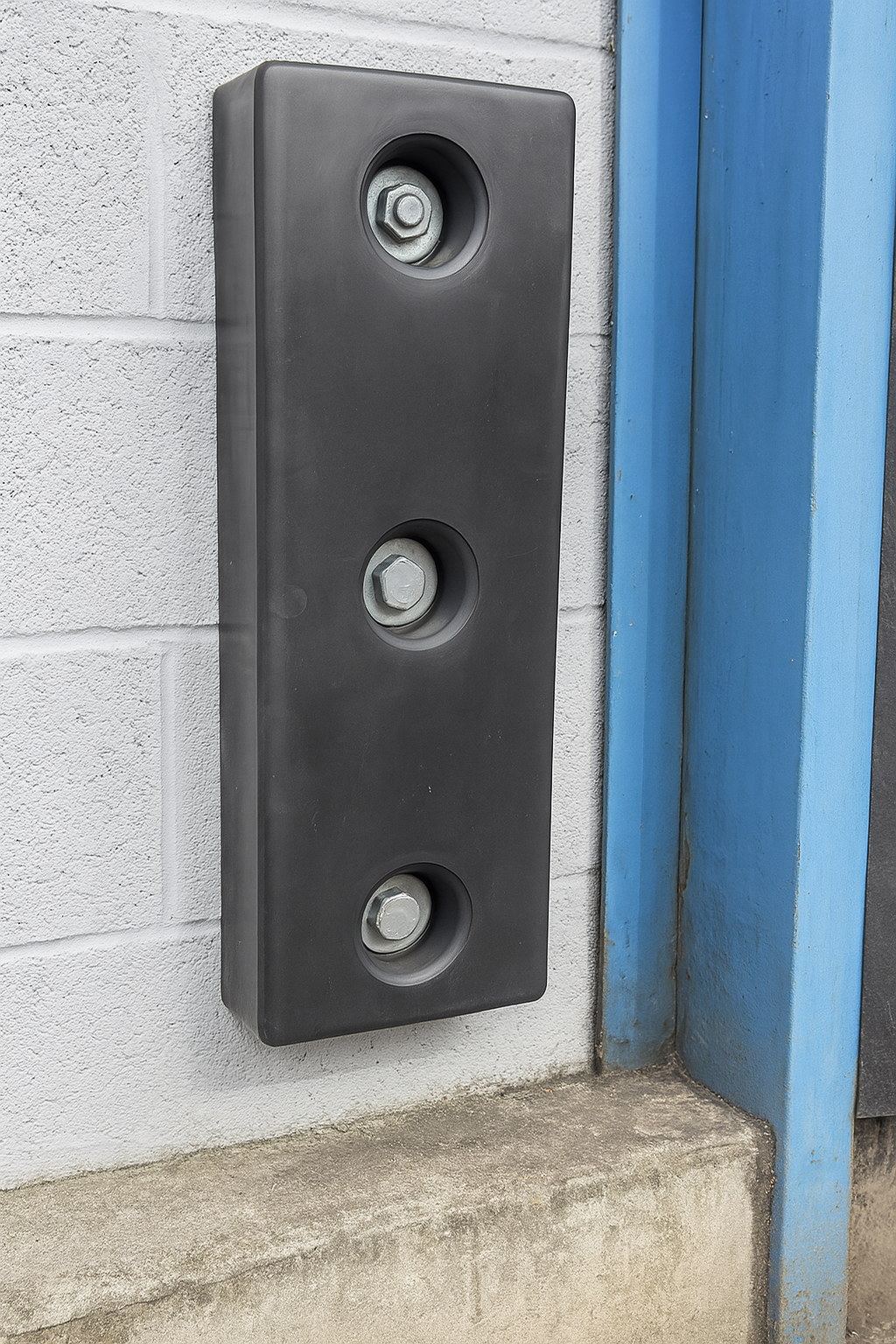

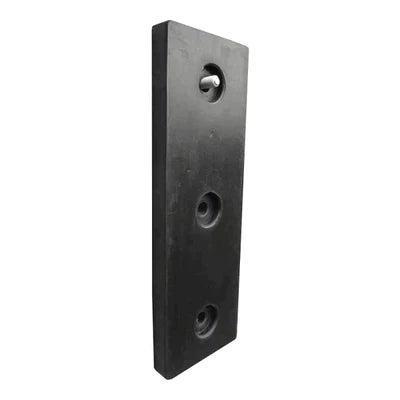

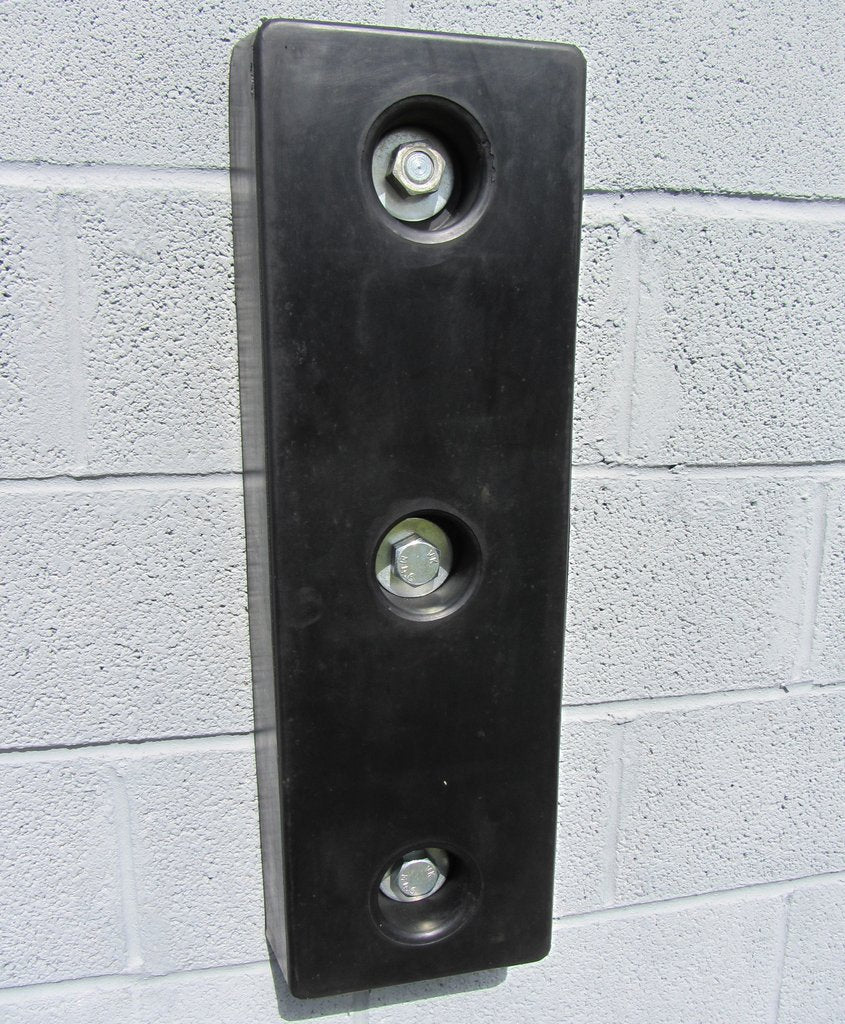

Engineered for demanding logistics environments, the 750mm Rubber Dock Bumper is a proven solution to shield your loading bay from HGV and trailer impact damage. This high-strength, solid rubber bumper prevents under-ride—where vehicles reverse too far and damage walls or dislodge bumpers. When combined with a mounting bracket or optional front plate, it can also prevent over-ride, protecting roller doors and dock seals from vehicle strain.
Ideal for busy distribution centres, warehouses, and freight terminals, this bumper offers a reliable buffer between vehicles and structures, ensuring safety, durability, and reduced maintenance costs.

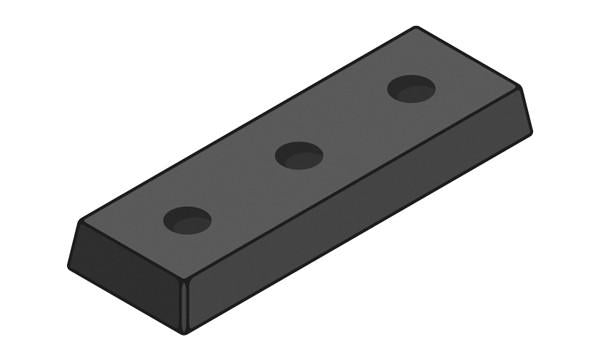

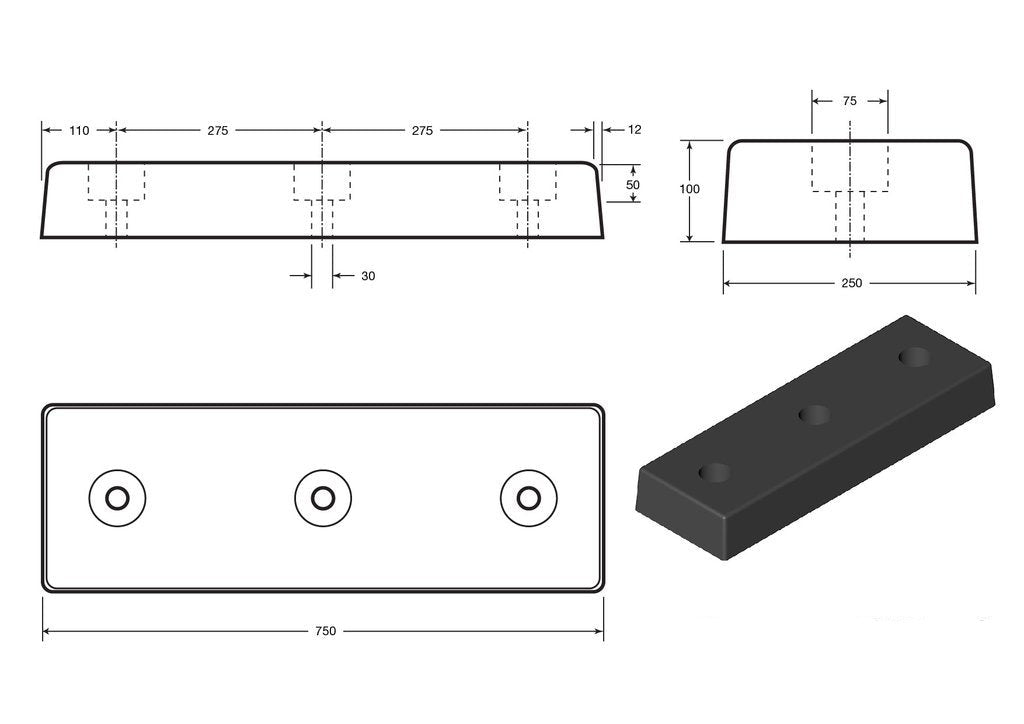

Standard Bumper Specifications:
- Dimensions: 750 mm (H) x 250 mm (W) x 100 mm (D)
- Weight: 19.5 kg
- Material: Dense recycled rubber for excellent compression and shock absorption
- Use Case: Designed for standard dock protection with optional packers and back/front plates

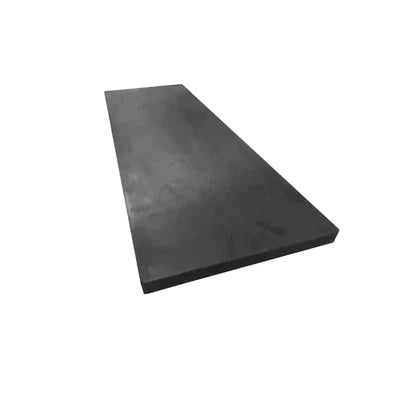

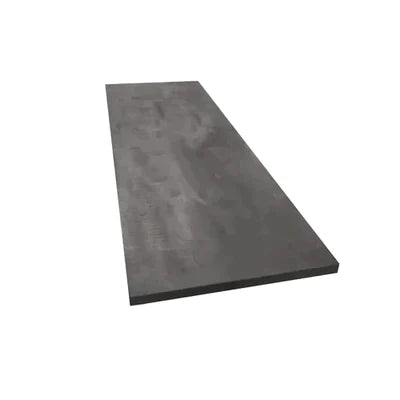

Optional Accessories for Custom Fit & Enhanced Protection:
SN048 Packer – 15mm Rubber Spacer
Fine-tunes the bumper's projection while maintaining its ability to compress effectively.
- Size: 750 x 250 x 15 mm
- Weight: 3.8 kg
SN049 Packer – 20mm Rubber Spacer
Adds slightly more projection where needed to fit bespoke bay setups.
- Size: 750 x 250 x 20 mm
- Weight: 5 kg
SN050 Packer – 50mm Rubber Spacer
Ideal for installations requiring greater projection adjustment or protection clearance.
- Size: 750 x 250 x 50 mm
- Weight: 12 kg
Mounting Plates for Extra Performance:

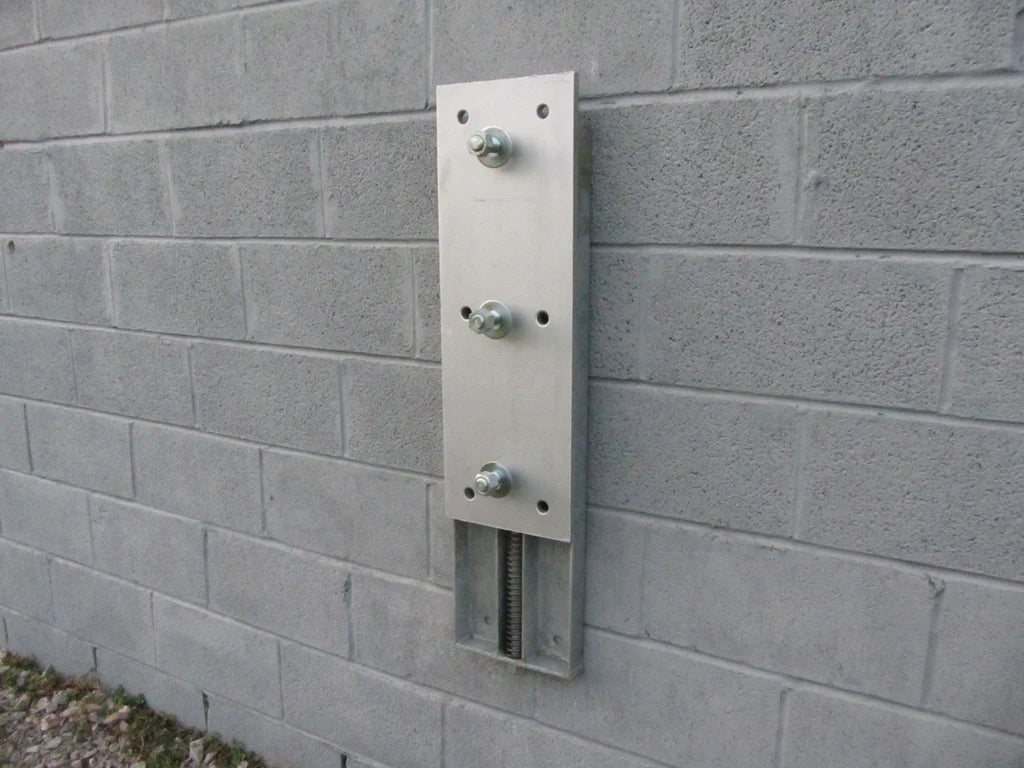

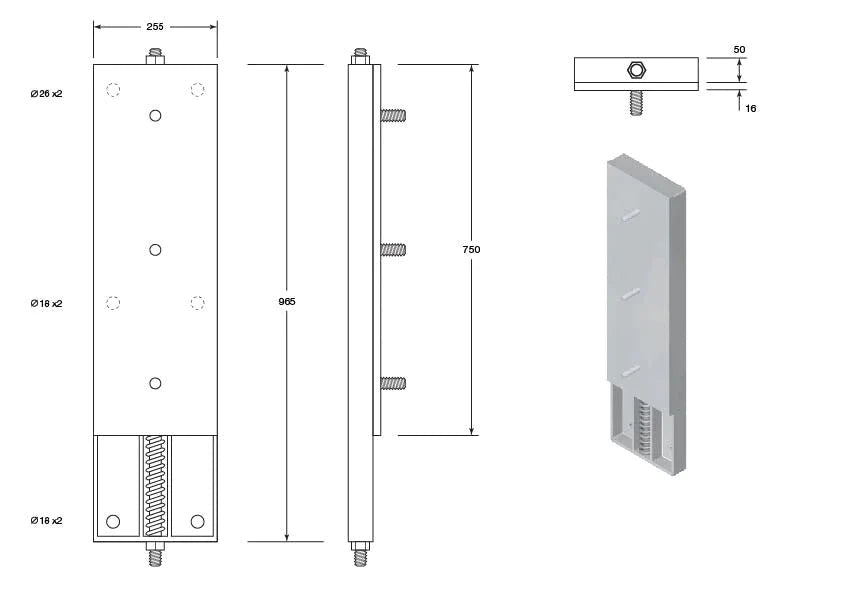

SN036 Spring-Loaded Sliding Back Plate
Designed to move vertically with the trailer during loading, then return automatically—extending bumper life and improving impact resistance.
- Size: 965 x 255 x 66 mm
- Weight: 50 kg
- Compatible With: SN007, SN252, SN253 & SN254 bumpers

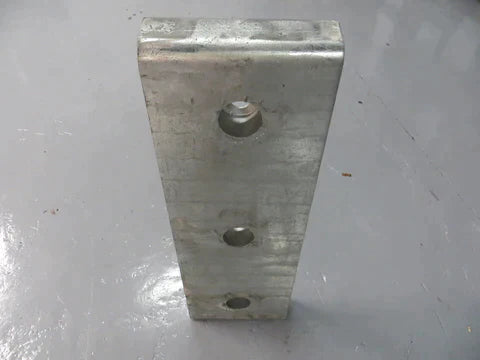

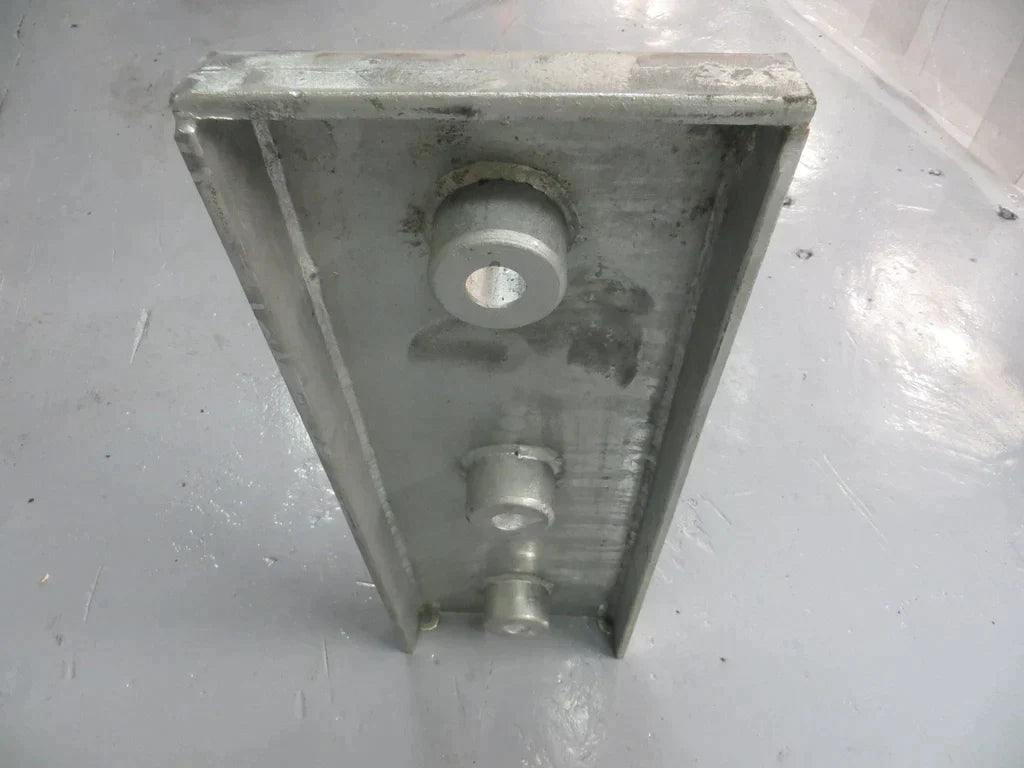

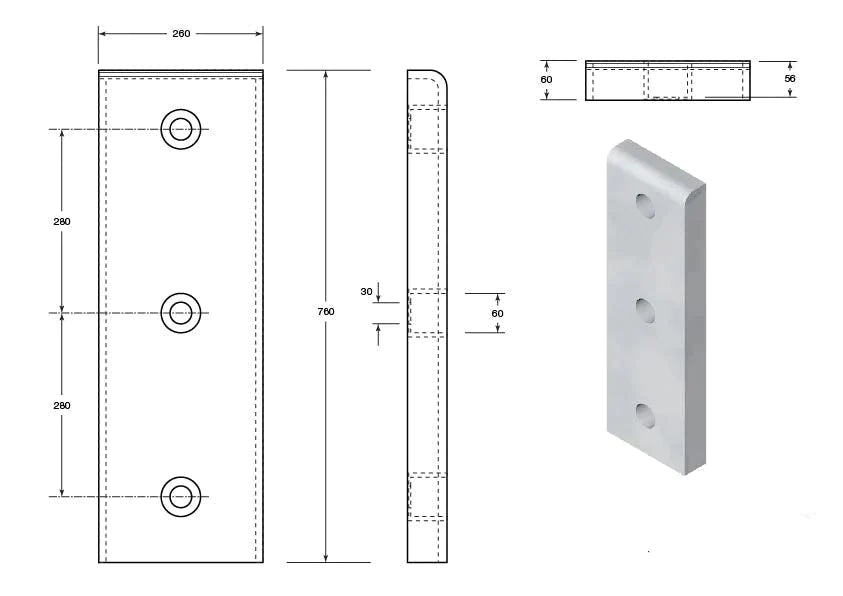

SN040 Front Plate with Side Cheeks
Built for the SN007 bumper, this reinforced steel front plate enhances bumper strength and holds it securely in place during compression.
- Size: 760 x 260 x 60 mm
- Weight: 26.5 kg
Key Benefits:
- Prevents vehicle under-ride and over-ride damage
- Adapts easily to various bay depths with modular packers
- Reduces wear and tear on dock structures, doors, and seals
- Extends bumper lifespan when used with sliding back plate
- Simple installation and maintenance-friendly design
