2 x Bolt Down & 1 x Fold Down 76mm Diameter Parking Post Chain Kit

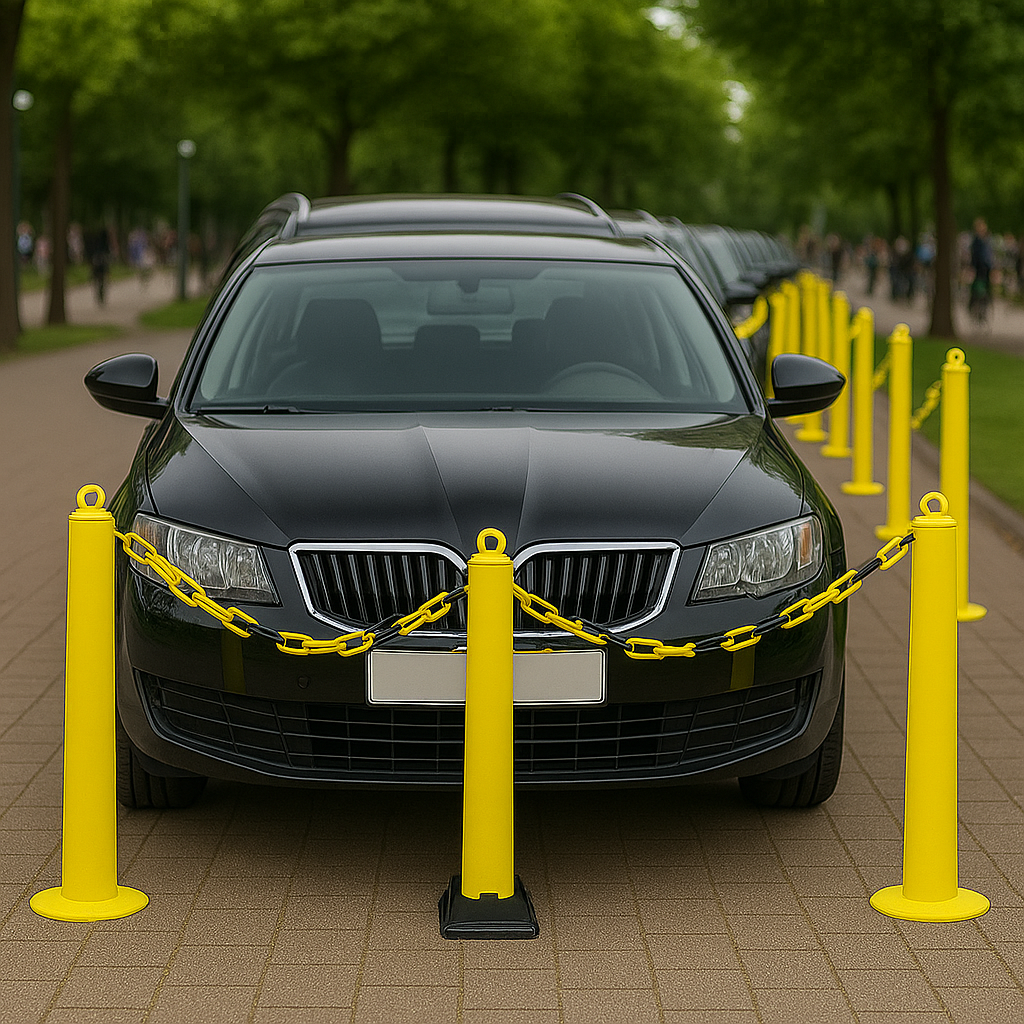

• 2 x Yellow Bolt Down & 1 x Yellow Fold Down 76 mm Diameter Parking Post Chain Kit, designed to preserve larger areas using the minimum of Parking Posts.
• The complete Parking Reservation Kit, is supplied with 8 metres of plastic chain link (this can be increased upon request) , two bolt down & one fold down parking posts, and two padlocks (for attaching the chain to the end posts).

The Fold Down Parking Post, have a host of features including:

• Integral Lock (keyed alike available).
• Impressive 900 mm High.
• 76 mm Diameter.

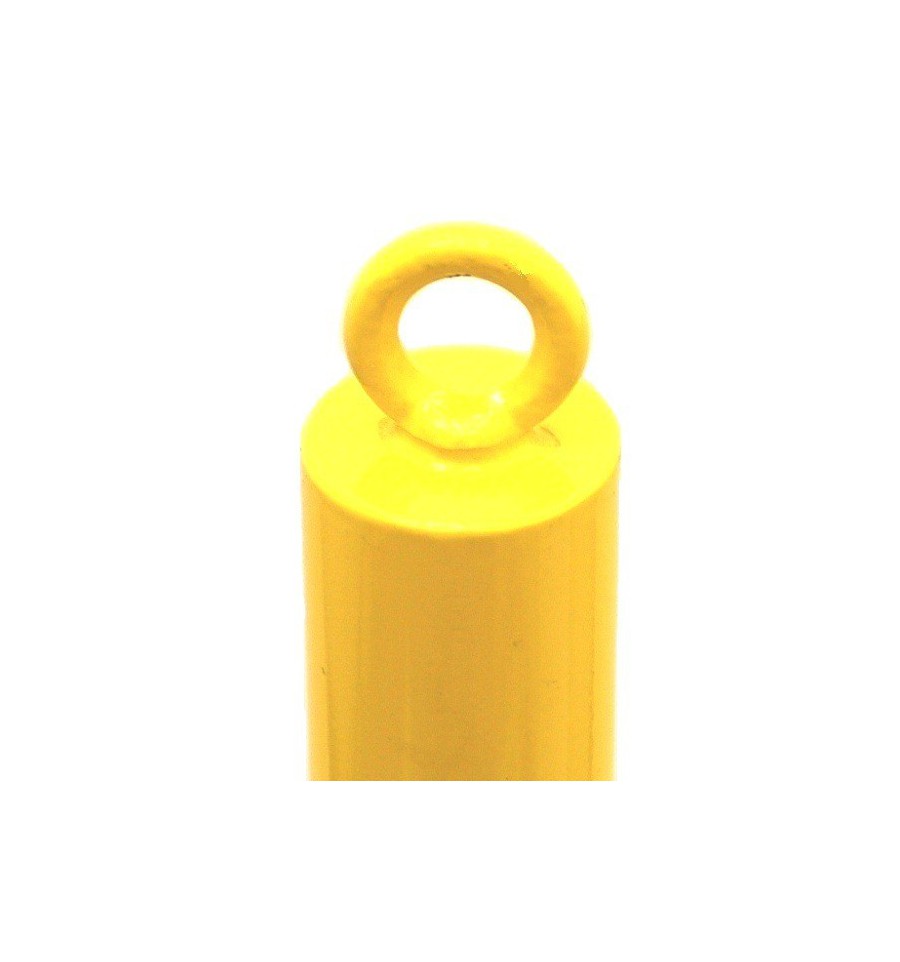

• Top Mounted Eyelet (for use with chains & ropes).
• Anti-tamper Base & Pivot Mechanism.
• High Visibility Powder Coated Yellow Finish.
• 4-Hole Easy to Fit Strong Base Plate.

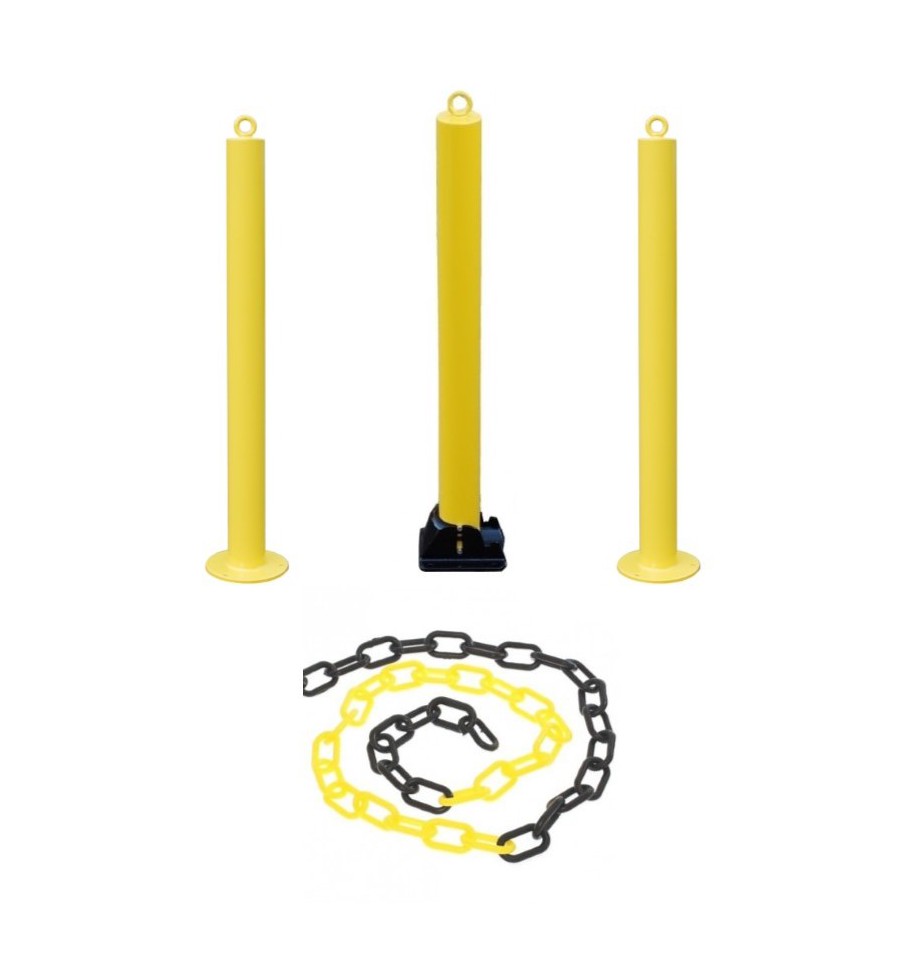

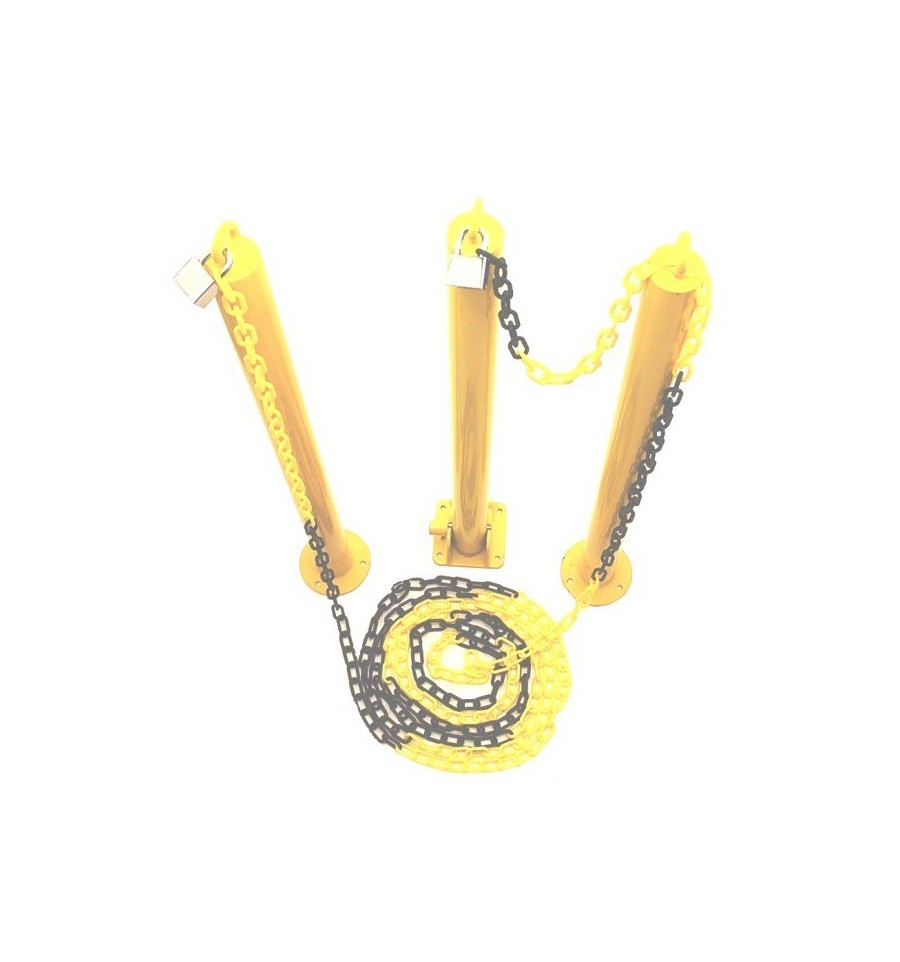

kit Includes:

• 2 x 76 mm Diameter Yellow Bolt Down Posts.
• 1 x 76 mm Diameter Yellow Fold Down Post.
• 2 x Padlocks (for attaching chain ends to the parking posts).
• 8 metre of Plastic Chain Link.
• Concrete Fixing Bolts.

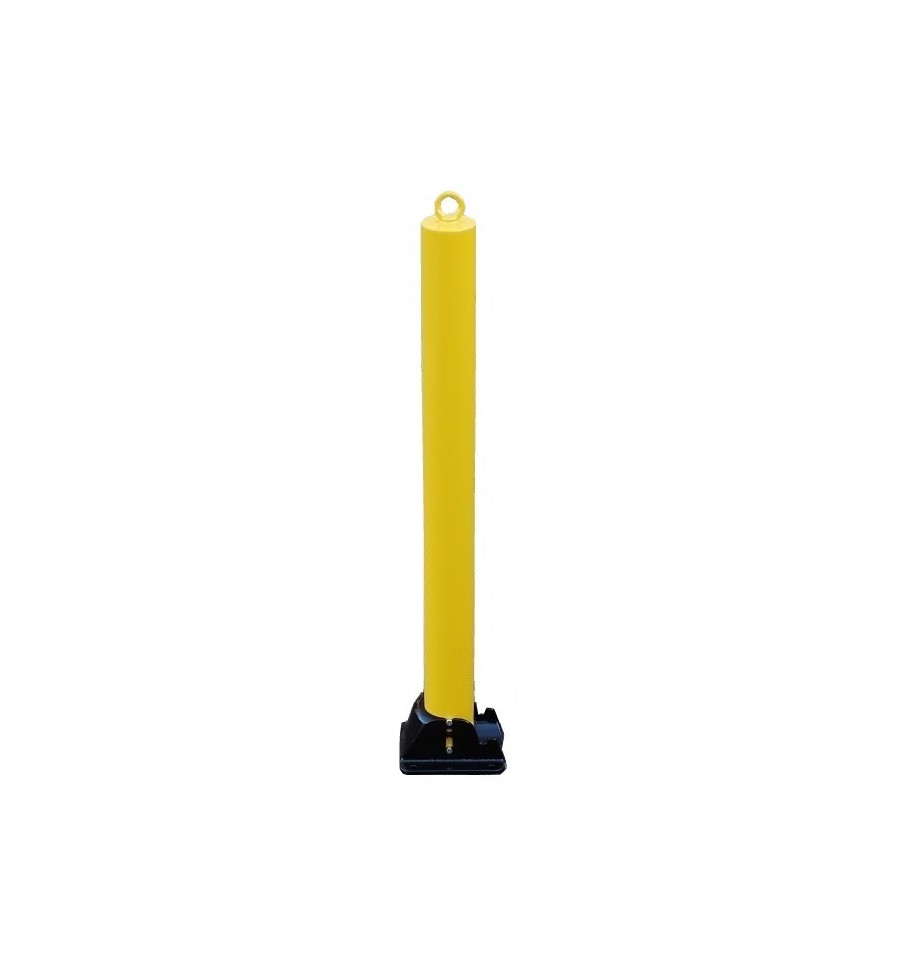

Fold Down Parking Post Specification:

• Post Type: Fold Down.
• Height when Raised: 900 mm (including the top mounted eyelet).
• Height when Down: 87 mm.
• Diameter of Post: 76 mm.
• Inner Diameter of Eyelet: 20 mm.
• Colour of Post: Yellow.
• Colour of Base: Black.
• Weight: 5KG.
• Finish: Powder Coating.
• Material: Steel.
• Anti-Tamper Base Pivot Bolts: Yes.
• Locking Mechanism: Integral Lock.
• Keys Supplied: 2.
• Keyed Alike Options: Yes (optional extra).
• Size of Base: 160 (L) x 150 (W) x 87 (H)mm.
• Qty of Mounting Holes: 4.
• Diameter of Mounting Holes: 10 mm.
• Bolts Supplied; 4 (for concrete ground).
• Size of Bolts: 60 x 10 mm.
• Size of Spanner Required for Bolt Head: 13 mm.

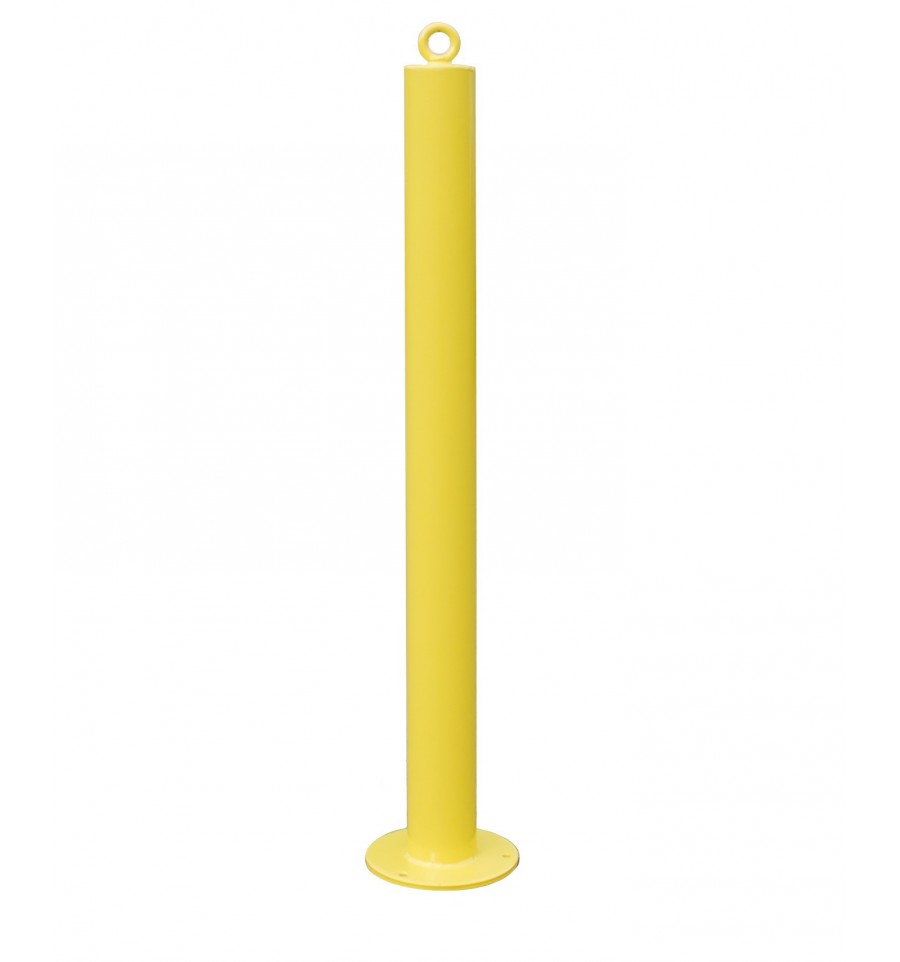

Bolt Down Post Specification:

• Material: Steel.
• Finish: Powder Coated Yellow.
• Height: 910 mm (including top ring).
• Base Size: 165 mm Diameter x 8 mm Thick.
• Fixing Holes: 3 (diameter 8 mm, which could be increased).
• Diameter of tube: 76 mm.
• Weight: 4.35 Kilo.
• Eyelet Size: 45 mm External Diameter x 23 mm Internal Diameter.
• Fitting Method: Bolt Onto The Ground.
• Bolts Supplied; 3 (for concrete ground).
• Size of Bolts: 60 x 10 mm.
• Size of Spanner Required for Bolt Head: 13 mm.

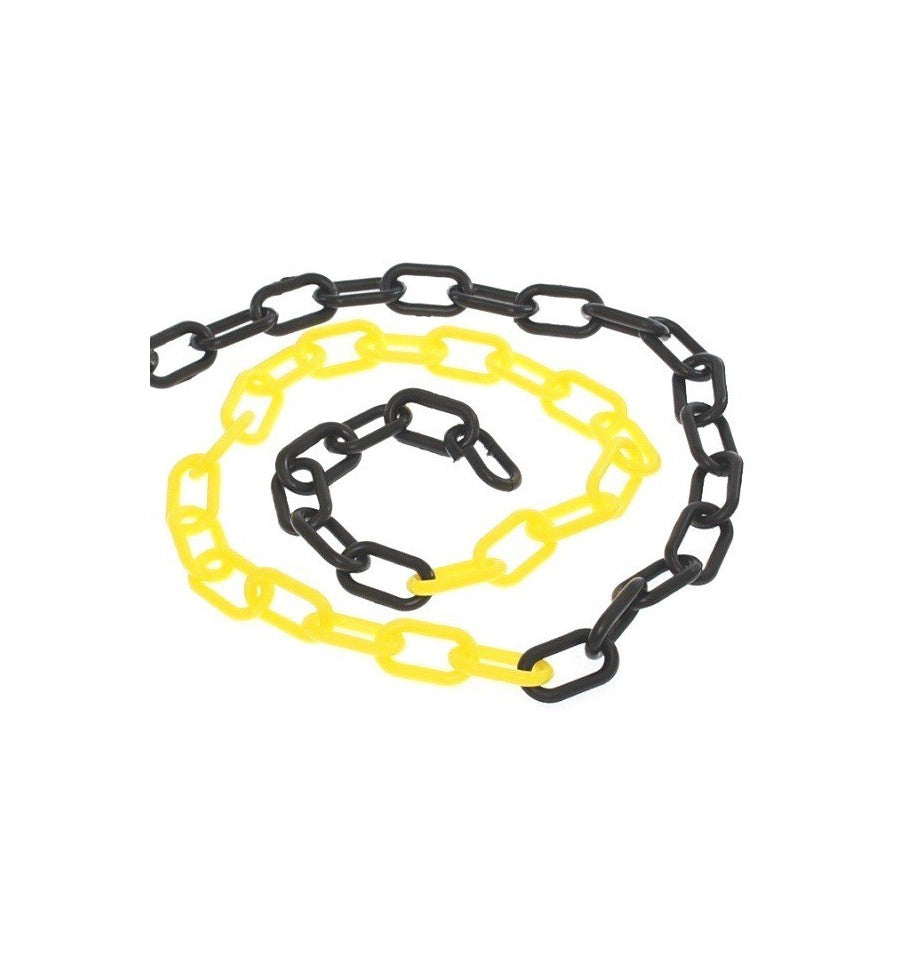

Chain Specification:

• Size of Link: 38 (L) x 22 (W) mm.
• Internal Size of Link 18 (L) x 11 (W) mm.
• Diameter: 5 mm.
• Material: Plastic.
• Colour: Yellow & Black.
• Length: 8 metres (can be increased upon request).

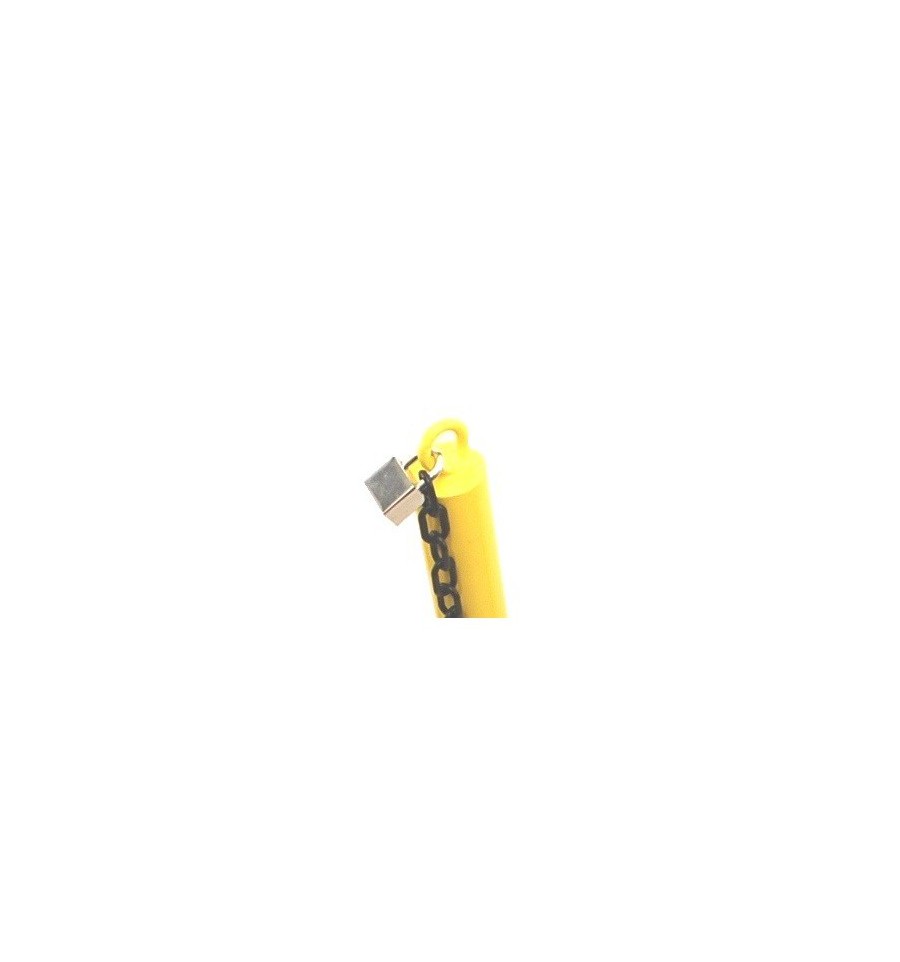

Chain Padlock Specification:

• Size: 40 (W) x 16 (D) x 65 (H) mm.
• Keys: 3.
• Keyed Alike Option (Yes).
